GME XRS-390C Quick Start Manual

Removing the radio

Gently spread tabs
Slide radio from cradle

Wiring

12v DC lead supplied with the unit must be fully connected to the radio unit to
Radio remains ON when ignition switch is OFF
ensure full IP67 ingress protection.
Fuse
RED Antenna socket
To Radio
12V DC and Extension Speaker Harness
BLACK
Ingnition Switch
Chassis
Car battery
Radio turns ON and OFF with ignition switch Radio remains ON when ignition switch is OFF
Fuse
RED Fuse
RED
To Radio To Radio
BLACK BLACK
Ingnition Switch
Chassis Chassis
Car battery
XRS Connect app
™
Radio turns ON and OFF with ignition switch
The GME XRS ™ Connect app is the easy way to customise, update and maintain your
RED Fuse
XRS Connect radio. To download the free XRS Connect app for iOS or Android go to
™ ™
To Radio
the App Store or Google Play and search for 'XRS ™ Connect'.
BLACK

Pairing

Chassis
To pair your Smart Device with your XRS Connect radio, open the XRS
™
go to the 'My Radio' tab and select 'Connections'. Locate your radio in the list and select
'Pair'. Once connected, your app will return to the 'My Radio' screen and the
your radio should change to to show that the Bluetooth pairing is successful. Once
connected select the 'Read from Radio' button to read your radio's settings into the
app. After you have configured your preferences in the app, select 'Write to Radio' to
update your radio with your new settings.
NOTE: The Bluetooth® connection between your smart device and your XRS
radio must be made through the XRS ™ Connect app. You will not be able to pair your
smart device to your XRS ™ Connect radio using the normal
your smart device.
XRS ™ Connect radios are compatible with iSO and Android. A full list of compatible
devices and application software is available at gme.net.au/GETXRS
GME WA RRAN TY A GA INST DEF ECTS
This warranty against defects is given by GME Pty Ltd ACN 000 346 814
(We, us, our or GME). Our contact details are set out in clause 2.7.

1. Consumer Guarantees

1.1 Our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major
failure.
1.2 To the extent we are able, we exclude all other conditions,
Gently spread tabs warranties and obligations which would otherwise be implied.

2. Warranty Against Defects

2.1 This Warranty is in addition to and does not limit, exclude or
restrict your rights under the Competition and Consumer Act 2010
(Australia) or any other mandatory protection laws that may apply.
2.2 We warrant our goods to be free from defects in materials and
workmanship for the warranty period (see warranty table) from
the date of original sale (or another period we agree to in writing).
Subject to our obligations under clause 1.2, we will at our option,
either repair or replace goods which we are satisfied are defective.
We warrant any replacement parts for the remainder of the period
of warranty for the goods into which they are incorporated.
2.3 To the extent permitted by law, our sole liability for breach of a
condition, warranty or other obligation implied by law is limited
(a) in the case of goods we supply, to any one of the following as
we decide –
(i) the replacement of the goods or the supply of equivalent
goods;
(ii) the repair of the goods;
(iii) the cost of repairing the goods or of acquiring equivalent
goods;
(b) in the case of services we supply, to any one of the following as
we decide –
Ingnition Switch
(i) the supplying of the services again;
Car battery
(ii) the cost of having the services supplied again.
2.4 For repairs outside the warranty period, we warrant our repairs
to be free from defects in materials and workmanship for three
months from the date of the original repair. We agree to re-repair or
replace (at our option) any materials or workmanship which we are
satisfied are defective.
2.5 We warrant that we will perform services with reasonable care and
skill and agree to investigate any complaint regarding our services
made in good faith. If we are satisfied that the complaint is justified,
and as our sole liability to you under this warranty (to the extent
Ingnition Switch
permitted at law), we agree to supply those services again at no
Connect app,
Car battery ™
extra charge to you.
Requires Bluetooth® 2.1 (Android 8.0 or later) or Bluetooth® 4.0 (iOS 9.0 or later).
icon on
The Bluetooth® word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by GME is under license. Other
trademarks and trade names are those of their respective owners.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and
other countries. App Store is a service mark of Apple Inc.
™ Connect Google Play and the Google Play logo are trademarks of Google Inc.
Bluetooth settings option on
gme.net.au
GME Pty Ltd
Head Office: 17 Gibbon Road, Winston Hills NSW 2153, Australia. T: +61 (02) 8867 6000
New Zealand: PO Box 58446 Botany, Auckland, 2163, NZ. T: +64 (09) 274 0955 Email: enquiries@gme.net.au
5
Part Number: 311097
2.6 To make a warranty claim you must before the end of the applicable
warranty period (see warranty table), at your own cost, return the
goods you allege are defective.
Before returning any goods you will be required to follow the
available options:
Contact our Customer Support Team on 1300 463 463 or
techsupport@gme.net.au.
A customer support team member will troubleshoot and validate
if your product is faulty. If so, they will email you a product RMA
(Return Material Authorisation).
Products that are authorised to be returned to Standard
Communications must include the following:
RMA form (Return Material Authorisation)
A copy of your proof of purchase
The faulty product, including all accessories
2.7 Send your claim to:
GME Pty Ltd. 17 Gibbon Road, Winston Hills, NSW 2153, Australia.
Telephone: (02) 8867 6000 Fax: (02) 8867 6199.
Email: servadmin@gme.net.au
2.8 If we determine that your goods are defective, we will pay for
the cost of returning the repaired or replaced goods to you, and
reimburse you for your reasonable expenses of sending your
warranty claim to us.

3. What this warranty does not cover

3.1 This warranty will not apply in relation to:
(a) goods modified or altered in any way;
(b) defects and damage caused by use with non Standard
Communications products;
(c) repairs performed other than by our authorised representative;
(d) defects or damage resulting from misuse, accident, impact or
neglect;
(e) goods improperly installed or used in a manner contrary to the
relevant instruction manual; or
(f) goods where the serial number has been removed or made
illegible

4. Warranty period

4.1 We provide the following warranty on GME and Kingray products.
No repair or replacement during the warranty period will renew or
extend the warranty period past the period from original date of
purchase.
PRODUCT TYPE
477 MHz UHF CB mobile radios
Drawing Number: 52111-1
XRS-390C Quick Start Guide
Heavy Duty IP67 UHF CB Radio with GPS
The full Instruction Manual can be downloaded from www.gme.net.au
In the box
•

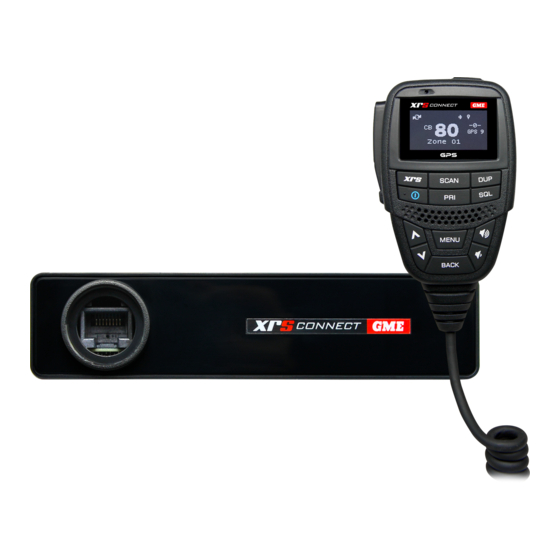

XRS ™ Connect UHF CB Radio (XRS-390C)
•
Professional Grade Speaker Microphone
with GPS (MC668B-IP)
•
Microphone Mounting Bracket (MB206)

Introduction

Your GME XRS-390C 80-channel CB radio is designed and manufactured in Australia and
is the most advanced UHF Citizen Band radio available. It combines the very latest in
electronic hardware and software to produce an extremely compact mobile radio with
innovative features and outstanding specifications and performance. The XRS
speaker microphone with OLED display and front mounted speaker provides clear sound
and total control from the palm of your hand. XRS
with an app to configure and control the radio. Visit gme.net.au/GETXRS for more
information.
I MPOR TAN T I NF OR MATI O N CO N CE R NI N G UH F CB R AD I O
The use of the Citizen Band radio service is licensed in Australia by the Australian
Communications and Media Authority (ACMA) Radio communications (Citizens
WARRANTY PERIOD
Band Radio Station Class Licence and in New Zealand by the Ministry of Economic
5 years Development New Zealand (MED)).
A General User Radio Licence for Citizens Band radio and operation is subject to
conditions contained in those licences.
The class licence for users and equipment operating in the CB/PRS 477 MHz band was
amended in 2011 to include 80 channels. This radio meets the 80 channel standard.
Further information and updates are available from the ACMA at www.acma.gov.au and
the MED, Radio Spectrum Management at: www.rsm.govt.nz

Emergency channels

The ACMA has allocated channels 5/35 for emergency use only. Channel 5 is the primary
Simplex Emergency Channel. Where a Channel 5 repeater is available, you should select
Duplex on CH 5.
NOTE: Channel 35 is the input channel for the Channel 5 repeater therefore Channel 35
should also not be used for anything other than emergency transmissions.
•
IP67 12V DC Power Lead (LE016)
•
Mounting Hardware
™ Connect
Connect are the first UHF radios
™
1
