GX660 Handheld VHF Radio

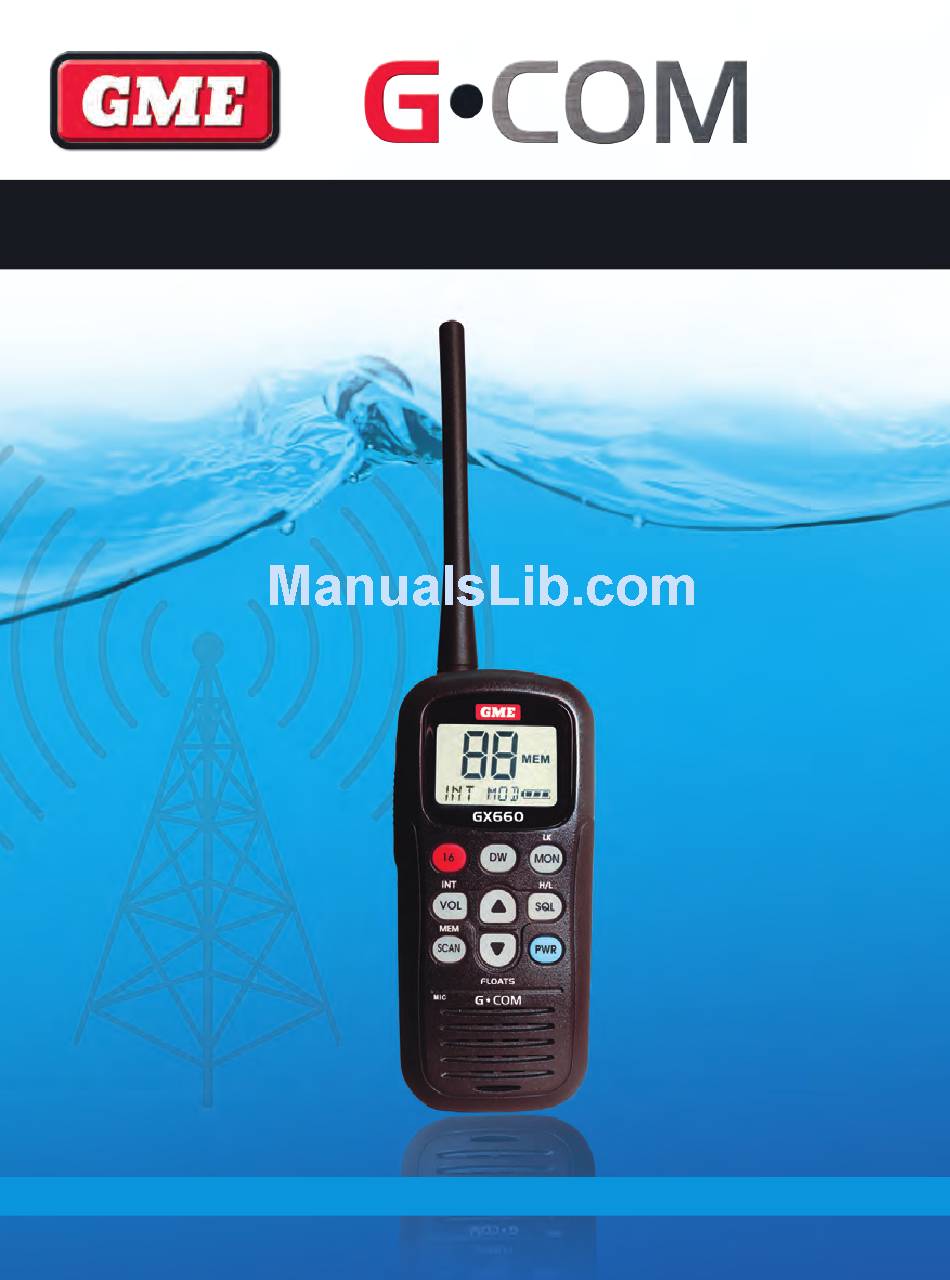

GX660 MARINE HANDHELD RADIO
I N S T R U C T I O N M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GX660 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GME GX660

  • Page 1 GX660 Handheld VHF Radio GX660 MARINE HANDHELD RADIO I N S T R U C T I O N M A N U A L...
  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Memory Mode .
  • Page 3: Introduction

    . Exposing the inside of the temperature decreases . GX660 to water will result in serious damage to the radio . IN CASE OF EMERGENCY ELECTRONIC RECYCLING...
  • Page 4: Important

    . The user of this product is solely responsible for observing safe boating practices . • 12 volt cigarette lighter adapter charger GME DISCLAIMS ALL LIABILITY FOR ANY USE OF THIS • Belt clip PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, •...
  • Page 5: Controls

    CONTROLS SCAN 1 . PWR (Power) key 11 . Antenna 2 . Channel 16 ‘emergency’ key 12 . Belt Clip attachment 3 . SCAN/MEM (Scan/Memory) Key 13 . PTT (Push to Talk) key 4 . DW (Dual Watch) key 14 . MON/LK (Monitor/Lock) key 5 .
  • Page 6: Lcd Display

    LCD DISPLAY Channel Display Displays country mode and other information . Low Power: <1W Channel SCAN enabled Channels in Scan memory Dual Watch is enabled Indicates Duplex frequency TX active RX active Key Lock button enabled Battery Level display icon 3 Levels .
  • Page 7: Power On/Off

    1 second to step up or down through the channels continuously . MODE CHANGES The GX660 can be set to various country modes . The default is INT (International - used in Australia and New Zealand) . To change the country mode Press the VOL/INT Key for 2 seconds while in standby mode to select the next available Country mode .
  • Page 8: Adjusting The Volume Level

    ADJUSTING THE VOLUME LEVEL RECEIVING (RX) Press the VOL/INT key momentarily to select the volume level When receiving, the Busy icon is displayed . setting mode . While in this mode, press the keys to change the volume level . The volume level range is 00 ~ 16 . MONITOR OPERATION Press the MON/LK key to activate the Monitor function .
  • Page 9: Memory Mode

    MEMORY MODE 2 . If only one channel is stored in the scan memory, an error beep will sound and the radio will switch to that To store a channel into the Scan Memory, select the required memory channel . channel then press the SCAN/MEM for 2 seconds .
  • Page 10: Channel 16 Mode

    The Dual Watch function is a 2 channel scan feature where Power keys are still active but all other keys are disabled . the GX660 switches between Channel 16 and any other selected channel . This allows you to monitor a working or club channel whilst still being able to receive important broadcasts on Channel 16 .
  • Page 11: Adjusting The Squelch Level

    GX660 battery pack in approximately 12 hours . The GX660 radio can be used with the charger attached or removed . The GX660 will not be damaged by extended charge times . When the radio is connected to the charger and power is present, the LED on the outside of the charger will be red .
  • Page 12: Int Frequency Chart

    INT FREQUENCY CHART Ch No. Rx Frequency (MHz) Tx Frequency (MHz) Ch No. Rx Frequency (MHz) Tx Frequency (MHz) 160 .6500 156 .0500 160 .6250 156 .0250 160 .7000 156 .1000 160 .6750 156 .0750 160 .7500 156 .1500 160 .7250 156 .1250 160 .8000 156 .2000...
  • Page 13: Usa Frequency Chart

    USA FREQUENCY CHART Ch No. Rx Frequency (MHz) Tx Frequency (MHz) Ch No. Rx Frequency (MHz) Tx Frequency (MHz) 156 .050 156 .050 156 .075 156 .075 156 .150 156 .150 156 .175 156 .175 156 .250 156 .250 156 .225 156 .225 156 .300 156 .300...
  • Page 14: Canada Frequency Chart

    CANADA FREQUENCY CHART Ch No. Rx Frequency (MHz) Tx Frequency (MHz) Ch No. Rx Frequency (MHz) Tx Frequency (MHz) 160 .650 156 .050 157 .400 162 .000 160 .700 156 .100 156 .025 160 .625 160 .750 156 .150 156 .075 156 .075 156 .200 156 .200...
  • Page 15: Uk & Int Frequency Chart

    UK & INT FREQUENCY CHART Ch No. Rx Frequency (MHz) Tx Frequency (MHz) Ch No. Rx Frequency (MHz) Tx Frequency (MHz) 160 .6500 156 .0500 160 .7250 156 .1250 160 .7000 156 .1000 160 .7750 156 .1750 160 .7500 156 .1500 160 .8250 156 .2250 160 .8000...
  • Page 16: Scandinavia & Int Frequency Chart

    SCANDINAVIA & INT FREQUENCY CHART Ch No. Rx Frequency (MHz) Tx Frequency (MHz) Ch No. Rx Frequency (MHz) Tx Frequency (MHz) 160 .6500 156 .0500 160 .8250 156 .2250 160 .7000 156 .1000 160 .8750 156 .2750 160 .7500 156 .1500 160 .9250 156 .3250 160 .8000...
  • Page 17: Hungary & Int Frequency Chart

    HUNGARY & INT FREQUENCY CHART Ch No. Rx Frequency (MHz) Tx Frequency (MHz) Ch No. Rx Frequency (MHz) Tx Frequency (MHz) 160 .6500 156 .0500 160 .7250 156 .1250 160 .7000 156 .1000 160 .7750 156 .1750 160 .7500 156 .1500 160 .8250 156 .2250 160 .8000...
  • Page 18: Specifications

    SPECIFICATIONS ATTENTION GENERAL The battery for your GX660 has been factory installed . Caution should be exercised opening the battery compartment as the Channel Spacing: 25 kHz water tight integrity of the radio could be compromised if not Supply Voltage: 7 .4 V DC 1400 mAh Li-Ion properly assembled .
  • Page 19: Against Defects

    Communications Pty Ltd ACN 000 346 814 (We, us, our or satisfied are defective . GME) . Our contact details are set out in clause 2 .7 . 2 .5 We warrant that we will perform services with reasonable care and skill and agree to investigate any complaint 1.
  • Page 20 Part No. 310505 Drawing. No.: 45243-3 IN STRUC TIO N MAN UA L G•COM– GX 66 0...
