r Push [CH Up] or [CH Down] to set the selected item.
12HR 03:00PM
YMD 08-04-01
MUTE CLOCK
t Push [Clock] to set.
• The next item blinks.
12HR 03:00PM
YMD 08-04-01
MUTE CLOCK
y Repeat steps e to t to set items.
u After setting, push and hold [Clock] for 1 sec. to program.
• Return to the time and date setting mode.
i Push [Clock] to return to the stand-by mode.
TX
TX Low BAT T 1
ZONE
TX Low BAT T 2
F/S S c a n
B u sy
ZONE
Low BAT T1
Low BAT T2
Inh & B la n k C H
C all L E D O N
C all L E D Bl ink

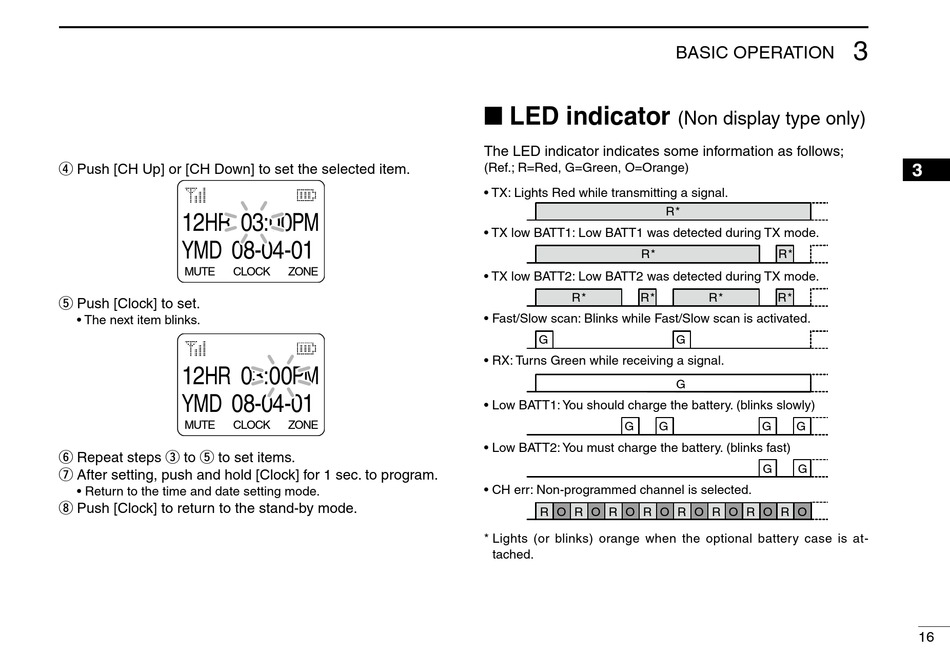

■ LED indicator
The LED indicator indicates some information as follows;
(Ref.; R=Red, G=Green, O=Orange)
• TX: Lights Red while transmitting a signal.
• TX low BATT1: Low BATT1 was detected during TX mode.
R*
• TX low BATT2: Low BATT2 was detected during TX mode.
R* R*
• Fast/Slow scan: Blinks while Fast/Slow scan is activated.
G
• RX: Turns Green while receiving a signal.
• Low BATT1: You should charge the battery. (blinks slowly)
G G
• Low BATT2: You must charge the battery. (blinks fast)
• CH err: Non-programmed channel is selected.
R O R O R O R O R O R O R O R O
* Lights (or blinks) orange when the optional battery case is at-
tached.
O
O O
