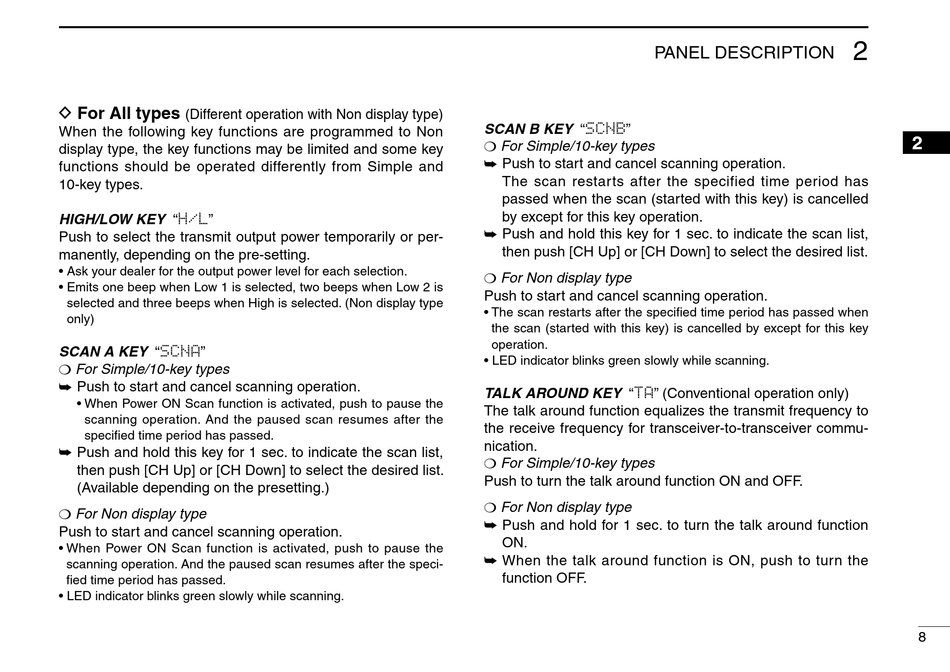

D For All types
(Different operation with Non display type)
When the following key functions are programmed to Non
display type, the key functions may be limited and some key
functions should be operated differently from Simple and
10-key types.
HIGH/LOW KEY "H/L"
Push to select the transmit output power temporarily or per-
manently, depending on the pre-setting.
• Ask your dealer for the output power level for each selection.
• Emits one beep when Low 1 is selected, two beeps when Low 2 is
selected and three beeps when High is selected. (Non display type
only)
SCAN A KEY "SCNA"
❍ For Simple/10-key types
➥ Push to start and cancel scanning operation.
• When Power ON Scan function is activated, push to pause the
scanning operation. And the paused scan resumes after the
specified time period has passed.
➥ Push and hold this key for 1 sec. to indicate the scan list,
then push [CH Up] or [CH Down] to select the desired list.
(Available depending on the presetting.)
❍ For Non display type
Push to start and cancel scanning operation.
• When Power ON Scan function is activated, push to pause the
scanning operation. And the paused scan resumes after the speci-
fied time period has passed.
• LED indicator blinks green slowly while scanning.
PANEL DESCRIPTION
SCAN B KEY "SCNB"
❍ For Simple/10-key types
➥ Push to start and cancel scanning operation.
The scan restarts after the specified time period has
passed when the scan (started with this key) is cancelled
by except for this key operation.
➥ Push and hold this key for 1 sec. to indicate the scan list,
then push [CH Up] or [CH Down] to select the desired list.
❍ For Non display type
Push to start and cancel scanning operation.
• The scan restarts after the specified time period has passed when
the scan (started with this key) is cancelled by except for this key
operation.
• LED indicator blinks green slowly while scanning.
TALK AROUND KEY "TA" (Conventional operation only)
The talk around function equalizes the transmit frequency to
the receive frequency for transceiver-to-transceiver commu-
nication.
❍ For Simple/10-key types
Push to turn the talk around function ON and OFF.
❍ For Non display type
➥ Push and hold for 1 sec. to turn the talk around function
ON.
➥ When the talk around function is ON, push to turn the
function OFF.
