InnoMedia
MTA 5531 IP VideoPhone
User Manual
[v1.0]

Advertisement

loading
Need help?

Need help?

Do you have a question about the MTA 5531 and is the answer not in the manual?

Questions and answers

Summary of Contents for InnoMedia MTA 5531

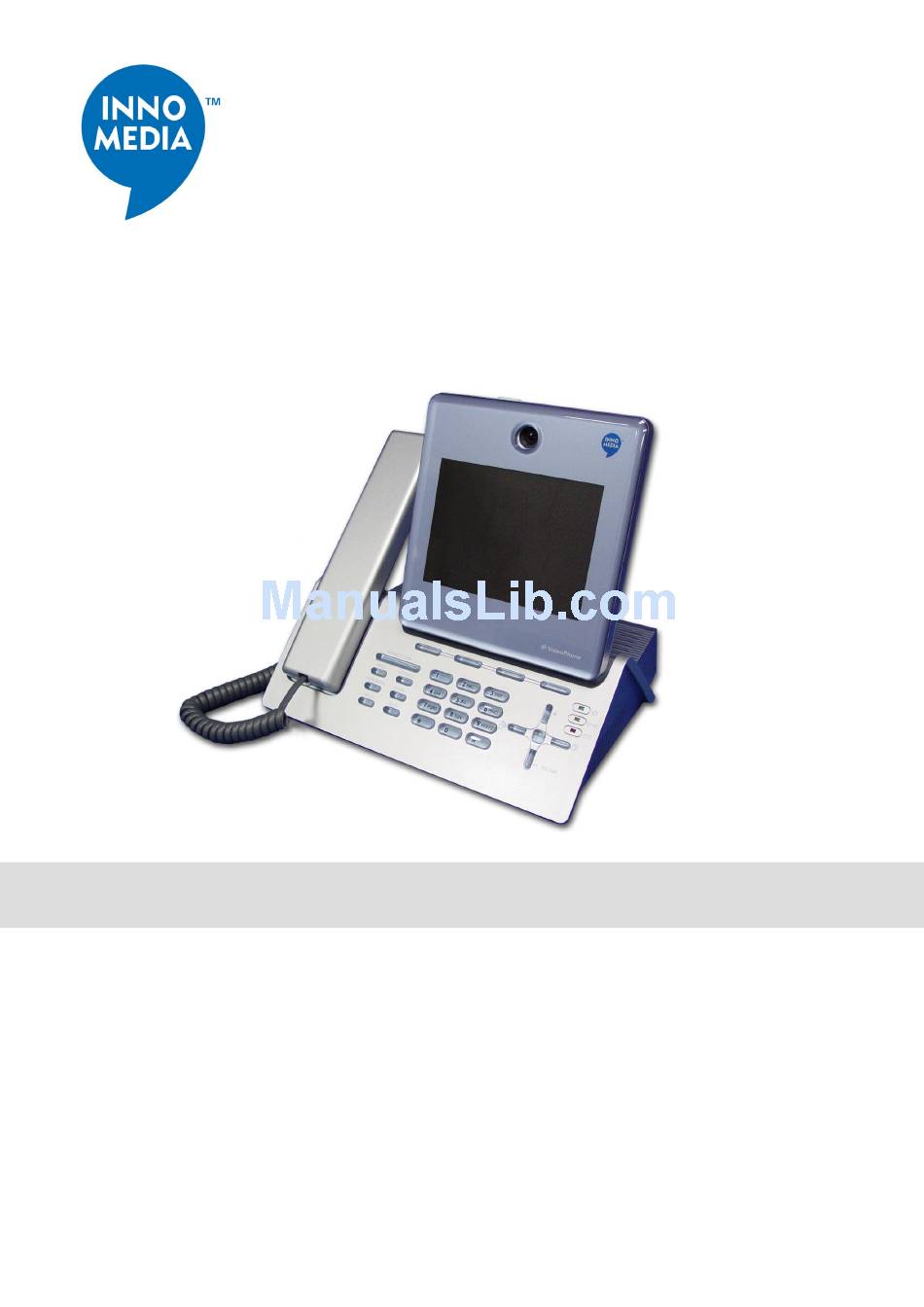

  • Page 1 InnoMedia MTA 5531 IP VideoPhone User Manual [v1.0]...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: All the safety and operating instructions should be read before the •...
  • Page 3 Up-close and personal – bringing your loved ones up-close on the phone and let your true expression be seen. MTA 5531 IP VideoPhone gives you a direct video line to derive pleasure from the warm experience of a face-to-face...
  • Page 4 You can find Contacts, Settings, Tone Volume, Info, Application, Connect/Disconnect and many more options available in the menu. † The VideoPhone models in reference are MTA 5531, MTA 5410 and MTA 3368 IP VideoPhone...
  • Page 5: Usage Environment

    I. Usage Environment Design to suit both residential and enterprise environment, MTA 5531 IP VideoPhone achieves best performance when it is being deployed in a broadband network with the following conditions: Network that supports 10/100Base Tx Interface Broadband Internet connections with minimum 64kbps upload and...
  • Page 6 II. MTA 5531 IP VideoPhone Feature Figure 2.1 MTA 5531 IPVP keyboard panel Feature in reference is applicable to SIP SW only ~ Feature in reference requires check on availability Number Components Function Description < SPEAKER > To activate speakerphone mode. Press this...
  • Page 7 Number Components Function Description functions (Remove, Edit Name, Edit Tel) < FLASH > ~ Enable line toggling during call waiting between 2 concurrent calls < MESSAGE > ~ Voicemail function enables incoming PSTN call only to be diverted to VideoPhone’s Answering Machine.
  • Page 8 Number Components Function Description Calls mode. To dial out the selected numbers and Voice establish a voice session via broadband connection. Voice Call is accessible in Direct Dial, Phonebook, Received calls Dialled Calls mode. < Number keypad > To dial out the remote device contact number.
  • Page 9 Number Components Function Description Details, Add phone number from the list to Phonebook and standard Call list management functions Right scroll function < SELECT > Located at the middle button of the navigation key pad Press once to make selection or activate setting changes Press again to store configured setting Lighted...
  • Page 10: Installation

    III. Installation Below is an illustration of the back panel of the MTA 5531 IP VideoPhone. Figure 3.1 MTA 5531 IP VideoPhone back panel On the back of your MTA 5531 IP VideoPhone, Connect from the WAN port to the broadband modem (if any) by using a...
  • Page 11 IV. Configuration The following will explain the user settings for 3 different types of Broadband service connection: DSL users with PPPoE login DSL users without login Cable modem users...
  • Page 12 Re-enter the PPPoE password again, follow by SELECT Done store the PPPoE password and to continue with other settings configuration Exit Press to return to Settings page NAT Settings Remarks: Refer to MTA 5531 configuration to allow PC to work behind VideoPhone NAT mode...
  • Page 13 A2. DSL users without login By default, there is no additional setting and the MTA 5531 IP VideoPhone is ready to make calls. NAT Settings Remarks: Refer to MTA 5531 configuration to allow PC to work behind VideoPhone NAT mode If user is using fixed IP address, please refer to *Fixed IP set-up before making any calls.
  • Page 14 *Special case: Fixed IP set-up MENU On the default self-view mode, press button to access the Menu page Navigate to Settings icon and press button open SELECT Settings option Phone Settings Scroll cursor to select Scroll cursor with buttons to IP address + + + + −...
  • Page 15 MTA 5531 IP VideoPhone NAT Settings To enable the NAT Settings on MTA 5531 IP VideoPhone On the default self-view mode, press button to access MENU the Menu page Navigate to Settings icon and press button open SELECT Settings option...
  • Page 16 When your MTA 5531 IP VideoPhone NAT and DHCP modes are switched OFF, to share your videophone and PC with a single network connection: Disconnect MTA 5531 IP VideoPhone If user wants to disconnect the Internet connection on the MTA 5531,...
  • Page 17 B. After set-up When all the above settings are correctly configured, MTA 5531 IP VideoPhone will perform configuration work and reboot automatically, and will display the following messages on the LCD < Initializing network, please wait… > < Profile updating, please wait… >...
  • Page 18: Making Calls

    Dial <IDD prefix> <Country code> <Area code> <Phone number> and Voice † The VideoPhone models in reference are MTA 5531, MTA 5410 and MTA 3368 IP VideoPhone There are 3 simple ways to call another IP VideoPhone † , Mobile/PSTN phone: Method 1 - Direct Dial †...
  • Page 19 using the or using the SEARCH function + + + + − − − − [Entering the name using the number pad Once the name of the person whom you wish to call is selected, select the correct calling mode to start dialing Video Voice The message <...
  • Page 20: Receiving Calls

    VI. Receiving Calls A. Manual answering using handset or speakerphone When there is an incoming call, the MTA 5531 IP VideoPhone will ring and the Network indicator (red LED) will start flashing. At the same time, the LCD screen will display the contact number of the caller. To answer the call,...
  • Page 21 C. During calling session Once the call is successfully established with another MTA 5531 IP VideoPhone, user will immediately see the image of the person you are talking to. There are some features that user can tune or adjust to optimise...
  • Page 22: Other Functions

    VII. Other Functions MTA 5531 IP VideoPhone – One Connection Able to connect with TV set for enlarging video size Simultaneous usage of VideoPhone & Internet VIII. Other Functions Vfone – One Connection Able to connect with digital camcorder, video recorder or...
  • Page 23 Frequently Asked Questions MTA 5531 IP VideoPhone displays a message “Searching …” on the bottom right hand corner of the LCD screen, and the LED indicator turns red. There are some possibilities: 1. On the VideoPhone, go to “About” page and ensure the user can see a value in the Phone number and IP address.
  • Page 24 MTA 5531 VideoPhone displays message “Number Unavailable” on the LCD screen when trying to make an outgoing call. The VideoPhone of the called party is not reachable temporarily due to network outage, or it may be switched off. Try calling the remote party at a later time.
  • Page 25 Appendix A: [SIP] Navigation Menu The following chart is an overview of the SIP SW Navigation Menu Contacts Settings Tones & Volumes Phonebook Call Settings Tones Selection Video Auto answer Telephone Ring Tone Voice AutoAns password VCall Ring Tone PSTN Country Search Tones Volume...
  • Page 26 Appendix B: Phone Settings Fields Remarks User name A generic name that is assigned to your MTA 5531 IP VideoPhone PPPoE Press to turn ON/OFF feature SELECT Once the feature is turn ON, entered the assigned settings for PPPoE user and PPPoE password...
  • Page 27 Video source Select Internal to enable the embedded camera in VideoPhone or External for other external camera source Language Select English or Simplified Chinese for the preferred language display in Menu and LCD messages Time Configure the time and date on the VideoPhone Call Settings Fields Remarks...
  • Page 28 DHCP~ Turn ON for the VideoPhone to assign a dynamic IP settings to PC LAN devices (e.g. PC) LAN IP Start~ The first IP address within the range of LAN setting LAN IP End~ The last IP address within the range of LAN setting IP Lease Time~ The duration for LAN devices to assume the LAN settings assigned by the VideoPhone...
  • Page 29: Character Map

    Msg duration ’ Assign the duration for voice messages recorded ^ Compulsory settings ~ Require NAT turn ON in MTA 5531 IP VideoPhone ↵ Require Auto Answer turn ON in MTA 5531 IP VideoPhone ’ Require Voicemail turn ON in MTA 5531 IP VideoPhone...
  • Page 30 We recommend the installation of an AC surge arrester in the AC outlet to which this equipment is connected. Telephone companies report that electrical surges, typically lighting transients, are very destructive to customer terminal equipment connected to AC power sources. Attn: Customer Service Dept InnoMedia, Inc. 186 Topaz Street Milpitas, CA 95035-5429 Tel: (408) 432-5400 Fax: (408) 432-5404 II.
  • Page 31 4. Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE InnoMedia, Inc. 186 Topaz Street Milpitas, CA 95035-5429 Tel: (408) 432-5400...
