InnoMedia MTA 5410 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
InnoMedia

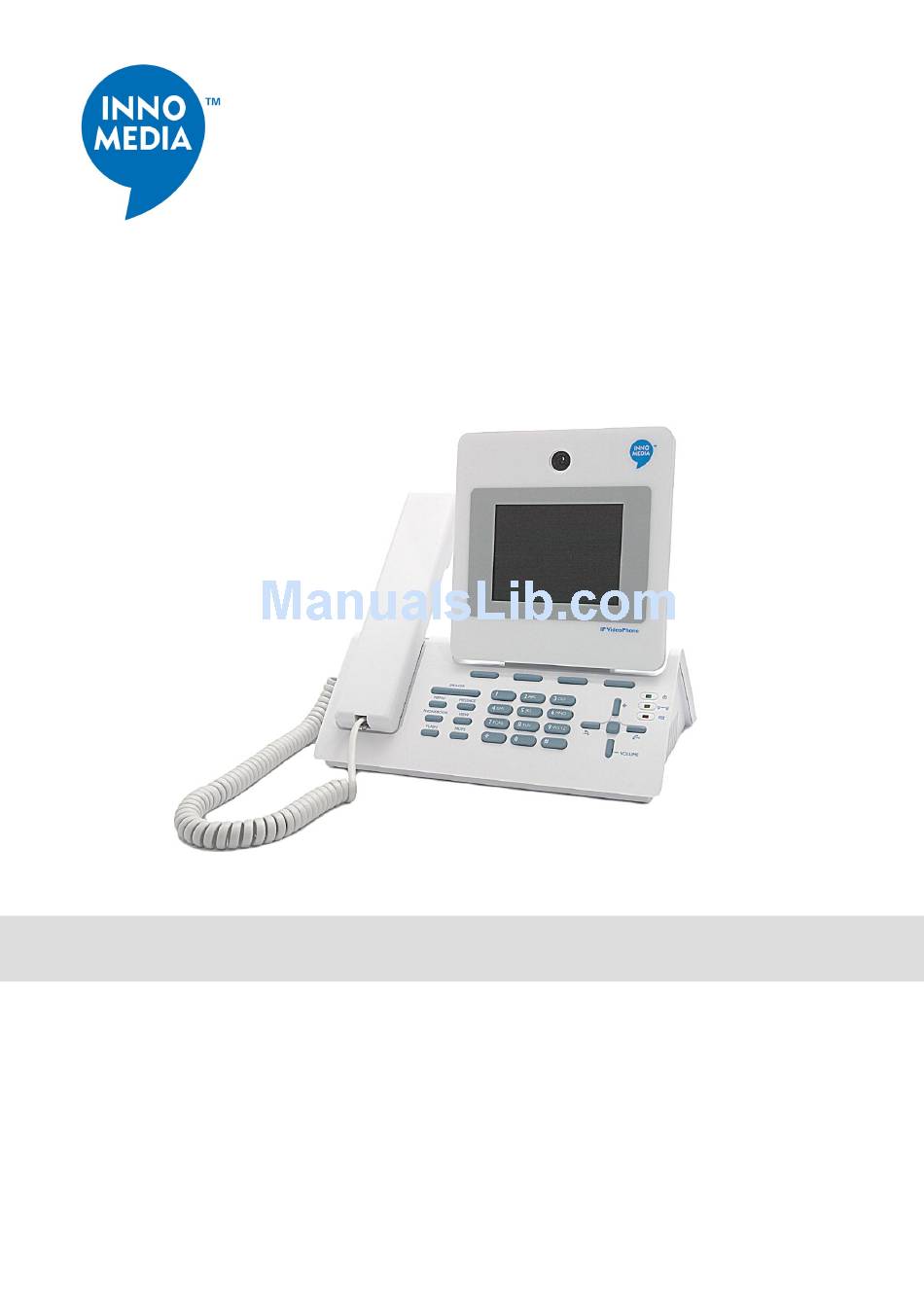

MTA 5410 IP VideoPhone
User Manual
[v 1.0]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTA 5410 and is the answer not in the manual?

Questions and answers

Related Manuals for InnoMedia MTA 5410

Summary of Contents for InnoMedia MTA 5410

  • Page 1 InnoMedia MTA 5410 IP VideoPhone User Manual [v 1.0]...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: All the safety and operating instructions should be read before the •...
  • Page 3 You can find Contacts, Settings, Tones & Volume, Info, and Connect/Disconnect available in the menu. † The VideoPhone models in reference are MTA 5531, MTA 5410 and MTA 3368 IP VideoPhone...

  • Page 4: Usage Environment

    I. Usage Environment Design to suit both residential and enterprise environment, MTA 5410 IP VideoPhone achieves best performance when it is being deployed in a broadband network with the following conditions: Network that supports 10/100Base Tx Interface Broadband Internet connections with minimum 64kbps upload and...
  • Page 5 II. MTA 5410 IP VideoPhone Feature Figure 2.1 MTA 5410 IPVP keyboard panel Feature in reference is applicable to SIP SW only Feature in reference is applicable to H.323 SW only ~ Feature in reference requires check on availability Number...
  • Page 6 Number Components Function Description Manage - Standard phonebook editing functions (Remove, Edit Name, Edit Tel) [H.323] To store and provide reference functions to phone numbers and respective names. Accompanying features include, Search - specific stored numbers – Create and store new phone numbers Options - Standard phonebook editing...
  • Page 7 Number Components Function Description only applicable to Video and Voice Calls < Function keys > 4 function keys located at the top of the keyboard panel To activate the corresponding functions as shown in the menu bar displayed at the bottom of the LCD screen To dial out the selected numbers and Video establish a videoconference session.
  • Page 8 Number Components Function Description Provide a list of incoming calls to < Received Calls > VideoPhone. < Incoming Calls > Other features available include Call Details, Add phone number from the list to Phone Book and standard Call list management functions Left scroll function Provide a list of outgoing calls from <...
  • Page 9 Number Components Function Description LCD screen 4 inch TFT colour LCD mounted on a 90 degrees angle adjustable panel Contrast control To adjust the contrast of the video image. Brightness control To adjust the brightness of the video image.

  • Page 10: Installation

    III. Installation Below is an illustration of the back panel of the MTA 5410 IP VideoPhone. Figure 3.1 MTA 5410 IP VideoPhone back panel On the back of your MTA 5410 IP VideoPhone, Connect from the WAN port to the broadband modem (if any) by using a RJ45 Ethernet cable Plug the power adapter^ into the 12VDC 1.5A power connector...
  • Page 11 IV. Configuration The following will explain the user settings for 3 different types of Broadband service connection: DSL users with PPPoE login DSL users without login Cable modem users...
  • Page 12 Re-enter the PPPoE password again, follow by Done store the PPPoE password and to continue with other settings configuration Press to return to Settings page Exit NAT Settings Remarks: Refer to MTA 5410 configuration to allow PC to work behind VideoPhone NAT mode...
  • Page 13 A2. DSL users without login By default, there is no additional setting and the MTA 5410 IP VideoPhone is ready to make calls. NAT Settings Remarks: Refer to MTA 5410 configuration to allow PC to work behind VideoPhone NAT mode If user is using fixed IP address, please refer to *Fixed IP set-up before making any calls.
  • Page 14 *Special case: Fixed IP set-up On the default self-view mode, press button to access MENU the Menu page SELECT Navigate to Settings icon and press button to open Settings option Phone Settings Scroll cursor to select + + + + −...
  • Page 15 MTA 5410 IP VideoPhone NAT Settings To enable the NAT Settings on MTA 5410 IP VideoPhone MENU On the default self-view mode, press button to access the Menu page Navigate to Settings icon and press button to open SELECT Settings option...
  • Page 16 When your MTA 5410 IP VideoPhone NAT and DHCP modes are switched OFF, to share your videophone and PC with a single network connection: Disconnect MTA 5410 IP VideoPhone If user wants to disconnect the Internet connection on the MTA 5410,...
  • Page 17 B. After set-up When all the above settings are correctly configured, MTA 5410 IP VideoPhone will perform configuration work and reboot automatically, and will display the following messages on the LCD < Initializing network, please wait… > < Profile updating, please wait… >...

  • Page 18: Making Calls

    Dial < IDD prefix> <Country code> <Area code> <Phone number> and Voice † The VideoPhone models in reference are MTA 5531, MTA 5410 and MTA 3368 IP VideoPhone There are 3 simple ways to call another IP VideoPhone † , Mobile/PSTN phone:...
  • Page 19 Method 2 - Phonebook PHONEBOOK Press button to access the MTA 5410 Phonebook. Either scroll through the list to the name of the person you wish to call using the or using the SEARCH function + + + + − − − −...

  • Page 20: Receiving Calls

    VI. Receiving Calls A. Manual answering using handset or speakerphone When there is an incoming call, the MTA 5410 IP VideoPhone will ring and the Network indicator (red LED) will start flashing. At the same time, the LCD screen will display the contact number of the caller. To answer the call, simply pick up the handset or press .
  • Page 21 C. During calling session Once the call is successfully established with another MTA 5410 IP VideoPhone, user will immediately see the image of the person you are talking to. There are some features that user can tune or adjust to optimise...

  • Page 22: Other Functions

    VII. Other Functions MTA 5410 IP VideoPhone – One Connection Able to connect with TV set for enlarging video size VIII. Other Functions Simultaneous usage of VideoPhone & Internet MTA 5410 – One Connection Able to connect with digital camcorder, video recorder or...
  • Page 23 Frequently Asked Questions MTA 5410 IP VideoPhone displays a message “Searching …” on the bottom right hand corner of the LCD screen, and the LED indicator turns red. There are some possibilities: 1. On the VideoPhone, go to “About” page and ensure the user can see a value in the Phone number and IP address.
  • Page 24 MTA 5410 VideoPhone displays message “Number Unavailable” on the LCD screen when trying to make an outgoing call. The VideoPhone of the called party is not reachable temporarily due to network outage, or it may be switched off. Try calling the remote party at a later time.
  • Page 25 Appendix A: [SIP] Navigation Menu The following chart is an overview of the SIP SW Navigation Menu Contacts Settings Tones & Volumes Phonebook Call Settings Tones Selection Video Auto answer Telephone Ring Tone Voice AutoAns password VCall RingTone Search Phone Settings Options Tones Volume User name...
  • Page 26 Appendix B: [H.323] Navigation Menu The following chart is an overview of the H.323 SW Navigation Menu Contacts Settings Tones & Volumes Phonebook Call Settings Tone Selection Search Auto answer Telephone Ring Tone Options VCall RingTone Remove Phone Settings Edit Name IP address Tones Volume Edit Tel...
  • Page 27 Appendix C: Phone Settings Fields Remarks User name A generic name that is assigned to your MTA 5410 PPPoE Press to turn ON/OFF feature SELECT Once the feature is turn ON, entered the assigned settings for PPPoE user and PPPoE password...
  • Page 28 Fields Remarks VideoPhone or External for other external camera source Language Select English or Simplified Chinese for the preferred language display in Menu and LCD messages Time Configure the time and date on the VideoPhone Call Settings Fields Remarks Auto answer Select 1 ring, 2 rings, 3 rings, 4 rings or 5 rings.
  • Page 29 The duration for LAN devices to assume the LAN settings assigned by the VideoPhone ^ Compulsory settings ~ Require NAT turn ON in MTA 5410 IP VideoPhone ↵ Require Auto Answer turn ON in MTA 5410 IP VideoPhone Feature in reference is applicable to SIP SW only Feature in reference is applicable to H.323 SW only...

  • Page 30: Fcc Part 68 Information

    We recommend the installation of an AC surge arrester in the AC outlet to which this equipment is connected. Telephone companies report that electrical surges, typically lighting transients, are very destructive to customer terminal equipment connected to AC power sources. Attn: Customer Service Dept InnoMedia, Inc. 186 Topaz Street Milpitas, CA 95035-5429 Tel: (408) 432-5400 Fax: (408) 432-5404 II.
  • Page 31 4. Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE InnoMedia, Inc. 186 Topaz Street Milpitas, CA 95035-5429 Tel: (408) 432-5400...
