InnoMedia MTA 6328-4 Quick Install Manual
  1. Manuals
  2. Brands
  3. InnoMedia Manuals
  4. IP Phone
  5. MTA 6328-4
  6. Quick install manual

InnoMedia MTA 6328-4 Quick Install Manual

4 voice port ta
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

InnoMedia
MTA 6328-4
Quick Install Guide
www.innomedia.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTA 6328-4 and is the answer not in the manual?

Questions and answers

Related Manuals for InnoMedia MTA 6328-4

Summary of Contents for InnoMedia MTA 6328-4

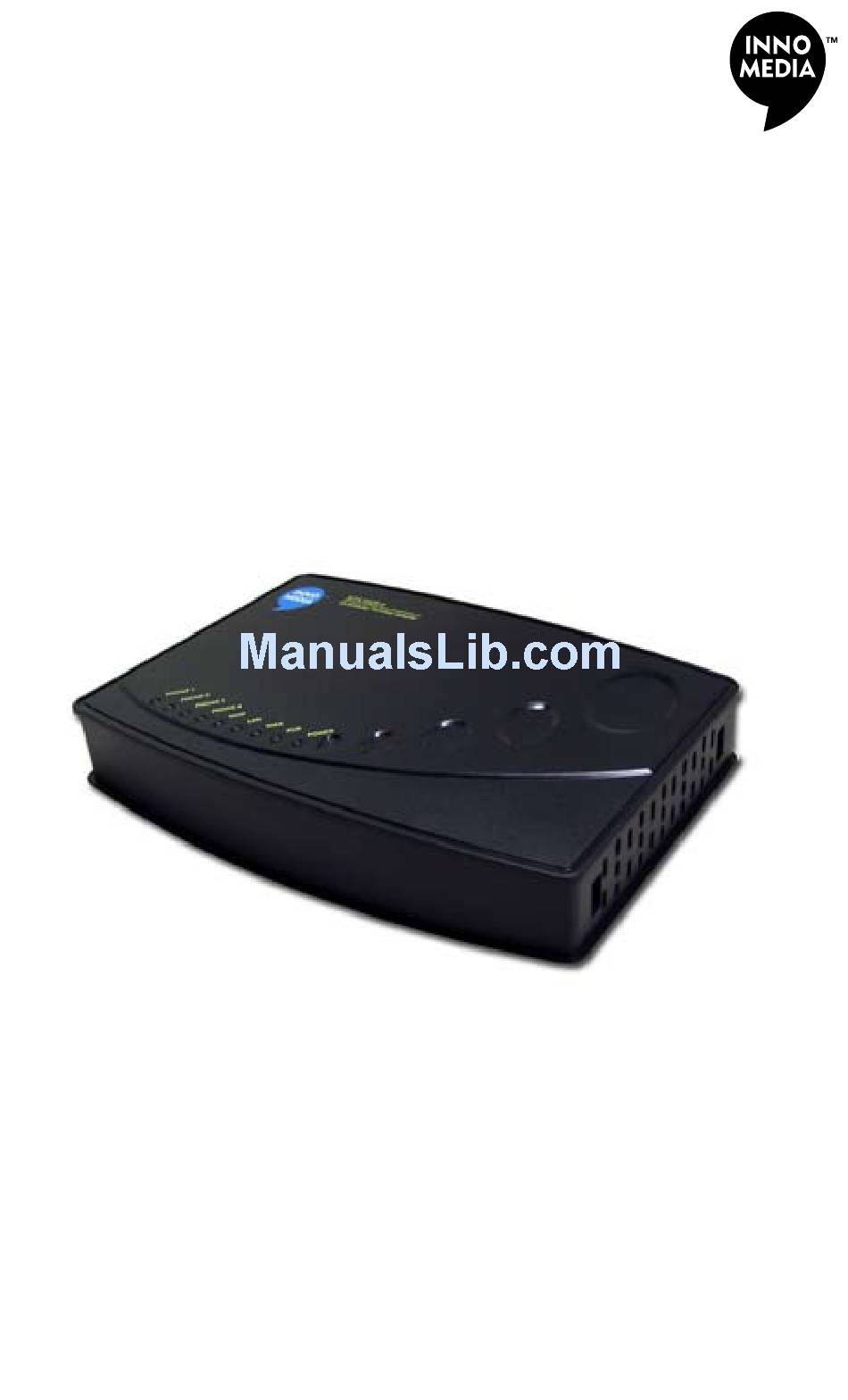

  • Page 1 InnoMedia MTA 6328-4 Quick Install Guide www.innomedia.com...

  • Page 2: Package Contents

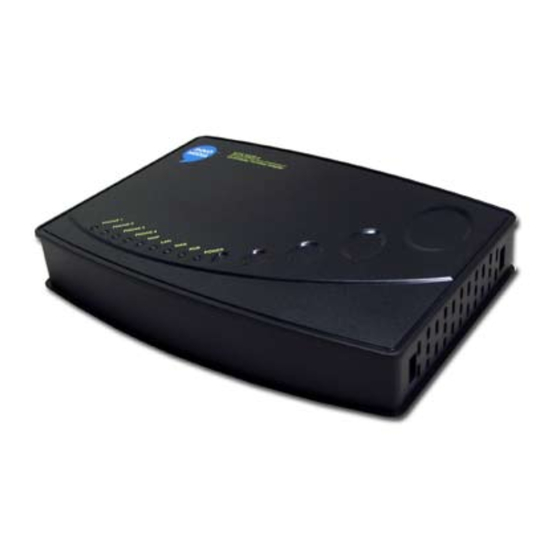

    The InnoMedia MTA 6328-4 Multimedia Terminal Adapter is a device that provides standard telephony service over any broadband Ethernet network. Designed for ease of installation and use, MTA 6328-4 will allow you to place and receive regular telephone and fax calls.

  • Page 3: Installation

    Installation Figure 1 1. Connect the broadband Ethernet cable to the “WAN” connector. 2. Connect up to 4 telephones to MTA’s “Phone” connectors. 3. Optionally, connect your PC to “LAN” port using included RJ-45 cable. 4. Connect included AC power cable to the electrical outlet and its cable to the MTA’s “12V DC”...

  • Page 4: Wall-Mounting Instructions

    Wall-Mounting Instructions Optionally, you may choose to mount your MTA on the wall. 1. Drill two holes on the wall 16.7 cm apart. 2. Use a screwdriver to install one #6 metal screw in each hole. Leave the screw heads 1/4 to 3/8 inch away from the wall. 3.

  • Page 5: Troubleshooting

    Troubleshooting Problem: Telephone has no dial tone Solution: 1. Ensure that all cables (power, Ethernet, telephone) are properly connect- ed to the MTA. Ensure that MTA’s AC power adapter is plugged in, and “PWR” indicator lights are ON (see Front Cover Picture). 2.

  • Page 6: Appendix A. Led Status Summary

    Appendix A. LED Status Summary LED / Control Blinking State MTA 6328-4 State Steady Green Device power is on Device power is off Blinking Red The device failed to download a configuration or an image file Blinking Amber The device is actively downloading a configuration file or a...
  • Page 7 © 2011 InnoMedia Incorporated. All rights reserved. InnoMedia and the InnoMedia logo are trademarks of InnoMedia Incorporated. All other brand and product names may be trademarks of their respective companies. v2.2 04/11...
