COP-USA DVR H.264 E4 User Manual

Network embeded dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

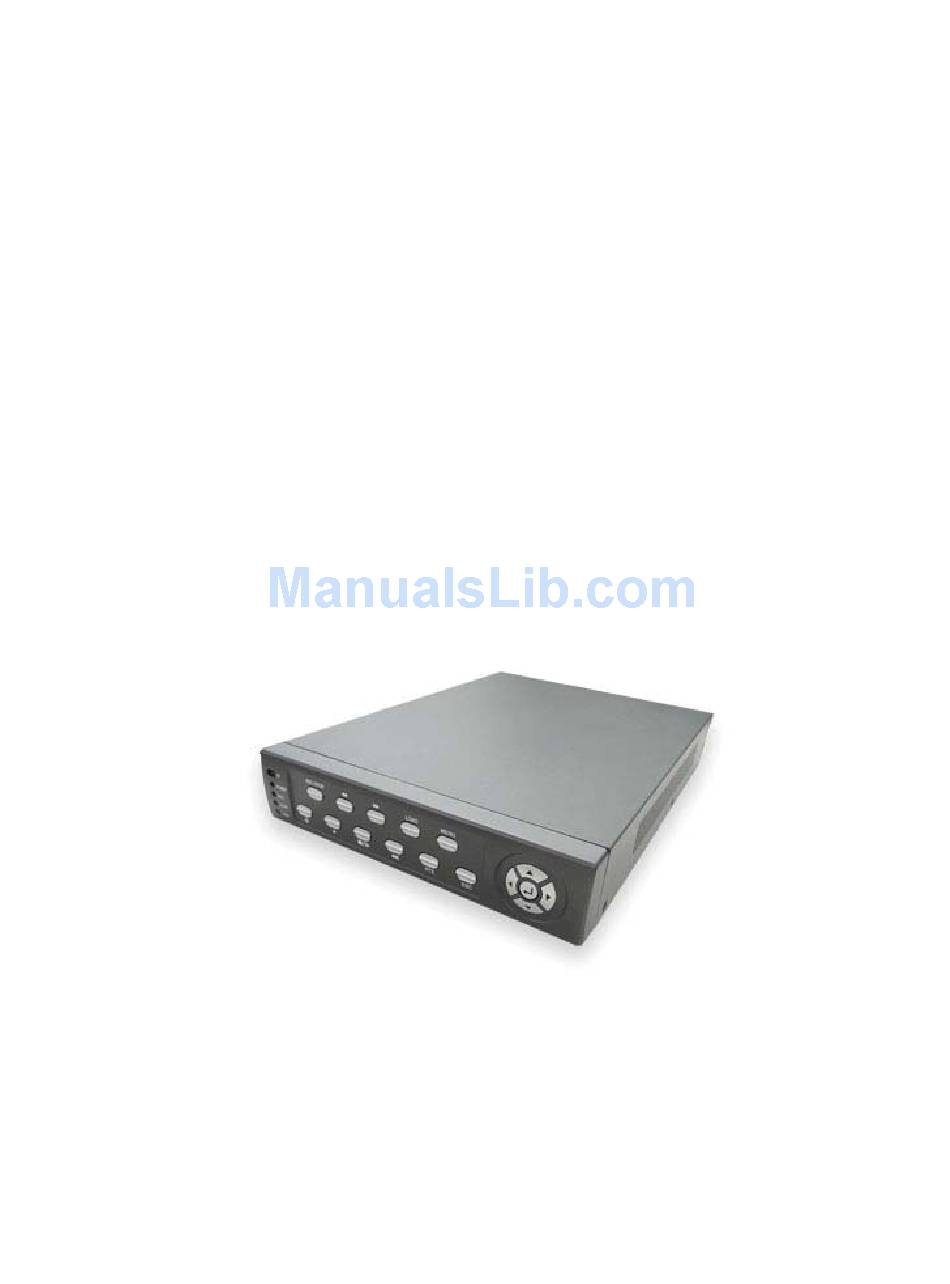

H.264 NETWORK Embeded
DVR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVR H.264 E4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for COP-USA DVR H.264 E4

Summary of Contents for COP-USA DVR H.264 E4

  • Page 1 H.264 NETWORK Embeded USER MANUAL...

  • Page 2: Table Of Contents

    CONTENT 1 INTRODUCTION ........................3 MAIN FEATURE ......................3 PRODUCT FEATURES ....................3 1.2.1 PARAMETER....................... 3 1.2.2 BASIC WORKING PARAMETER ................ 5 1.2.3 ENTIRONMENT ADAPTABILITY ................ 5 2 OPERATION MANUAL ......................6 REMOTE KEY INSTRUCTION OPTIONAL ............... 6 2.1.1 REMOTE CONTROL ................... 6 MOUSE OPERATION .....................

  • Page 3: Introduction

    1 INTRODUCTION 1.1 MAIN FEATURE Local recording, playback, support trible code remote network surveillance, data backup, parameter setting, motion detection, I/O alarm setting,PTZ and USB mouse. 1.2 PRODUCT FEATURES H.264 compression Two USB interface, USB2.0 for data backup, USB1.1 for mouse operation. 3.5”...
  • Page 4 Picture H.264 compression Picture resolution CIF/HD1/D1(8CH Device only CIF) Streaming style ISO14496-10 Picture Audio style ADPCM proceeding and store Video code rate Audio code rate 32KB/s Data storage Alarm input 4 alarm input Alarm Alarm output 1 alarm output Servial interface Support 1 RS232 Servial interface Support 1 RS485...

  • Page 5: Basic Working Parameter

    1.2.2 BASIC WORKING PARAMETER item parameter remark Voltage input DC 19V@3A. Voltage outputfor 12V +/-0.2V 12V@1A. camera Video input 75 each channel. impedance Video output 1Vp-p 1Vp-p CVBS signal 0—2V Low voltage alarm 5V-30v Hight voltage alarm RS232 serial port, for extend use RS485 Connect to PTZ, (Pelco-D Pelco-P) SATA HDD...

  • Page 6: Operation Manual

    2 OPERATION MANUAL In device operation, the enter key on remote control has the same function with mouse left click. 2.1 REMOTE KEY INSTRUCTION OPTIONAL 2.1.1 REMOTE CONTROL Handheld IR Controller Key Functions: 0 9 keys During setup, number keys are used to input values. For viewing channels 1,2,3 and 4, use 1,2,3 and 4 on numeric keypad respectively.

  • Page 7: Mouse Operation

    Up, Down directional keys: Move selection up and down in setup menu. Left, Right directional keys: Move cusor left or right in setup menu. Enter key: During setup, select and save entry During Playback and preview, displays the channel name, text number, driver name, event sensor item and time, year/month/date, time, GPRS/GPS info.
  • Page 8 Click the left key to zoom in the window on the live view and playback video. Double click the left key can exit to the live view and playback multi-window interface. 1. Volume adjustment, color adjustment, PTZ setting and VGA border operation.It is for setting the single channel for volume adjustment, PTZ control and color adjustment.If it is multi-window, please use the left key to select the single window.

  • Page 9: Menu Tree

    2.3 MENU TREE You can control the DVR by a lot of menu operation.This tree will show you the menu structure and it will be in details in after chapter.

  • Page 10: System Operation

    2.4 SYSTEM OPERATION 2.4.1 START-UP Connect the DC19V/3A adapter to DVR. When start up the DVR, POW LED will be on and 4 images will be display on the screen. If it has setup ignition recording or time recording, the system will record automatically and the corresponding LED will be on, the system work normally.

  • Page 11: Record Search

    GUI OPERATION The main menu include “SEARCH”,”RECORD”,”HDD”,”BASIC” “ADVANCE”,and“Exit”. Remark: You must after pressing “APPLY”to make the setting for submenu valid.It will no use when exit directly.This DVR have a special feature is: when you move the mouse to everwhere, there will have the explanation information showed autoly.
  • Page 12 2. DATE: It will show all the recording status in this day, you can playback the record file in this period via click the corresponding period. PLYBACK:You can press Enter input number directly to setup playback time.After setting,move the cursor to “PLAYBACK”, and then press”APLLY”to enter into video playback of that time.Also you can select any period of time in the video status frame after searching,press”APLLY”to enter into the video playback of this period.

  • Page 13: Record Setup

    2. BACKUP You can use USB for backup should insert USB device into the USB2.0 port before backup files. And it is support USB OTG. You can select the recording file by direction keys , and press Enter means selected OK There is a “...
  • Page 14 CHANNEL ON: Means the channel enable for recording. RESOLUTION Setup resolution and code rate for recording, there are HIGEST, HIGH, NORMAL three options, corresponding to D1 HD1 CIF resolution. There are BEST, FINE ANDNORMAL three option, corresponding HIGHEST, HINGAND QUALITY NORMAL data stream standard AUDIO ON: Means enable the audio recording for all channels, OFF: Means disable audio recording...

  • Page 15: Hdd Manage

    Enter button, grounding means don’t record, different color means different record mode: Red means alarm record, green means normal record, grounding means no record. RECORD SIZE There are 15min, 30min, 45min, 60min four options, that means it will pack as the mode you selected Scroll to APPLY and press ENTER to save the new settings.
  • Page 16 Basic setup includes system language, time/date, security, display, video/audio and exit six options. 1. SYSTEM LANGUAGE SETUP Move cursor to select “system language” (The big icon means select ok)and press ENTER to enter into the system language setup interface. System language have Chinese and English two options, you can setup the language you want in here.
  • Page 17 DATE: Setup system date via numeric key. DATE FORMAT: Press ENTER to switch between the date patterns, there are YY-MM-DD and MM/DD/YY two options. TIME: Setup system time via numeric key. TIME FORMAT: Press ENTER to switch between the date patterns, there are 12 HOURS and 24 HOURS two options.
  • Page 18 NETWORK PW CLEAN select and apply will initialize the IE browser password . 4. DISPLAY SETUP Move the cursor to DISPLAY SETUP Icon highlighted when selected , press Enter to enter into the setting interface. NAME: press Enter to enter into the setting interface. POSITION:press Enter to switch name location,there are 5 options:bottom left, top left, bottom right, top right and OFF.

  • Page 19: Advance Setup

    5. VIDOE/AUDIO SETUP Move the cursor to VIDEO/AUDIO SETUP Icon highlighted when selected press Enter to enter into setting interface. VGA RESOLUTION press Enter key to setup the VGA resolution, there are 1024*768 800*600 and 600*480 three options. CAMERA SYSTEM: press Enter to switch camera system, has PAL and NTSC two options move cursor to VOLUME SETUP press Enter to enter into volume setup VOLUME SETUP...
  • Page 20 monitoring, system maintenance, PTZ and network setting. 1. ALARM SETUP Move the cursor to ALARM SETUP Icon highlighted when selected press Enter to enter into setting interface. Each channel corresponds an I/O status, that is, when an alarm triggered, it will I/O CHANNEL activate the corresponding channel to start alarm recording.
  • Page 21 3. MOTION DETECT Move the cursor to MOTION DETECT Icon highlighted when selected press Enter to enter into setting interface. STATUS Each channel has corresponding channel switch, press Enter to turn on or turn off the motion detection for each channel.. SNESITIVITY each channel has corresponding sensitivity setting,including four standards high,higher,medium and low, press Enter key to switch each channel has corresponding regional motion detecting setting,move the cursor to...
  • Page 22 Move the direction key on romote control to make cursor move in the small pane, green frame means the cursor has moved to this pane, press Enter to select or cancel motion detection of this small pane, when setup finished, press exit to back to MD setup interface, it will save automaticly. Remark: IR Operation: press [Menu] key to select or cance all the screen.
  • Page 23 5. SYSTEM MAINTAIN Move the cursor to SYSTEM MAINTAIN (Frame turns red means selected), and press Enter to enter into system maintain setup interface. AUTO RESET: When switch is on, you can setup the time for device to restart. SYSTEM UPDATE: Copy the update file to the root directory of the thumb driver, and insert it into USB 1.0, then press [Enter] to upgrade the firmware, and it will display the process of the system upgrading, as following: DEFAULT SETTINGS: Restore all the settings as the factory setting.
  • Page 24 BAUD RATE: select the different baud rate for your PTZ, there are 1200, 2400, 4800, and 9600 DATA BIT: there are 5,6,7,8 options to select, default setting is 8. STOP BIT: there are 1and 2 to select, the default setting is 1. VERIFY: there are None/Odd/Even/Mark/Space to select, the default setting is none.
  • Page 25 MEDIA PORT transfers video data between client and device. WEB PORT: setup the port of IE browser via HTTP. IP ADDRESS: setup the IP address, and press [Enter] number keys to change the value. NETMASK: press [Enter], number keys to change the value. GATEWAY: press [Enter], number keys to change the value.
  • Page 26 DHCP Select the DHCP, and enter into the interface as followings. MEDIA PORT transfers video data between client and device. WEB PORT: setup the port of IE browser via HTTP. PPPOE username and password: fill the username and password of the internet service offer, and apply it and reboot the system.
  • Page 27 as default network type. If succeed, the IP address will be automatically config as dynamic IP of WAN. DNS: press [Enter], number keys to change the value. DDNS: move the cursor to it and press [Enter] to enter into the interface as followings. DDNS: There are [ON/OFF], and if there is a DDNS service, please setup it as ON.
  • Page 28 1) Fill out all the information then submit. 2) Minutes later, you will get a mail from dyndns, which include the primary password for the user you just register. 3) Then please login http://www.dyndns.com/ with the new user and password, click “domain name management”...
  • Page 29 Save and restart device, it will connect to internet via PPPoE mode automatically, if success, it will got a dynamic public IP. ping xxx.xxx.xxx.xxx(The public IP of DVR) to check whether the network is ok, and ping xxx.xxx.xxx the domain name of DVR to check whether the DDNS settings is ok. Open IE browser, and type in the domain name of DDNS (if WEB port is not 80, you should add a port, such as:http://members.dydns.com:8088 ) Please download the IE control, then enter into login interface, the default setting has no password.

  • Page 30: Ie Operation

    3 IE OPERATION 3.1 FEATURE Through the IE browser of OS and install the software, you are able to do the network operation remotely, which is much more convenient. DVR support C/S, B/S, and visit in LAN and WAN, also support IP and domain name visiting.

  • Page 31: Operation Interface

    3.3 OPERATION INTERFACE There are Liveview, Playback and Setup options in the main interface, please press them to access it. 3.3.1 LIVE Click to enter into the interface as followings 3.3.2 PTZ CONTROL Change the focus, preset aperture to control the PTZ. Click to up/down/left/right control movement of the PTZ.

  • Page 32: Ptz Preset

    Click to focus Click to change the size of aperture 3.3.4 PTZ PRESET Setup preset point. You can control it via the below three buttons: 3.3.5 PLAY Move cursor to the icons, it will highlighted when selected Open all windows. Capture picture, save in local disk, system save default route is C:/DVR Quickly start all channels’...

  • Page 33: Repaly

    3.3.7 REPALY Click to enter into playback interface. Click right up of calendar interface , to setup the month for searching, click” refurbish”, at the calendar interface will display the recording information of current month The highlighted date means that day have recording video, RED FRAME means the date is system date, click the date will search that days’...
  • Page 34 Double click one item of listed recording video, the recording video will playback, meanwhile the file icon will change to , and will occur the below picture play buttons: The above purple progress bar shows download progress, green progress bar shows playback progress Switch between pause/play Stop play...

  • Page 35: Setup

    SOURCE FILE: Click to setup the H.264 file to convert DESTINATION FILE: Click to setup the directory for saving avi file After setting, click , file convert start, the convert progress bar (see below picture) will see the progress of convert. 3.3.8 SETUP Click to enter into setup interface, this interface include record, alarm, PTZ,...

  • Page 36: Alarm

    3.3.10 ALARM Click to enter into setup interface; you can check the parameter settings as in GUI of DVR.

  • Page 37: Ptz

    3.3.11 PTZ Click to enter into setup interface; you can check the parameter settings as in GUI of DVR. 3.3.12 NETWORK Click to enter into setup interface; you can check the parameter settings as in GUI of DVR.

  • Page 38: Setting

    3.3.13 SETTING Click to enter into setup interface; you can check the parameter settings as in GUI of DVR.

  • Page 39: Host Info

    BANDWIDTH: Set the amount of bandwidth in kbps (128k 192k 256k 384k 512k 1024k) that you want to allocate for traffic that matches internet this bandwidth not include audio . FILE SAVE PATH: capture picture and recording video save path. IE login password and DST settings you can check as DVR setting.
