COP-USA TBX-DVR User Manual

Tissue box covert dvr camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

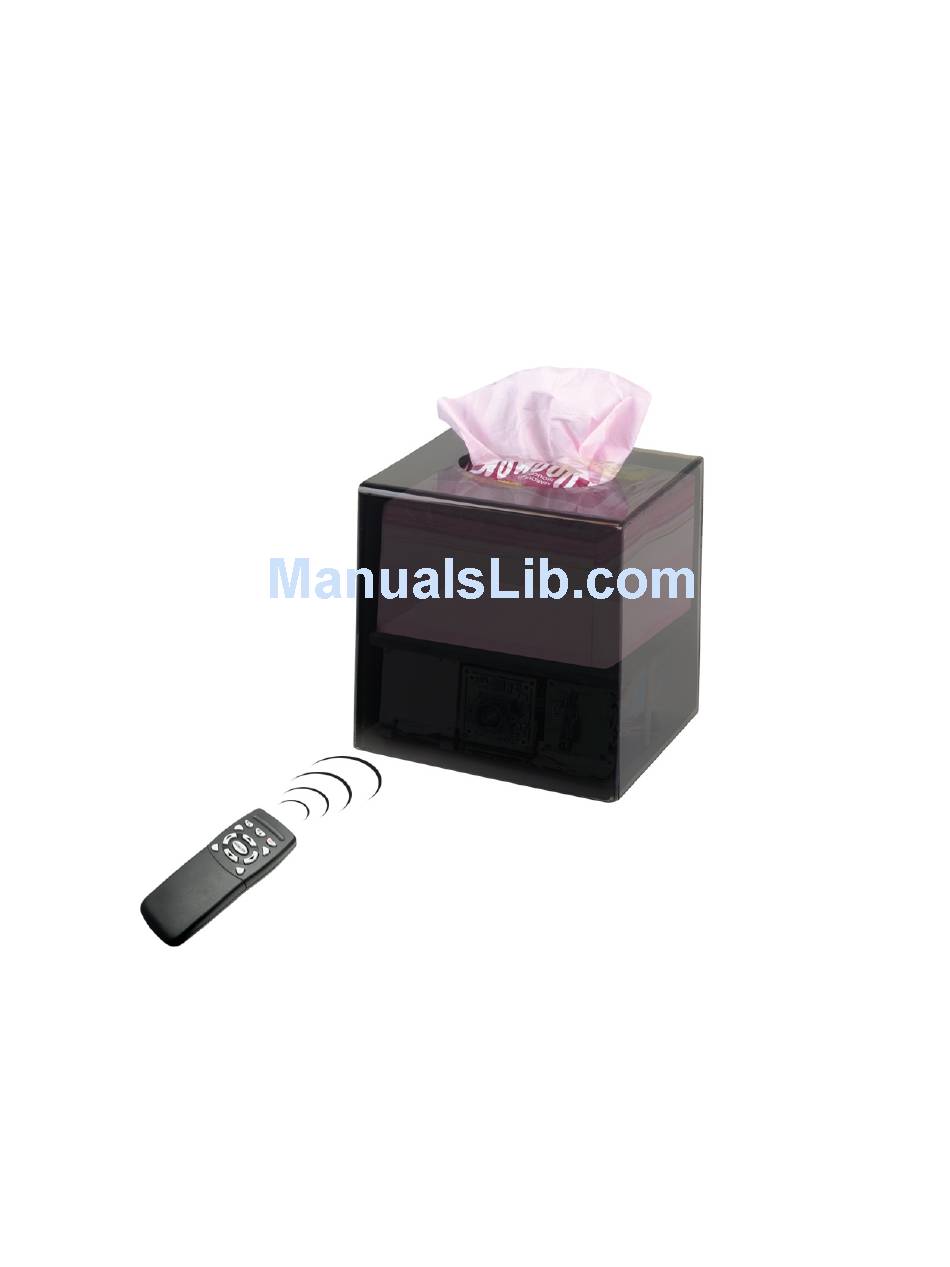

Tissue Box Covert
DVR Camera
User Manual
V2.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBX-DVR and is the answer not in the manual?

Questions and answers

Related Manuals for COP-USA TBX-DVR

Summary of Contents for COP-USA TBX-DVR

  • Page 1 Tissue Box Covert DVR Camera User Manual V2.5...

  • Page 2: Safety Precautions

    1. SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. It is advised to read the Safety Precaution Guide through carefully before operating the product, to prevent any possible danger.
  • Page 3 2. FEATURES • The Mini DVR Module supports NTSC or PAL video system, and auto detects video loss. • The Mini DVR Module has a built-in MPEG4-SP video and G.726 audio codec. It supports a 1 channel video and a 1 channel audio recording and playback operation. •...

  • Page 4: Package Content

    3. PACKAGE CONTENT 3.1 Remote Control Functions...
  • Page 5 4. TBXDVR Description 4.1 About the TBXDVR The TBXDVR is an economic and covert DVR with all-in-one audio, video and playback function. It has a SD memory card slot with a built in hidden camera. It is simple to operate and is suitable for all evidence gathering needs (such as on-site video evidence, loss prevention, babysitting surveillance).

  • Page 6: Connection Overview

    4. TBXDVR Description 4.3 Connection Overview 4.3.1 A/V Connection: PDR25M( Optional ) 2400TX ( Optional ) V/A OUT : Connect to Monitor,PDR25 or Wireless transmitter ( 2400TX) 4.3.2 SD memory card installation Please make sure the SD card is in the correct direction before plug-in.

  • Page 7: Operation

    5. OPERATION 5.1 Power On 1. To power-up, connect to a AC power outlet. NOTE 1: Each time after powering on, the system will auto-detect its peripherals. The REC LED will flash indicating the SD card is proceeding with testing (complete boot time is several seconds) When an image file error has been detected, the system will initiate auto repair.

  • Page 8: Record Mode

    Record Status: Manual Record Parameter. Record Size, please refer to 6.4 Record Setup for VIDEO SIZE setup. Record Quality, please refer to 6.4 Record Setup for VIDEO QUALITY setup. Audio Off Record, please refer to 6.4 Record Setup for AUDIO RECORD setup.
  • Page 9 3. Record Display: Record Status: : Indicates recording is in progress. Record Mode: Manual Record Schedule Record Motion Detection Record Alarm Record Record Storage Mode Status: Continuous Record Remaining Storage Capacity 4 System recording is determined according to the recording priority order (Record Priority: Manual/ Alarm/ Motion Detection/ Continuous).

  • Page 10: Playback Mode

    5.4 Playback Mode Selectable Playback format: Continuous Playback and Searching Playback. (1) Normal Playback: Press (PLAY / PAUSE) Button to first playback the final recorded data, and then according to the SD card file recording order. Playback Status: Press (PLAY/PAUSE) Button once to playback, press it again to pause. Press directional buttons to Fast Rewind or Fast Forward (Speed: x2/ x4/ x8/ x16/ x32).

  • Page 11: Sd Card Maintenance

    Event Record Status Icon: Manual Motion Detection Continuous Alarm NOTE 1 & NOTE 2 Each color distinguishing different recording events, the user may press directional buttons to move the cursor left or right and immediately shows the first image of the highlighted event on the screen display background. Displays the time highlighted by the event bar.

  • Page 12: Menu Setup

    6. MENU SETUP 6.1 Main Menu MAIN MENU: Item subject. Menu Layer Indication: The device consists of three menu layers. : First Menu Layer (Main Menu) : Second Menu Layer : Third Menu Layer MENU Content: Basic Menu Operations. Use the directional buttons, to select the item. Press (MENU/OK) button, to enter the sub menu Press (ESC/STOP) button: •...

  • Page 13: Motion Detection

    6.2 Date/ Time Date Format Y / M / D M / D / Y D / M / Y Year Setup: 2000 - 2099 Date/ Time Adjustment Month Setup: 01 - 12 Time Setup: 00 : 00 - 23 : 59 Return to factory default, no changes will be made.
  • Page 14 3. Motion Detection Area Setup: (1) Press (MENU/OK) button to edit detection block. Mode CELL EDIT Single detection cell setup (detection/ non-detection) Disable a block DEL BLOCK Delete all cells DEL ALL ADD BLOCK Enable a block ADD ALL Enable all cells (2) Press (MENU/OK) button to switch cursor to edit mode (cursor color is pink).

  • Page 15: Record Setup

    6.4 Record Setup Selectable manual or schedule recording, basic setups are shown below: 1. MANUAL RECORD: Press (REC)button to start recording ( NOTE 1 Video Size/ Frame Rate Setup: VIDEO SIZE 320x240 640x480 FRAME RATE (MAX) 30 fps 12 fps Image Quality: HIGH Using high recording quality (More CF card storage capacity will be required).
  • Page 16 (1) SCHEDULE SETUP SCHEDULE Record ON / OFF setup (default setup is OFF). SCHEDULE MODE Press directional buttons to setup schedule time and to setup different types of recording schedule. ( Motion Detection Record Continuous Record Alarm Triggered Record). (2) Increase setup during Alarm Detection: DURATION Duration time when motion detection has been triggered (05 ~ 90 SEC (increase by every 5 SEC) / 10 SEC).

  • Page 17: Continue Record

    (4) CONTINUE RECORD: Setup method is similar to manual record setup, for more information please refer to [6.4 1. MANUAL RECORD]. 6.5 SD Card Options TOTAL SPACE SD card total capacity. SD card remaining capacity. REMAINING SPACE NOTE 1: For continuous recording, old videos can be deleted and overwritten. Please confirm before setup.

  • Page 18: System Status

    6.6 System Status Press any button to return to the Main Menu. 6.7 Power On Setup LANGUAGE Setup menu language. Setup video output format, NTSC/ PAL ( COMPOSITE NOTE 1 NOTE 1: Once camera is connected, the device automatically will detect the NTSC/ PAL video system (the output video system will be set up the same as its input video system).

  • Page 19: Factory Default

    6.8 Factory Default Press (MENU/OK) button, returns all settings to the factory default value ( NOTE 1 Press (ESC/STOP) button, exit this screen display and returns to the Main Menu. NOTE 1: Returning to factory default will erase all previous selected configuration values . Except for date /time set up , Please confirm your selection before you proceed.

  • Page 20: Troubleshooting

    7. TROUBLE SHOOTING Q1. What is the recording capacity for a 4GB SD card? A1. Different recording setup has different recording capacity. The table below shows possible recording time during continous recording with different record modes. Quality Frame Rate SD Card High Medium VGA (640 x 480)

  • Page 21: Specifications

    9. SPECIFICATIONS STANDARD FUNCTION System NTSC / PAL Video System and Video Loss Auto Detection Codec MPEG4-SP ASF File Format 1, 2, … , Maximum fps selectable Record Frame Rate Maximum: Video 30 fps@320x240 / 12 fps@640x480 Record Quality Low / Medium / High Recording Date/Time Overlay with Video Images in ASF File Input...
  • Page 22 10. How to Replace the Tissue paper. Open the Bottom Lid as shown on the Picture. Remove the Outer Housing of the TBXDVR. Remove Screws located on both sides of TBXDVR, Lift the housing and then, replace the tissue paper.
