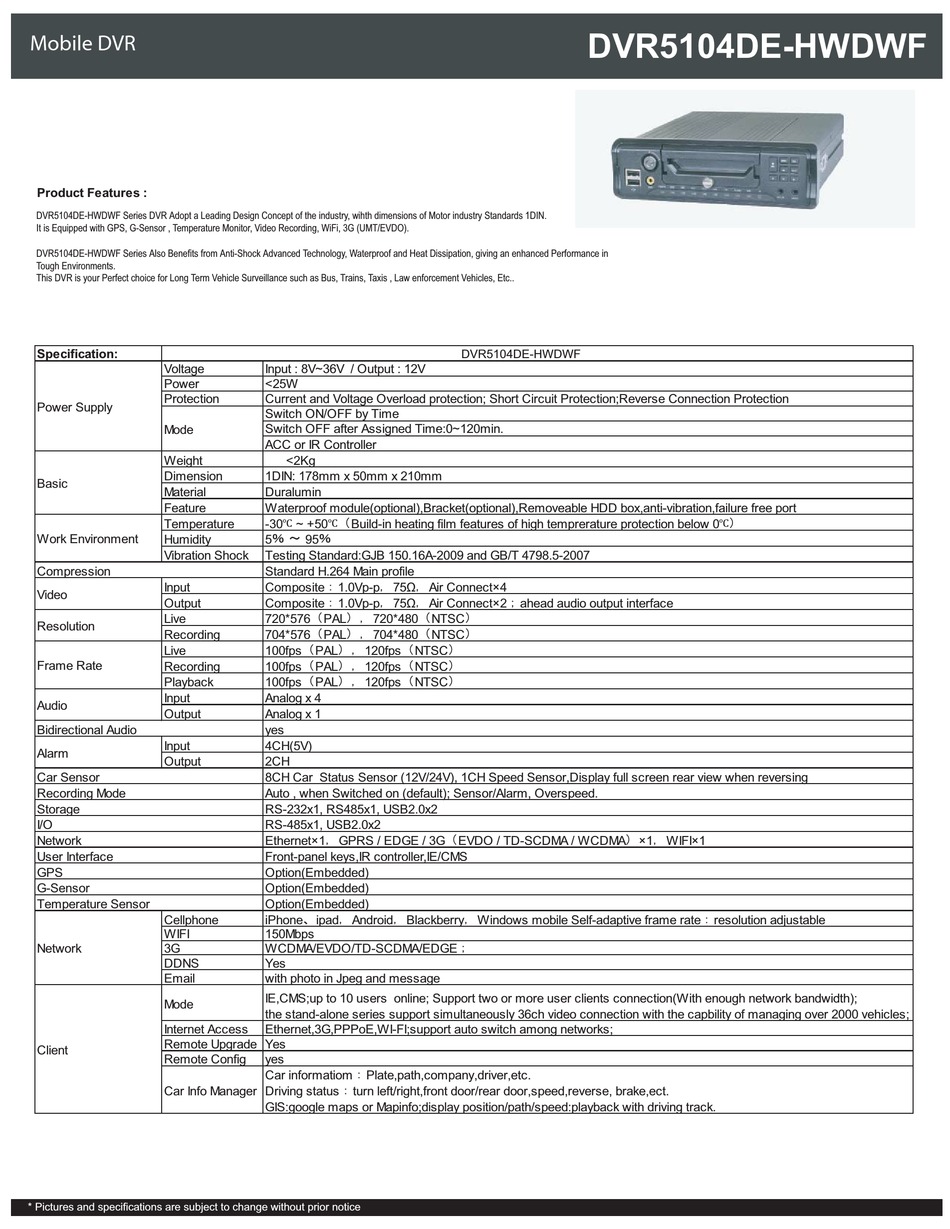

Product Features :

DVR5104DE-HWDWF Series DVR Adopt a Leading Design Concept of the industry, wihth dimensions of Motor industry Standards 1DIN.

It is Equipped with GPS, G-Sensor , Temperature Monitor, Video Recording, WiFi, 3G (UMT/EVDO).

DVR5104DE-HWDWF Series Also Benefits from Anti-Shock Advanced Technology, Waterproof and Heat Dissipation, giving an enhanced Performance in

Tough Environments.

This DVR is your Perfect choice for Long Term Vehicle Surveillance such as Bus, Trains, Taxis , Law enforcement Vehicles, Etc..

Specification:

Voltage

Power

Protection

Power Supply

Mode

Weight

Dimension

Basic

Material

Feature

Temperature

Work Environment

Humidity

Vibration Shock

Compression

Input

Video

Output

Live

Resolution

Recording

Live

Frame Rate

Recording

Playback

Input

Audio

Output

Bidirectional Audio

Input

Alarm

Output

Car Sensor

Recording Mode

Storage

I/O

Network

User Interface

GPS

G-Sensor

Temperature Sensor

Cellphone

WIFI

Network

DDNS

Mode

Internet Access

Remote Upgrade Yes

Client

Remote Config

Car Info Manager

* Pictures and specifications are subject to change without prior notice

Input : 8V~36V / Output : 12V

<25W

Current and Voltage Overload protection; Short Circuit Protection;Reverse Connection Protection

Switch ON/OFF by Time

Switch OFF after Assigned Time:0~120min.

ACC or IR Controller

<2Kg

1DIN: 178mm x 50mm x 210mm

Duralumin

Waterproof module(optional),Bracket(optional),Removeable HDD box,anti-vibration,failure free port

℃

-30

~ +50

Build-in heating film features of high temprerature protection below 0

Testing Standard:GJB 150.16A-2009 and GB/T 4798.5-2007

Standard H.264 Main profile

Composite 1.0Vp-p 75Ω

Air Connect×4

Composite 1.0Vp-p 75Ω

Air Connect×2 ahead audio output interface

720*576 PAL

720*480 NTSC

704*576 PAL

704*480 NTSC

100fps

PAL

120fps

NTSC

100fps

PAL

120fps

NTSC

100fps

PAL

120fps

NTSC

Analog x 4

Analog x 1

yes

4CH(5V)

2CH

8CH Car Status Sensor (12V/24V), 1CH Speed Sensor,Display full screen rear view when reversing

Auto , when Switched on (default); Sensor/Alarm, Overspeed.

RS-232x1, RS485x1, USB2.0x2

RS-485x1, USB2.0x2

Ethernet×1 GPRS / EDGE / 3G EVDO / TD-SCDMA / WCDMA ×1 WIFI×1

Front-panel keys,IR controller,IE/CMS

Option(Embedded)

iPhone ipad Android Blackberry Windows mobile Self-adaptive frame rate resolution adjustable

150Mbps

WCDMA/EVDO/TD-SCDMA/EDGE

Yes

with photo in Jpeg and message

IE,CMS;up to 10 users online; Support two or more user clients connection(With enough network bandwidth);

the stand-alone series support simultaneously 36ch video connection with the capbility of managing over 2000 vehicles;

Ethernet,3G,PPPoE,WI-FI;support auto switch among networks;

yes

Car informatiom

Plate,path,company,driver,etc.

Driving status

turn left/right,front door/rear door,speed,reverse, brake,ect.

GIS:google maps or Mapinfo;display position/path/speed:playback with driving track.
