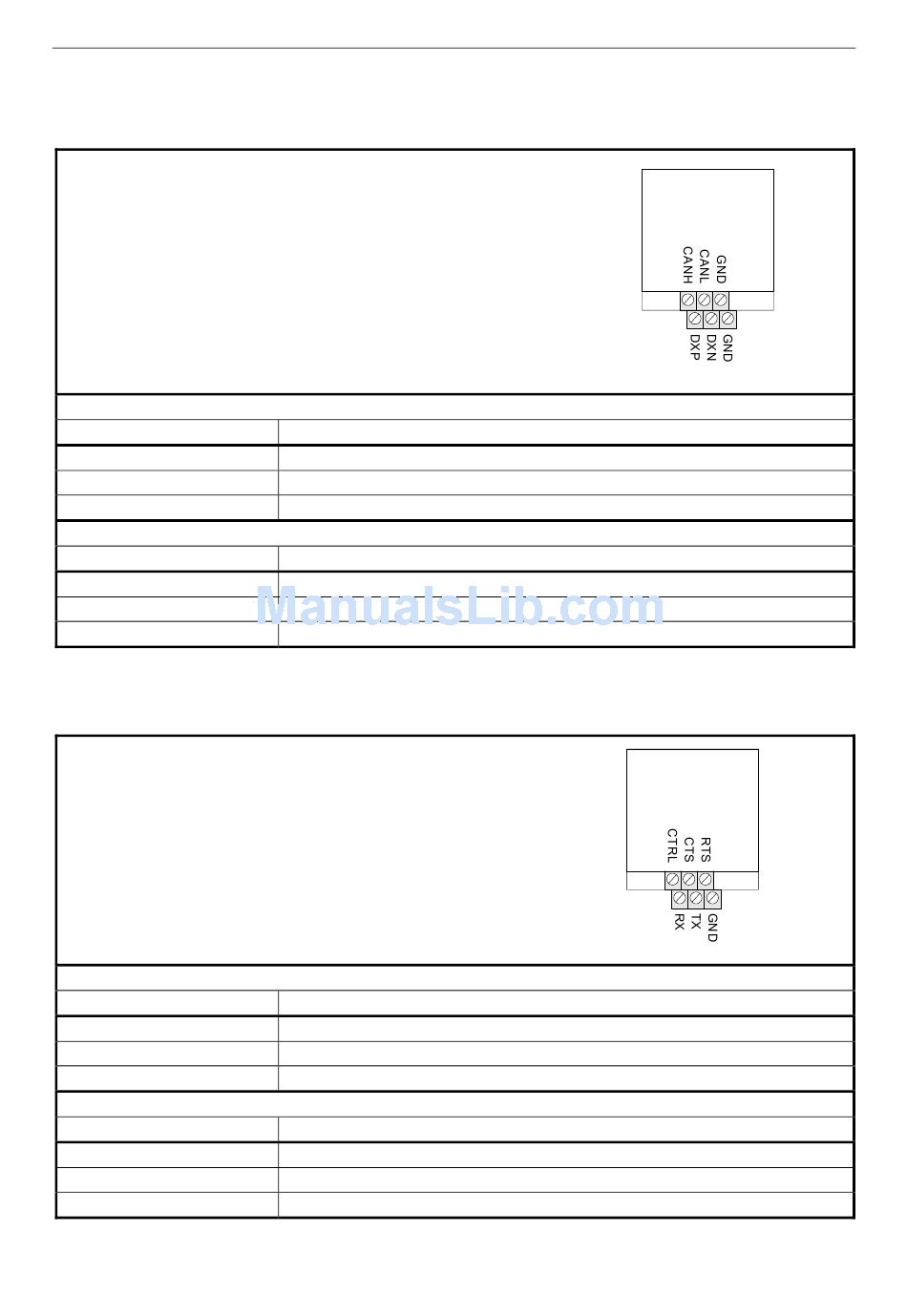

RS485 Serial and CAN Bus

RS485
•
2x3 way double stack terminal block (5 mm).
•
Lower terminal block.
•
Serial control connection for interfacing with Remote I/O units (ASL
product: BMB01) and Fire Alarm Loop Interfaces.
CAN Bus
•
2x3 way double stack terminal block (5 mm).
•
Upper terminal block.
•
CAN Bus Interface to the system amplifiers.
Signal
GND
CANL
CANH
Signal
GND
DXN
DXP
8.6

RS232 Serial

RS232
•
2x3 way double stack terminal block (5 mm).
•
In networked system it is internally used. It may temporarily be
disconnected from the network, and then connected to a PC for
configuration purposes.
•
In stand-alone system it can be connected to a PC/DVA system.
Signal
RTS
CTS
CTRL
Signal
GND
TX
RX
VAR8 and Variants - Product Description
CAN Bus (Upper Block)
0 V Reference
Controller Area Network (Low)
Controller Area Network (High)
RS485 (Lower Block)
0 V Reference
Data+ (EIA RS485 9600 baud)
Data– (EIA RS485 9600 baud)
Upper Block
EIA RS232 Request to Send
EIA RS232 Clear to Send
EIA RS232 Data Terminal Ready
Lower Block
0 V Reference
EIA RS232 Transmit data (9600 baud)
EIA RS232 Receive data (9600 baud)
