Congratulations on choosing a Clay Paky product! We thank you for your cus-
tom. Please note that this product, as all the others in the rich Clay Paky range,
has been designed and made with total quality to ensure excellent performance
and best meet your expectations and requirements.
INSTRUCTIONS MANUAL
Carefully read this instructions manual in its entirety and keep it safe for future
reference.
It is essential to know the information and comply with the instructions given
in this manual in order to ensure the fitting is installed, used and serviced cor-
rectly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting or to other
property or persons deriving from installation, use and maintenance that have
not been carried out in conformity with this instructions manual, which must
always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the characteristics stated in this
instructions manual at any time and without prior notice.
1

SAFETY INFORMATION

• Installation
Make sure all the parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety rope, properly hooked onto the fitting and secured to the framework, must
be installed so that, if the primary support system fails, the fitting falls as little as pos-
sible. If the safety rope gets used, it needs to be replaced with a genuine spare.
• Minimum distance of illuminated objects
The projector needs to be positioned so that the objects
hit by the beam of light are at least 1 metres (3'3") from
the lens of the projector.
• Minimum distance of flammable materials
The projector must be positioned so that any flammable materials are at least 0.10
metres (4") from every point on the surface of the fitting.
It is permissible to mount the fitting on normally flammable surfaces.
• Maximum ambient temperature
For the fitting to operate well and reliably, the ambient temperature should not exceed
35°C (95°F).
• IP20 protection rating
The fitting is protected against penetration by solid bodies with a diameter of over
12mm (0.47") (first digit 2), but not against dripping water, rain, splashes or jets of
water (second digit 0).
• Protection against electrical shock
This fitting is classified, in accordance with the type of protection against electrical
shock, in Class I. It must therefore be connected to a power supply system with effi-
cient earthing.
It is, moreover, recommended to protect the supply lines of the projectors from indi-
rect contact and/or shorting to earth by using appropriately sized residual current
devices.
• Hooking up to the supply mains
The operations for connecting to the electricity mains must be carried out by a quali-
fied electrical installer.
Check that the mains frequency and voltage correspond to the frequency and voltage
for which the projector is designed, given on the electrical data label.
This label also gives the input power. Refer to this to evaluate the maximum number
of fittings to connect to the electricity line in order to avoid overloading.

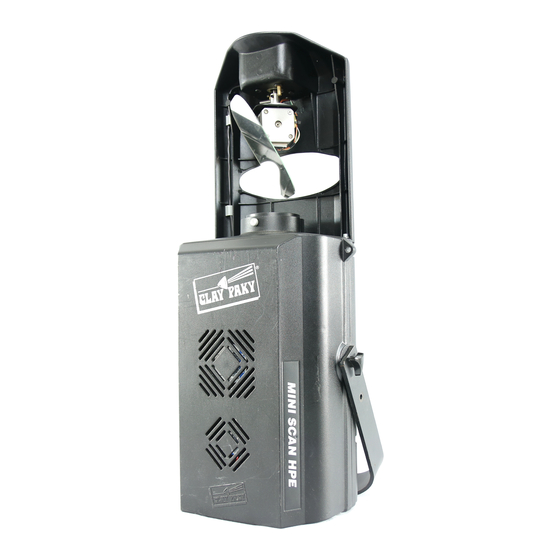

MINISCAN HPE
• Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the
supply mains.
After switching off, do not remove any parts of the fitting for 4 minutes. After this time
the likelihood of the lamp exploding is virtually null. If it is necessary to replace the
lamp, wait for another 15 minutes to avoid getting burnt.
The fitting is designed to hold in any splinters produced by a lamp exploding. The lens-
es must be mounted and, if visibly damaged, they have to be replaced with genuine
spares.
• Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting,
in a thermally steady state, is 100°C (212°F).
• Lamp
- Carefully read the "operating instructions" provided by the lamp manufacturer.
- Immediately replace the lamp if damaged or deformed by heat.
2

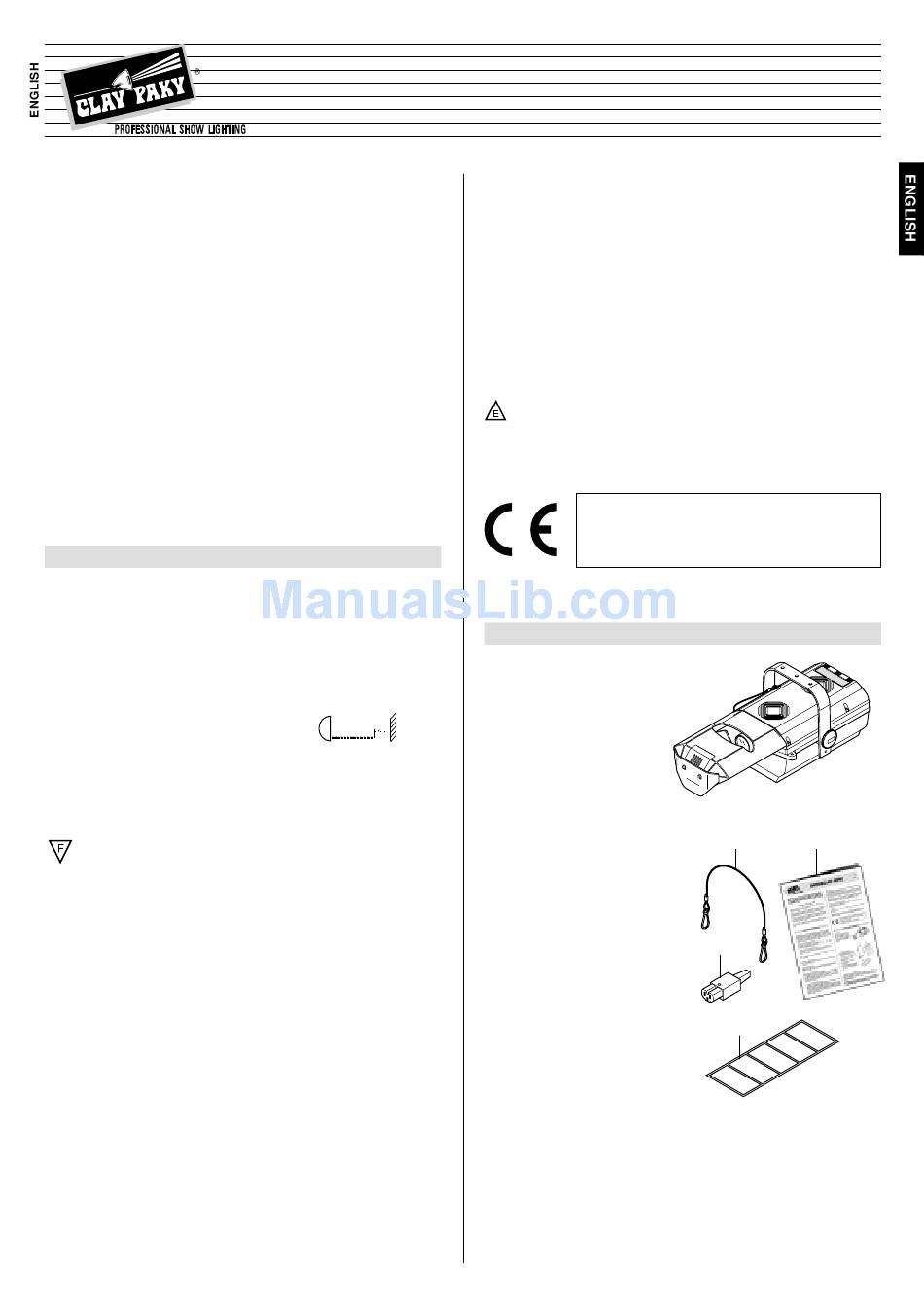

• Unpacking
Open the cardboard box, take out
(3' 3")
the polystyrene wrapping and sepa-
rate it, freeing the projector.
HTI 300
1.0
Remove the plastic bag from the
HMD 300
projector and position this on a hor-
izontal top.
• Packing contents
Besides the projector, the packing also
contains the following accessories:
- Safety rope code 105041/002 (1).
- Socket for mounting on cable code
030210 (2).
- This instructions manual
code 099509 (3).
- Multilingual labels (4) with safety
information code 081949/004 (located
in the lamp compartment of the
projector).
• Preparing the warning label
Find the relamping label (5) on the cover of the projector and, if necessary, replace
it with one of the optional multilingual labels (4) in the lamp compartment of the
projector. Read paragraph 5 MAINTENANCE for the instructions on opening the
projector.
CAUTION: Read carefully and meticulously apply the information and instruc-
tions given on this label. In addition, check it is never removed as it contains
important safety information.
The fitting mounts a high-pressure lamp with an external igniter.
The products referred to in this manual conform to the
European Community Directives to which they are subject:
• Low Voltage 73/23
• Electromagnetic Compatibility 89/336

INSTALLING THE PROJECTOR

HTI 300
HMD 300
1
3
2
4
5
