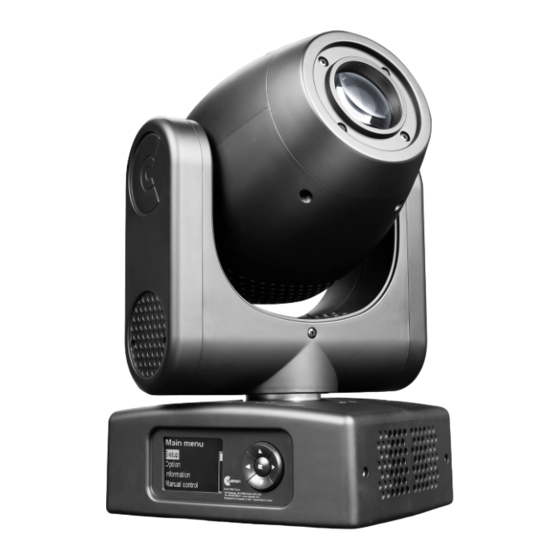

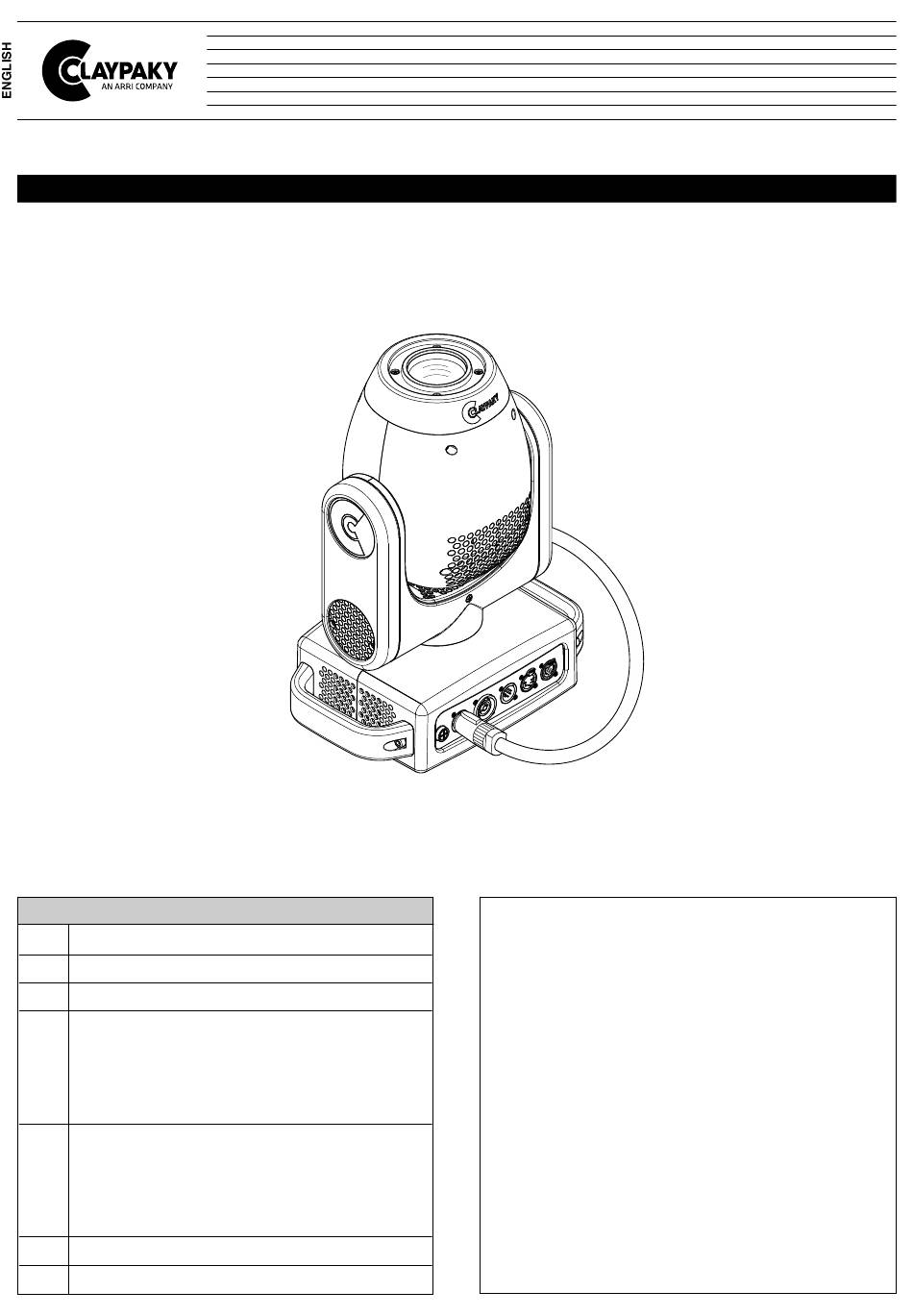

MINI-B SPOT
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
CL3025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI-B SPOT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clay Paky MINI-B SPOT

Summary of Contents for Clay Paky MINI-B SPOT

  • Page 1: Table Of Contents

    CL3025 MINI-B SPOT INSTRUCTION MANUAL INDEX Congratulations on choosing a Claypaky product! Page Contents We thank you for your custom. Safety information Please note that this product, as all the others in the rich Claypaky range, has been designed and made with...

  • Page 2: Safety Information

    IMPORTANT: Claypaky recommande de lire attentivement et de conserver les informations de sécurité relatives à ce produit, disponibles en version digitale au lien suivant: www.claypaky.com Réf. : FIS02K - Safety information Mini-B Spot ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ ВАЖНО: Claypaky рекомендует внимательно прочитать и сохранить инструкцию по технике безопасности...

  • Page 3: Unpacking And Preparation

    2. UNPACKING AND PREPARATION Packing contents - Fig. 1 MINI-B SPOT...

  • Page 4: Installation And Start-Up

    This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. Display User buttons Fuse Power IN Power OUT DMX IN DMX THRU Ethernet (5 pin) (5 pin) Control panel - Fig. 3 MINI-B SPOT...

  • Page 5: Connecting To Manis Supply

    A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3. IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the shield braid and to pin 1 of the connectors. Continue MINI-B SPOT...

  • Page 6: Switching On The Fixture And Basic Setup

    To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512). The address can also be set with the projector switched off. MINI-B SPOT...
  • Page 7 All that is needed is to press RIGHT to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds. MINI-B SPOT...

  • Page 8: Maintenance

    4. MAINTENANCE 4.1 Opening the covers Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 9. Closing the head covers - Fig. 10. MINI-B SPOT...

  • Page 9: Periodical Cleaning

    • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc. • Electrical, photometric and functional checks; eventual repairs. Continue MINI-B SPOT...
  • Page 10 To determine which side of a godo is coated, hold an odject up to it. On the uncoated side, there is a space between the object and its reflection. Gobo orientation - Fig. 14 The pictures shown the correct gobos orientation. MINI-B SPOT...

  • Page 11: Battery Removal

    4.4 - Battery removal This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. MINI-B SPOT...

  • Page 12: Dimensions

    5. DIMENSIONS (10.51") (9.25") (9.45") (15.79") (13.90") (8.66") (7.32") (12.16") 6. CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Light source exhausted or defective.
