Operation and maintenance manual
Before using the machine, please read the attached operating instructions.
Carefully read the safety rules
Mode d'emploi
Veuillez lire attentivement le mode d'emploi
(notamment les consignes de sécurité) avant d'utiliser l'appareil.
FOR HOUSEHOLD USE ONLY
USAGE DOMESTIQUE SEULEMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Platinum Vogue and is the answer not in the manual?

Questions and answers

Summary of Contents for Gaggia Platinum Vogue

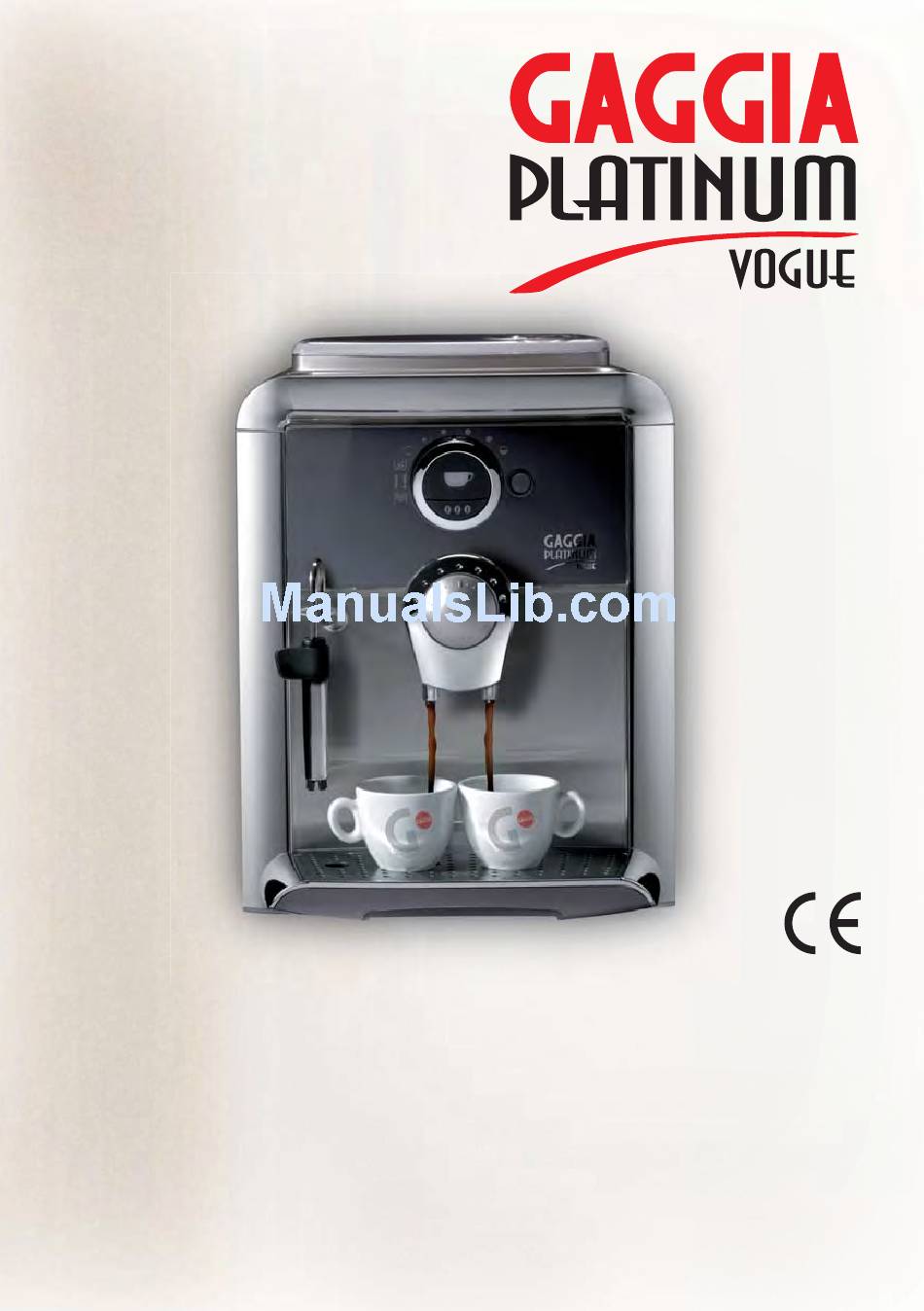

  • Page 1 Operation and maintenance manual Before using the machine, please read the attached operating instructions. Carefully read the safety rules Mode d'emploi Veuillez lire attentivement le mode d'emploi (notamment les consignes de sécurité) avant d'utiliser l'appareil. FOR HOUSEHOLD USE ONLY USAGE DOMESTIQUE SEULEMENT...
  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or appliance in water or other liquid.
  • Page 3 IMPORTANT Lors de l’utilisation d’appareils électriques, il est indispensable de respecter toujours les précautions de sécurité principales, y compris les suivantes : 1. Lire toutes les instructions. 2. Ne pas toucher de surfaces chaudes. Utiliser les poignées ou les boutons. 3.
  • Page 4 CAUTION This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user.
  • Page 5 PRÉCAUTIONS Machine est réservée à un usage domestique. Tout entretien, en dehors du nettoyage et de l’entretien usuel par l’usager, doit être fait par un service après- vente autorisé. Ne pas plonger la base dans l’eau. Pour éviter les courts-circuits et les décharges électriques, ne pas démonter la base.
  • Page 6: Table Of Contents

    CONTENTS - TABLE DES MATIÈRES GENERAL INFORMATION ........................7 APPLIANCE ............................8 ACCESSORIES ................................. 8 INSTALLATION ..........................9 STARTING THE MACHINE ............................9 AQUA PRIMA WATER FILTER ..........................11 CONTROL PANEL ...........................12 ADJUSTMENTS ..........................14 COFFEE VOLUME ADJUSTMENT PER CUP ......................14 DRIP TRAY HEIGHT ADJUSTMENT ........................14 COFFEE GRINDER ADJUSTMENT ........................
  • Page 7: General Information

    GENERAL INFORMATION - GÉNÉRALITÉS GENERAL INFORMATION This coffee machine is suitable for preparing espresso coffee using coffee beans and it is equipped with a device to dispense steam and hot water. The machine is designed for domestic use and is not suitable for heavy or professional use.
  • Page 8: Appliance

    APPLIANCE - APPAREIL Coffee bean hopper Coffee bean hopper cover Réservoir à café en grains Couvercle du réservoir à Cup stacking surface café en grains Plaque pour poser les tasses Control panel Power button Tableau de commande Interrupteur général E-Plus System Service door Porte de service Dispensing head...
  • Page 9: Installation

    INSTALLATION - MONTAGE STARTING THE MACHINE - MISE EN MARCHE DE LA MACHINE Make sure the power button is not pressed and the machine is turned off. Check the machine features on the label on the bottom of the appliance. S’assurer que l’interrupteur général ne soit pas actionné.
  • Page 10 INSTALLATION - MONTAGE The machine automatically primes the circuit. If this operation is not completed, proceed manually as described from step 7 to 12. La machine effectue automatiquement l’amorçage du circuit. Dans le cas où cette opération ne serait pas terminée, procéder manuellement comme décrit à...
  • Page 11: Aqua Prima Water Filter

    “AQUA PRIMA” WATER FILTER - “AQUA PRIMA” FILTRE “AQUA PRIMA” FILTER - FILTRE « AQUA PRIMA » To improve the quality of the water you use, it is recommended to install the “Aqua Prima” fi lter. Before using it, leave the fi lter immersed in the tank for 30 minutes. Pour améliorer la qualité...
  • Page 12: Control Panel

    CONTROL PANEL - TABLEAU DE COMMANDE Alarm light to empty the coffee grounds drawer: • permanently on: signals the need to empty the grounds drawer; this operation must be performed with the machine turned on (steps 1 and 2, page 27). DEL (diode lumineuse) alarme vider le marc : •...
  • Page 13 Machine ready light: • permanently on: signals that the machine is ready for use. • on and fl ashing: signals that the machine is warming up. DEL (diode lumineuse) machine prête : • allumée de manière fi xe : signale que la machine est prête à fonctionner ; •...
  • Page 14: Adjustments

    ADJUSTMENTS - RÉGLAGES COFFEE VOLUME ADJUSTMENT PER CUP QUANTITE DU CAFÉ EN TASSE The coffee volume knob adjusts the amount of coffee brewed per cup. This adjustment has an immediate effect on the selected type of brewing. Medium coffee Pour régler la quantité de café distribuée Café...
  • Page 15: Coffee Grinder Adjustment

    COFFEE GRINDER ADJUSTMENT - RÉGLAGE DU MOULIN The machine enables a slight adjustment of the coffee grinder. Coffee may be ground according to your own tastes. The adjustment must be performed by means of the pin located inside the coffee bean hopper. This must be pressed and turned using the supplied key only.
  • Page 16: Aroma" (Opti-Dose) Indicates The Coffee Dose Per Cup

    Strong aroma Arôme fort Your new Gaggia allows you to use any type of coffee bean available on the market, except for fl avored or caramelized beans. With some coffee blends, after selecting the coffee button, the coffee may not brew and the machine returns to the start status.
  • Page 17: Coffee Strength

    COFFEE STRENGTH - DENSITÉ DU CAFÉ The E-Plus System has been carefully designed to give your coffee the intense taste you desire. Simply turn the knob and you will notice that the coffee goes from mild intensity to strong intensity. E-PLUS SYSTEM - ESPRESSO PLUS SYSTEM To adjust the intensity of the brewed MEDIUM...
  • Page 18: Coffee Brewing

    COFFEE BREWING - DISTRIBUTION DE CAFÉ COFFEE BREWING - DISTRIBUTION DE CAFÉ The coffee brewing cycle can be interrupted at any moment by pushing the button. To brew 2 cups, the machine dispenses half of the entered quantity and briefl y interrupts dispensing in order to grind the second serving of coffee.
  • Page 19: Hot Water Dispensing

    HOT WATER DISPENSING DISTRIBUTION D’EAU CHAUDE HOT WATER DISPENSING - DISTRIBUTION D’EAU CHAUDE Dispensing may be preceded by short sprays of hot water, and scalding is possible. The hot water/steam spout may reach high temperatures: do not touch it with bare hands. Use the appropriate handle only.
  • Page 20: Cappuccino

    CAPPUCCINO Press the hot water button. Remove the container. Appuyer sur le bouton Retirer le bac contenant l’eau chaude. CAPPUCCINO Dispensing may be preceded by short sprays of hot water, and scalding is possible. The hot water/steam spout may reach high temperatures: do not touch it with bare hands. Use the appropriate handle only.
  • Page 21 Froth the milk by gently rotating Turn the knob until it is in the Turn the knob until the the container. rest position ( ). position is reached. Émulsionner le lait en faisant de Tourner le bouton jusqu’à la Tourner le bouton jusqu’au point légers mouvements de rotation.
  • Page 22: Milk Island (Optional)

    MILK ISLAND (OPTIONAL) - MILK ISLAND (EN OPTION) This device, which may be purchased separately, enables you to easily and comfortably prepare delicious cappuccinos. Warning: before using the Milk Island, read the manual and all precautions carefully for correct use. Important note: the quantity of milk in the jug must never be below the “MIN”...
  • Page 23 Wait for the milk to be frothed. Turn the knob until it is in the Remove the jug using the rest position ( ). handle. Attendre que le lait soit monté. Tourner le bouton jusqu’à la Prélever la carafe en la prenant position de repos ( ).
  • Page 24: Descaling

    DESCALING - DÉTARTRAGE DESCALING - DÉTARTRAGE When performing a descaling cycle, it is necessary to be present during the entire process (about 40 minutes). Caution! Do not use vinegar as a descaler. The descaling must be done when indicated by the machine. Use a non-toxic, non-harmful descaling solution.
  • Page 25 Press the hot water button. Turn the knob until it is in the Turn the knob until the rest position ( ). position is reached. Dispense Appuyer sur le bouton. the descaling solution into the Tourner le bouton jusqu’à la container for 15 seconds.
  • Page 26 DESCALING - DÉTARTRAGE Rinse and fi ll the tank with fresh Press the hot water button. Place a large container beneath drinking water. the steam spout. Appuyer sur le bouton. Rincer et remplir le réservoir Placer un récipient aux avec de l’eau fraîche potable. capacités adéquates sous la buse de vapeur.
  • Page 27: Cleaning And Maintenance

    CLEANING AND MAINTENANCE NETTOYAGE ET ENTRETIEN MAINTENANCE DURING OPERATION ENTRETIEN PENDANT LE FONCTIONNEMENT During normal operation, the message for emptying the coffee grounds may appear on the display (see page 12). This operation must be performed when the machine is on. Le message qui indique de vider le marc peut apparaître pendant le fonctionnement normal (voir page 12).
  • Page 28: How To Clean The Machine

    CLEANING AND MAINTENANCE NETTOYAGE ET ENTRETIEN HOW TO CLEAN THE MACHINE - NETTOYAGE DE LA MACHINE The machine must be cleaned at least once a week. Do not immerse the machine in water or place any of its parts in a dishwasher. Do not use alcohol, solvents, benzene and/or abrasive objects to clean the machine.
  • Page 29: Cleaning The Brew Group

    CLEANING THE BREW GROUP NETTOYER LE GROUPE DE DISTRIBUTION The Brew Group must be cleaned at least once a week. Before removing the Brew Group, remove the coffee grounds drawer as shown in fi g. 1 on page 27. Once you have washed and inserted the Brew Group, insert the grounds drawer and close the service door.
  • Page 30 CLEANING AND MAINTENANCE NETTOYAGE ET ENTRETIEN Apply the lubricant evenly on both Make sure the Brew Group is in Make sure the components are in side guides. rest position; the two references the correct position. must match. The hook shown must be in the Distribuer la graisse de façon correct position;...
  • Page 32: Troubleshooting

    TROUBLESHOOTING ROBLEMS AUSES OLUTIONS The machine does not turn on. The machine is not connected to the Connect the machine to the power power source. source. The plug has not been plugged into Insert the plug into the machine’s power the back of the machine.
  • Page 33: Problèmes - Causes - Remèdes

    PROBLÈMES - CAUSES - REMÈDES ROBLÈMES AUSES EMÈDES La machine ne s’allume pas La machine n’est pas branchée sur Brancher la machine sur le réseau le réseau électrique. électrique. La fi che n’est pas branchée sur la Brancher la fi che sur la prise de la prise située au dos de la machine.
  • Page 34: Safety Rules

    SAFETY RULES N CASE OF EMERGENCY Immediately unplug the cable from the outlet. SE THE APPLIANCE ONLY - Indoors. - To prepare coffee, dispense hot water, froth milk or heat beverages using steam. - For domestic use only. EVER USE THE APPLIANCE For purposes other than those indicated above, in order to avoid danger.
  • Page 35: Consignes De Sécurité

    CONSIGNES DE SÉCURITÉ ’ N CAS D URGENCE Débrancher immédiatement la fi che de la prise murale. ’ TILISER EXCLUSIVEMENT L APPAREIL - Dans un lieu fermé. - Pour la préparation de café, d’eau chaude, pour faire monter le lait ou pour réchauffer des boissons avec la vapeur.
  • Page 36 SAFETY RULES AILURES - Do not use the appliance in case of sure or suspected faults such as after falls. - Any repairs must be performed by an authorized customer service centre. - Do not use the appliance with a defective power cable. If damaged, the power cable must be replaced by the manufacturer or authorized service centre.
  • Page 37 CONSIGNES DE SÉCURITÉ tirant par le câble. - Attention ! Risque de brûlures au contact de l’eau chaude, de la vapeur et de la buse d’eau chaude/vapeur. ANNES - Ne pas utiliser l’appareil en cas de panne identifi ée ou suspecte, par ex. après une chute. - Les éventuelles réparations doivent être effectuées par un service d’assistance agréé.
  • Page 38: Technical Data

    TECHNICAL DATA - DONNÉES TECHNIQUES TECHNICAL DATA • Nominal voltage See label on the appliance • Power rating See label on the appliance • Power supply See label on the appliance • Shell material ABS - Thermoplastics • Size (w x h x d) 320 x 370 x 415 mm - 12.60 x 14.57 x 16.34 in •...
  • Page 39 EC DECLARATION OF CONFORMITY - EC 73/23, EC 89/336 - EC92/31, EC93/68 DECLARATION DE CONFORMITÉ CE - EC 73/23, EC 89/336 - EC92/31, EC93/68 Gaggia s.p.a. Strada prov. per Abbiategrasso, snc - 20087 Robecco sul Naviglio - Milano . Italy declare under our responsability that the product: - déclarons sous notre responsabilité...
  • Page 40 GAGGIA S.p.A. 20087 Robecco sul Naviglio - MI - Italia Tel. 02 94 99 31 Fax 02 94 70 888 The manufacturer reserves the right to change the features of the product without prior notice. Le producteur se réserve le droit d“apporter toutes modifications sans préavis.
