Citronic RU26H User Manual

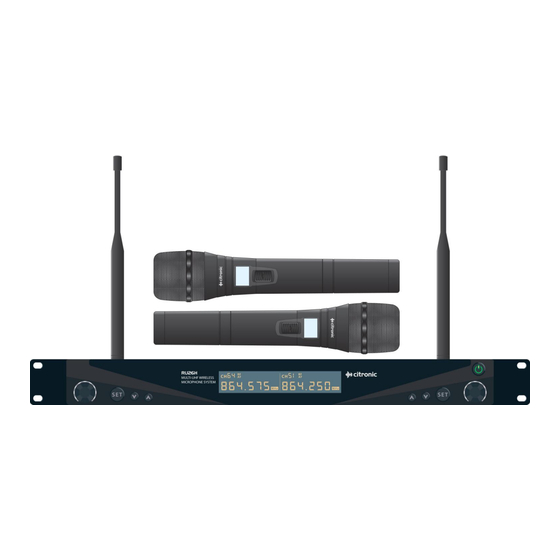

Dual multi-uhf wireless system

Table of Contents

Download this manual

RU26H

Dual Multi-UHF Wireless System

Item ref: 171.860

User Manual

Version 1.0

Table of Contents

Need help?

Do you have a question about the RU26H and is the answer not in the manual?

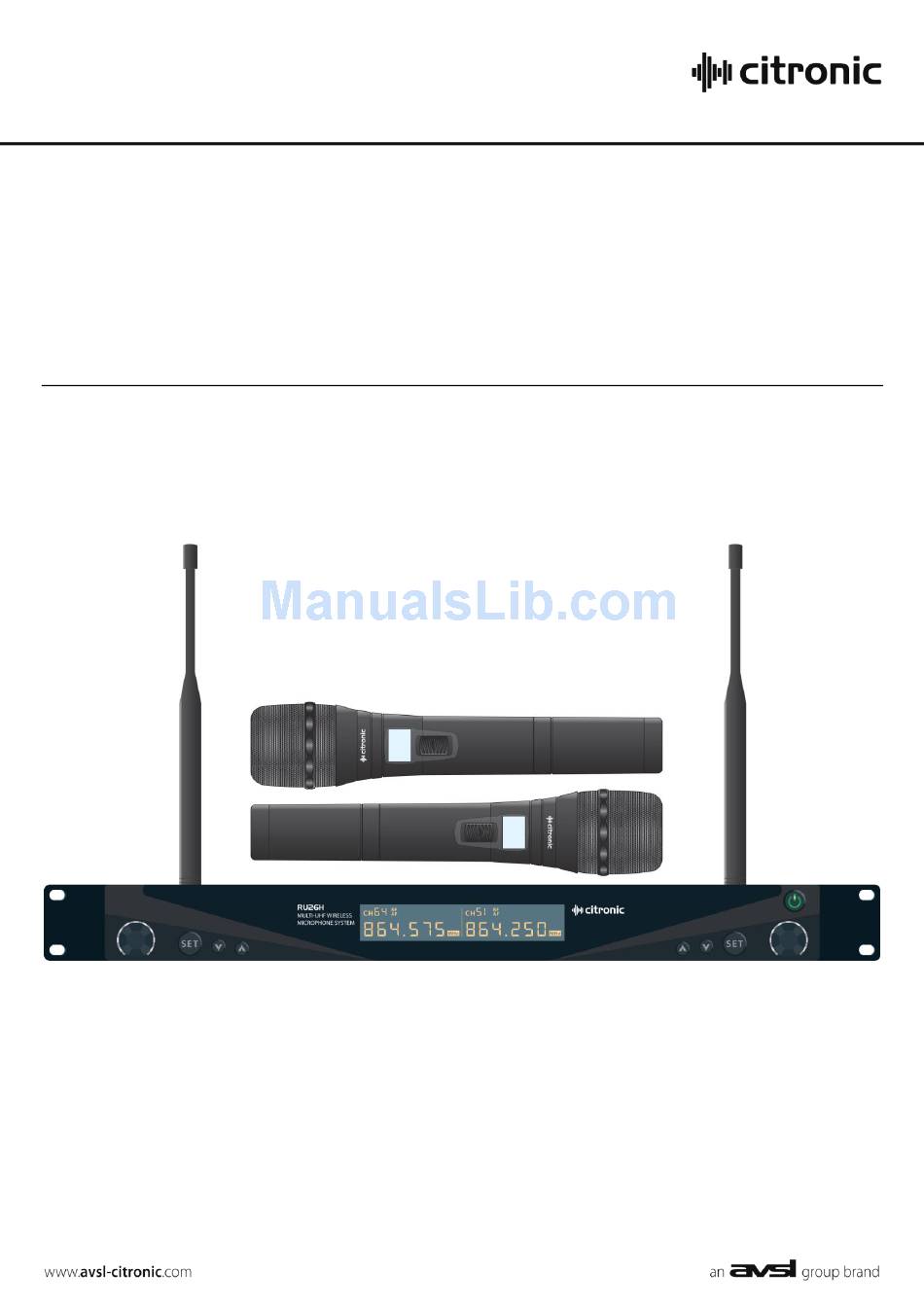

Page 1 RU26H Dual Multi-UHF Wireless System Item ref: 171.860 User Manual Version 1.0...
Page 2 Introduction Thank you for choosing the Citronic RU26H wireless system. This professional wireless set provides 2 high quality microphones with PLL tuned UHF radio system for freedom of movement without loss of audio quality. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase.
Page 3 Control Layout 1. Backlit LCD display 2. Frequency Up button 3. Frequency Down button 4. Infra Red Frequency Set button 5. Channel Volume rotary control 6. Power button 7. Antenna front mounting aperture 8. Backlit transmitter display 9. Off – Mute – On switch 10.
Page 4 Position the receiver within the best available line of sight to the transmitter(s) and connect the DC jack of the supplied power adapter to the receiver and the plug-top to the mains outlet. Press and hold the Power button until the display lights, showing the channel, frequency and RF/AF (carrier/audio) status for each microphone.
Page 5: Specifications
