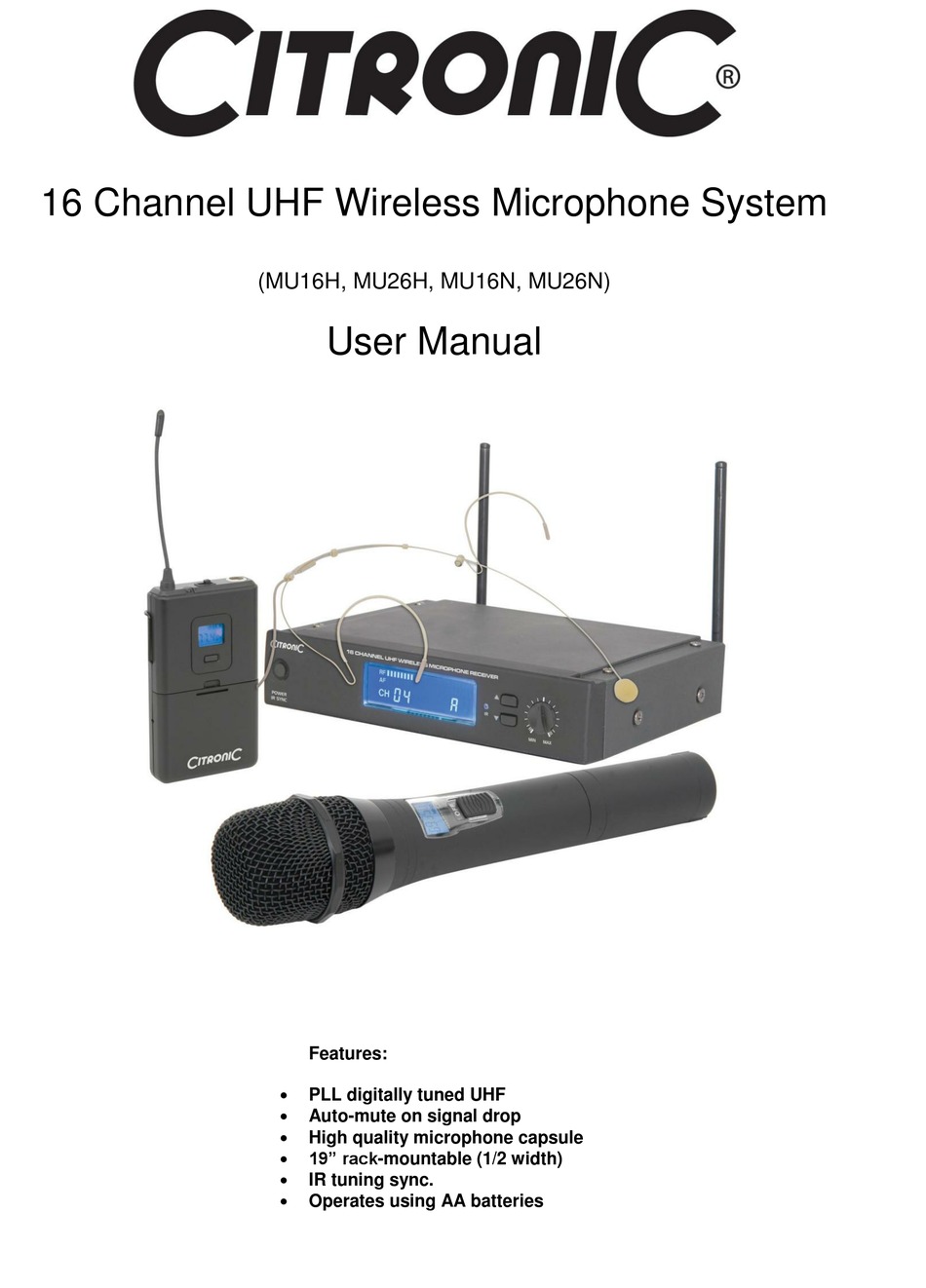

Page 1: User Manual
16 Channel UHF Wireless Microphone System (MU16H, MU26H, MU16N, MU26N) User Manual Features: PLL digitally tuned UHF Auto-mute on signal drop High quality microphone capsule 19” rack-mountable (1/2 width) IR tuning sync. Operates using AA batteries... -
Page 2: Handheld Transmitter
Introduction: Thank you for choosing the Citronic 16 channel UHF-series wireless system. This professional wireless set provides a high quality microphone with a tuneable PLL UHF radio system for ultimate wireless quality and versatility. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase. - Page 3 Receiver Rear Panel 1. Antennae (detachable BNC) 2. Power adapter input 3. Balanced XLR output 4. Unbalanced 6.3mm jack output Receiver Front Panel 1. Power / IR Sync. button 2. Channel A volume control 3. Channel A frequency up/down 4. Backlit LCD display 5.
- Page 4 Power / IR SYNC, Channel volume(s), Frequency up/down Indicators Backlit LCD with Channel, RF and AF levels Dimensions 45 x 200 x 175mm Weight 905g HANDHELD TRANSMITTER (MU16H, MU26H) Battery 3Vdc (2 x AA) Switch Power / Mute / On RF emission <10mW Dynamic –...
-
Page 5: Troubleshooting
Microphone output is very low Ensure that Jack output is not fed to a Mic input Ensure that Sensitivity switch is not set to Instrument level Check transmitter batteries Note: for further troubleshooting, refer equipment to qualified service personnel for testing © Citronic 2011...
