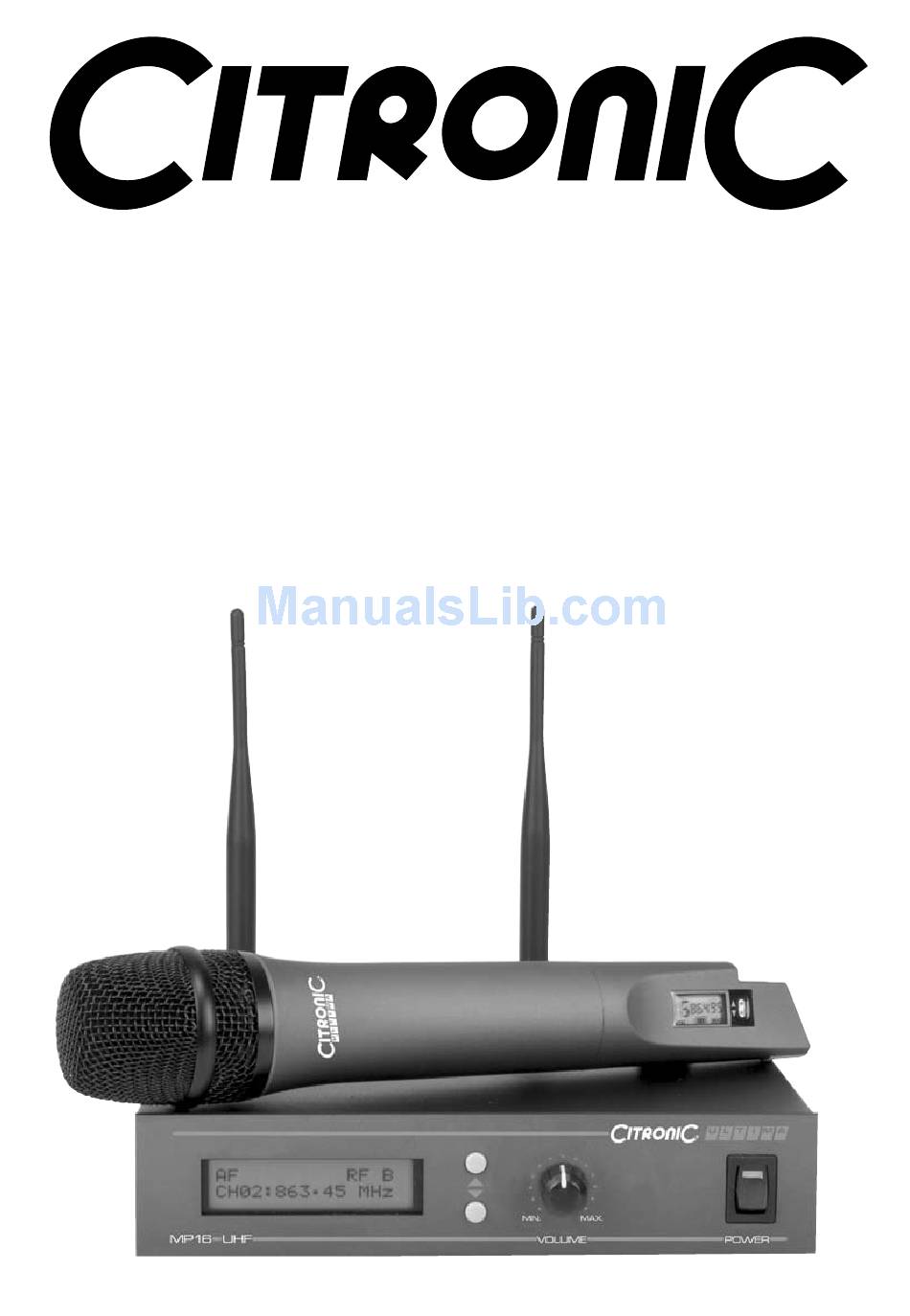

- Page 1 MP16UHF 16-CHANNEL UHF SYNTHESIZED WIRELESS MICROPHONE DIVERSITY SYSTEM 171.329...
- Page 2 UHF PLL MULTI CHANNELS WIRELESS MICROPHONE SYSTEM Thank you for selecting our UHF PLL Synthesised Wireless System. Before operation please read this instruction manual carefully in order to attain the correct operating procedures and achieve the best results. This UHF wireless receiver is with advanced PLL synthesised circuit which can eliminate the random noise interference effectively when the receiver is at standby state.
-
Page 3: Installation Of The Receiver
(1) Antenna Input Connector. (2) Power switch: When switch is turned on, LCD panel will light to indicate normal power status. (3) Channel selector. (4) LCD panel: it displays channel no., frequency. (5) Volume control. (6) Balanced Audio Output Jack. (7) Unbalanced Audio Output Jack. - Page 4 3.OPERATION OF THE RECEIVER 1. Pull out antenna A & B. Make them to be perpendicular with the machine. 2. Connect input connector of AC/DC adapter to power source. Connect output connector to receiver rear panel DC input jack (8). Make sure the power source voltage is same as marked voltage on the rear panel 3.
- Page 5 5. OPTIONAL TRANSMITTER/HEADSET MIC (171.335) 6. OPERATION OF THE TRANSMITTER 1. Unscrew the battery compartment then put in a 9V battery. Attention: The polarity should be right. 2.Turn on the transmitter. LCD panel will light. If LCD panel does not light, check the battery to see if the voltage is low or the battery is not installed correctly.
-
Page 6: Troubleshooting
6. TROUBLESHOOTING 1. Turn on the receiver, but the indicator does not light. -Make sure the power cable is well fixed and the socket is in good condition. -Check if the fuse is blown. 2. When you speak, the "AF" light twinkles but no sound output. -Check if the volume is in lowest place or the audio cable is not fixed well. - Page 7 3.TRASNMITTER TRANSMITTING POWER: 8.5mW MODULATION TYPE: FM, F3F MAX DEVIATION: 25kHz SPURIOUS EMISSION: >40dB (WITH CARRIER) POWER SUPPLY: 9V battery BATTERY LIFE: 6 hours (GP) 1604s 9V battery NOISE CONTROL: perfect circuit for eliminating noise 8. IMPORTANT SAFEGUARDS 1.Avoid putting the main machine in a blind angle when it is used. This is to keep signal reception in good condition.
