Anton/Bauer DT-500 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Approved Copy
®
DT-500
Power Supply
A7595-0350 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anton/Bauer DT-500

Summary of Contents for Anton/Bauer DT-500

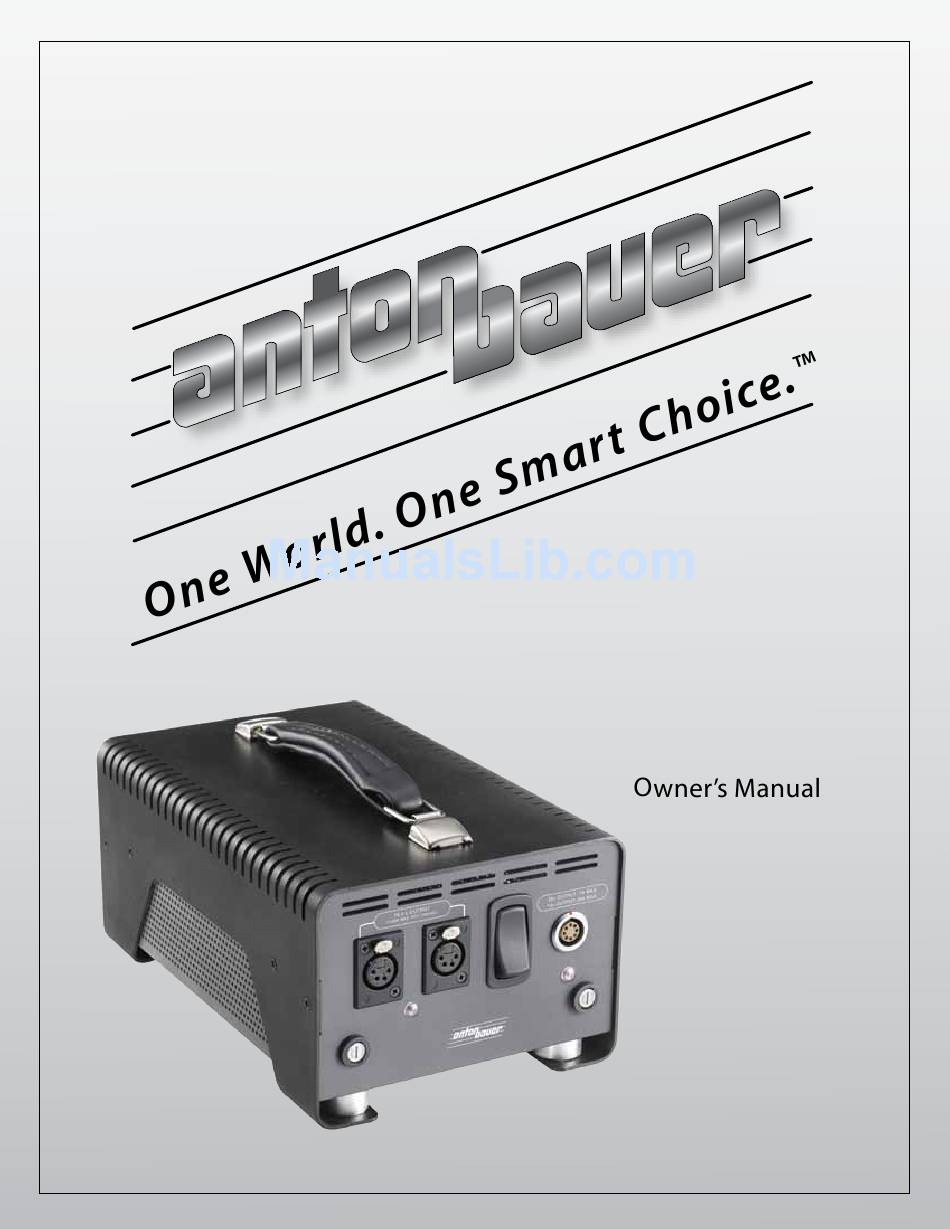

  • Page 1 Approved Copy ® DT-500 Power Supply A7595-0350 Rev B...
  • Page 2 Approved Copy TABLE OF CONTENTS INTRODUCTION FEATURES SAFEGUARDS GROUNDING/EARTHING FCC NOTICE APPLICATION OPERATION SPECIFICATIONS RESETTABLE BREAKER SERVICE LIMITED WARRANTY...

  • Page 3: Fcc Notice

    Approved Copy INTRODUCTION GROUNDING/EARTHING IMPORTANT WARNING: THIS APPARATUS The DT-500 is a 500w power supply designed to meet the high power demands of digital cinematography. Specifically asked for by SONY ® MUST BE EARTHED. Electronics, the DT-500 is able to power the F23 and F35 digital cameras.
  • Page 4 The 15v and 28v outputs of the DT-500 are fused individually. A maximum of 20 amps can be used in the 14.4v mode (10 amps per channel) and 7 amps in the 28v mode. A push button reset for each output (15v and 28v) is located on the front of the DT-500. See Figure 2.

  • Page 5: Specifications

    Please note the polarity of each connector before plugging in any Size: 10.73 x 7.01 x 5.81 inches power cable. Serious damage can be done to the DT-500 or the piece (27.3 cm x 17.9 cm x 14.8 cm) of equipment being powered.

  • Page 6: Limited Warranty

    14 Progress Drive, Shelton, Connecticut 06484. If you (the purchaser Superior Court in Fairfield County, Connecticut, USA. Some states do of the Product from Anton/Bauer, or the person for whom the Product not allow limitations on how long a warranty lasts, so the time period was purchased, if it was a gift) have any questions regarding Product limitation herein may not apply to you.
  • Page 7 Approved Copy The following are trademarks of Anton/Bauer, Inc.: Anton/Bauer, Anton/Bauer logo and parallelogram design, Aspekt, Automatique, DataTap, DIONIC, Elipz, Egripz, Elightz, Essentialz, Gold Mount, HubZ, HyTRON, Impac, Interactive and design, LifeSaver, Logic Series, Logic Series Logo, Maxx man logo design, Nexus, PowerStrap, Proformer, Probe, ProPac, RealTime, Satellight, Snap-On, Stasis, Stasis Flex, Tandem, TrimPac, Ultrakit, Ultralight, “One World.
