Summary of Contents for Anton/Bauer T2

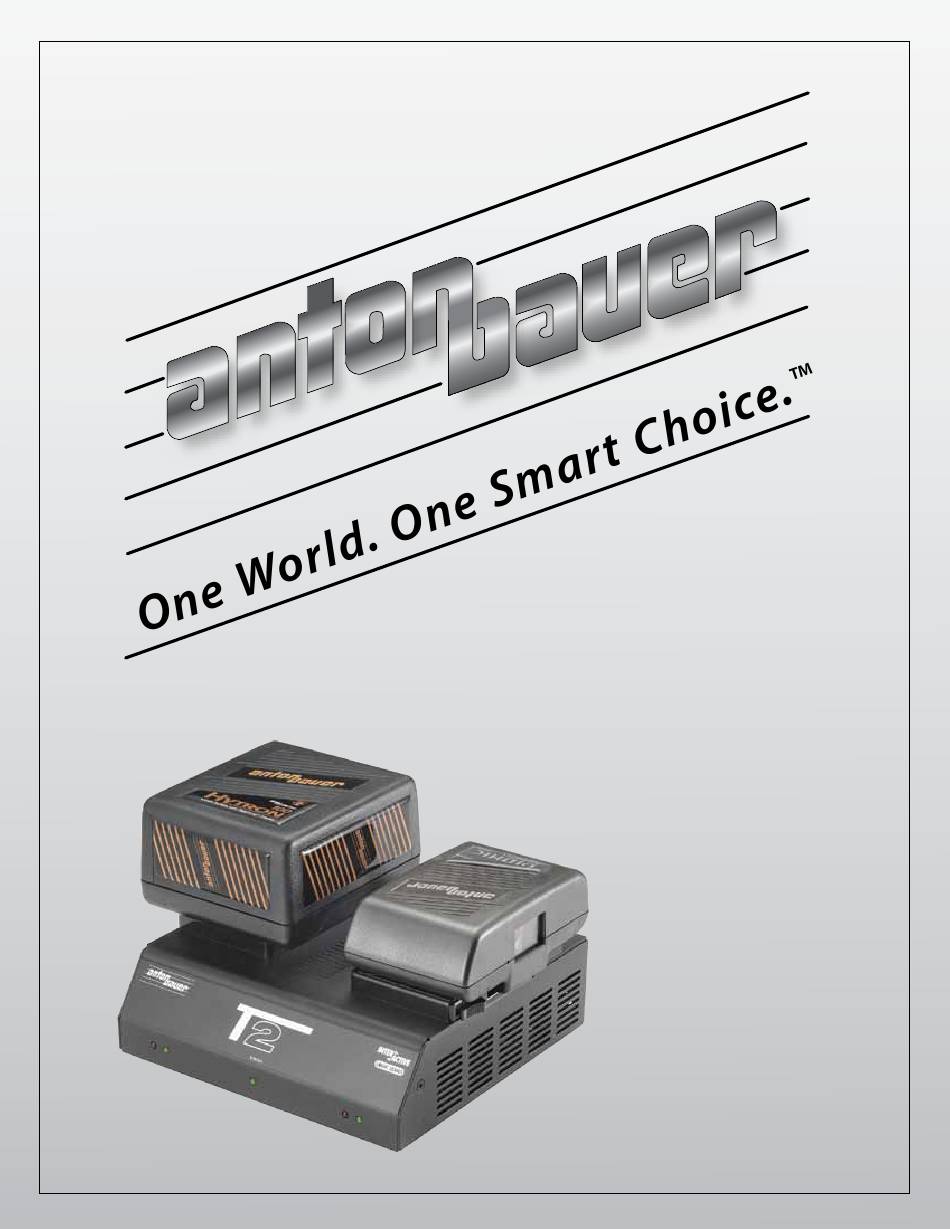

- Page 1 Approved Copy ® Charger/Power Supply Owner’s Manual A7595-0238 Rev K...
-
Page 2: Table Of Contents
Approved Copy TABLE OF CONTENTS INTRODUCTION FEATURES SAFEGUARDS GROUNDING/EARTHING OPERATION Charging Applications Three Stage Charging Methodology Led Indications OPERATION AS DC CAMERA SUPPLY FROM MAINS FCC NOTICE SPECIFICATIONS FUSE/TYPE REPLACEMENT WARRANTY... -
Page 3: Introduction
Approved Copy INTRODUCTION GROUNDING/EARTHING IMPORTANT WARNING: THIS APPARATUS MUST The T2 is a simultaneous 2 position InterActive fast charger with ® BE EARTHED. 70 watt DC camera power supply. It incorporates all of the Logic Series circuits that are employed in every Anton/Bauer charger. -
Page 4: Operation
THREE STAGE CHARGING METHODOLOGY to about 95% of its capacity. In general, the T2 will deliver a three stage charge routine to each battery. 4. NOTE: Batteries may be kept on a charger until ready for use. The 1. -
Page 5: Led Indications
LED INDICATIONS The T2 has two sets of three LEDs (one red, two green). The green status LED indicates: Steady green – line voltage is present with no power drawn through camera output; Flashing green - line voltage is present, powering camera; Off – line voltage not present, camera powered by battery, if there is a battery presently mounted on T2. -
Page 6: Operation As Dc Camera Supply From Mains
Move the switch located next to the connector to the “CAMERA” position. The T2 will remember the point at which it left its charge routine for the battery positioned on the right side of the charger. The left side of the charger will continue as a dedicated charging position, regardless of the selected function of the right side of the T2. -
Page 7: Warranty
Approved Copy LIMITED WARRANTY This one (1) year limited warranty for the product specified in this Connecticut. Should any action of law or in equity be brought by any document (“Product”) is given by Anton/Bauer, Inc. (“Anton/Bauer”), person under this Warranty, such action shall be brought only in the 14 Progress Drive, Shelton, Connecticut 06484. - Page 8 Approved Copy The following are trademarks of Anton/Bauer, Inc.: Anton/Bauer, Anton/Bauer logo and parallelogram design, Aspekt, Automatique, DataTap, DIONIC, Elipz, Egripz, Elightz, Essentialz, Gold Mount, HubZ, HyTRON, Impac, Interactive and design, LifeSaver, Logic Series, Logic Series Logo, Maxx man logo design, Nexus, PowerStrap, Proformer, Probe, ProPac, RealTime, Satellight, Snap-On, Stasis, Stasis Flex, Tandem, TrimPac, Ultrakit, Ultralight, “One World.
