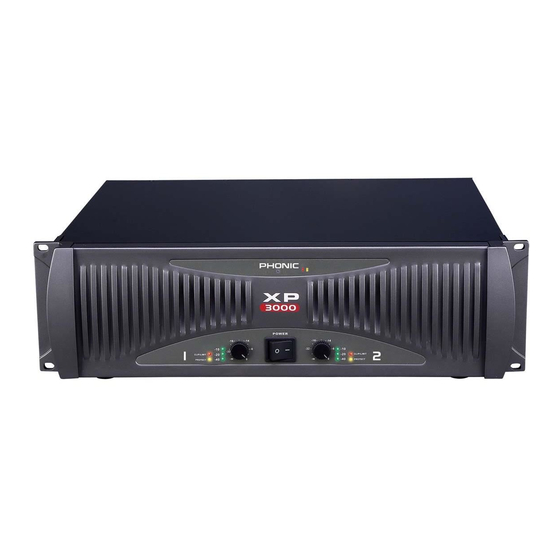

Phonic XP 3000 Service Manual

Hide thumbs

Advertisement

POWER AMPLIFIER
XP 3000
3000/3000(B)
SERVICE MANUAL
SERVICE MANUAL

Advertisement

loading

  Also See for Phonic XP 3000

  Related Manuals for Phonic XP 3000

  Summary of Contents for Phonic XP 3000

  • Page 1 POWER AMPLIFIER XP 3000 3000/3000(B) SERVICE MANUAL SERVICE MANUAL...
  • Page 3: Table Of Contents

    DIMEMISIONS...........31 POWER SUPPLY PCB......15 POWER SUPPLY SCHEMATIC-1..16 POWER SUPPLY SCHEMATIC-2..17 POWER SUPPLY PCB-PART LIST..18 Phonic reserves the right to improve or alter any information supplied within this document without prior notice. V1.1 08/01/02 XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page 3...
  • Page 4: Panel Layout

    PANEL LAYOUT XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page LM...
  • Page 5 SYSTEM BLOCK DIAGRAM SYSTEM BLOCK DIAGRAM S y s t e mb l o c kd i a g r a m XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page 5...
  • Page 6: Power Amplifier Pcb

    Q308 R17B R12B C317 R18B Q311 R16B Q310 R327 C308 C304 R328 D302 R340 Q307 1.P_IN 2.AGND 3.OP_O 4.AGND 5.+15V R341 6.-15V CN17 D306 R331 C311 R335 R333 R334 R338 C310 R337 XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page LM...
  • Page 7: Amplifier Input Schematic

    AMPLIFIER INPUT SCHEMATIC AMPLIFIER INPUT SCHEMATIC AMPLIFIER INPUT SCHEMATIC XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page 7...
  • Page 8: Amplifier Output Schematic

    AMPLIFIER OUTPUT SCHEMATIC AMPLIFIER OUTPUT AMPLIFIER OUTPUT SCHEMATIC XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page LM...
  • Page 9: Power Amplifier Schematic

    POWER AMPLIFIER SCHEMATIC POWER AMPLIFIER SCHEMATIC POWER AMPLIFIER SCHEMATIC XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page 9...
  • Page 10: Power Amplifier Pcb-Part List

    POWER AMPLIFIER PCB-PART LIST POWER AMPLIFIER PCB-PART LIST Ref. Phonic Part No. Specifications R281 003-10071-602-0 CEMENT RES. 10 J 2W P R316 003-22071-602-0 CEMENT RES. 22 J 2W R4B-10B.22B-28B 003-22093-601-0 CEMENT RES. 0.22 J 5W R13B-16B.241.242.243.244.245.2 003-22093-602-0 CEMENT RES. 0.22 J 5W 46.248-253...
  • Page 11: Power Amplifier Pcb-Part List

    POWER AMPLIFIER PCB-PART LIST POWER AMPLIFER PCB-PART LIST Ref. Phonic Part No. Specifications IC201 160-00021-900-0 IC NJM5534D JRC 210-10090-001-0 TMP/SW US-602SXRFQC CN14.17 211-10021-150-0 2P WAFER/S 5267 A2505 WV P=2.5MM 180DEGREE CN15 211-10021-161-0 2P WAFER/S TJC3-2A P=2.5MM 180DEGREE CN6.10 211-10061-171-0 6P WAFER/S TJC3-6A P=2.5mm...
  • Page 12 POWER AMPLIFIER PCB-PART LIST POWER AMPLIFER PCB-PART LIST Ref. Phonic Part No. Specifications R203.204.212.216.217.219.279.3 006-10012-420-0 MF RES. 1K F 0.25W M R208.211.265.267.276.304.324.33 006-10022-420-0 MF RES. 10K F 0.25W M 1.332.339 R202.308.327.334 006-10032-420-0 MF RES. 100K F 0.25WM R207 006-10072-420-0 MF RES. 10F 0.25W M R330.2A...
  • Page 13 POWER AMPLIFIER PCB-PART LIST POWER AMPLIFER PCB-PART LIST Ref. Phonic Part No. Specifications C222 042-03020-000-0 C/C2 3PF C 50V 5 C220.221 042-10124-050-0 C/C2 100PF J 50V T C207.209.225 042-10225-050-0 C/C2 0.001MF K 50V 5 T C214.215 042-10345-160-6 C/C2 0.01UF K 100V T C1A.231.315.316...
  • Page 14: Power Supply Pcb

    2.-100V 3.PGND 4.+65V 5.-65V 6.PGND 7.VAC 8.V+ R116 LM7815 LM7915 CAUTION: TO REDUCE THE RISK OF FIRE BEPLACE ONLY WITH SAME TYPE FUSE ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MENE TYPE XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page LM...
  • Page 15: Power Supply Schematic-1

    POWER SUPPLY SCHEMATIC-1 POWER SUPPLY SCHEMATIC-1 POWER SUPPLY SCHEMATIC-1 XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page 15...
  • Page 16: Power Supply Schematic-2

    POWER SUPPLY SCHEMATIC-2 POWER SUPPLY SCHEMATIC-2 POWER SUPPLY SCHEMATIC-2 XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page LM...
  • Page 17 POWER SUPPLY PCB-PART LIST POWER SUPPLY PCB-PART LIST Ref. Phonic Part No. Specifications 005-10127-100-0 MOF RES. 100OHM 2W P MF RES.33K F 0.5W M 006-33023-420-0 R4.5.6.7 R145.145A.145B 006-56003-420-0 MF RES. 560 F 0.5W M NTC1.2.3 012-400B0-000-0 NTC THERMISTORS N15SP004 C9.10...
  • Page 18: Power Supply Pcb-Part List

    POWER SUPPLY PCB-PART LIST POWER SUPPLY PCB-PART LIST Ref. Phonic Part No. Specifications 212-10032-490-6 3P WAFER/P 440MM 212-10041-220-0 4P WAFER/P 500MM JP9A 212-10090-440-0 9P WAFER/P 250MM UL1015#16 PITCH=3.96MM JP9B 212-10090-450-0 9P WAFER/P 350MM UL1015#16 PITCH=3.96MM FUSE1*2.FUSE2*2 281-00000-020-0 FUSE CLIP FH-1206 FIX IC1.2...
  • Page 19 POWER SUPPLY PCB-PART LIST POWER SUPPLY PCB-PART LIST Ref. Phonic Part No. Specifications VR1.VR2 023-50230-040-0 D.ROT/VR 5KA 20MM P Ref. Phonic Part No. Specifications D101.102 090-10000-000-0 B/DIODE PB154 LED101.102.301A.301B 100-00010-030-0 LED BL-B5141 RED LED305A.305B 100-00040-000-0 LED 204YD YLW LED302A.302B.303A.303B.304A. 100-00050-000-0...
  • Page 20: Ch1/Ch2 Control Pcb

    CH1/CH2 CONTROL PCB CH1/CH2 CONTROL PCB Q305A R312A R312B Q305B Q304A Q304B R313A R314B R314A R313B 290-34640-304-0 PIII INPUT_D.PCB REV A JK3A JK2A C122 CDS1 CDS2 D102 D101 LED102 LED101 C111 C145 XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page LM...
  • Page 21: Ch1/Ch2 Control Schematic-1

    CH1/CH2 CONTROL SCHEMATIC-1 CH1/CH2 CONTROL SCHEMATIC-1 XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page 21...
  • Page 22: Ch1/Ch2 Control Schematic-2

    CH1/CH2 CONTROL SCHEMATIC-2 CH1/CH2 CONTROL SCHEMATIC-2 CH1/CH2 CONTROL SCHEMATIC-2 XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page LM...
  • Page 23: Ch1/Ch2 Control Pcb-Partlist

    CH1/CH2 CONTROL SCHEMATIC-2 CH1/CH2 CONTROL PCB-PART LIST Ref. Phonic Part No. Specifications R117.138.309A.309B 008-01032-600-0 CHIP RES. 10K J 0603 R101.103.122.124.345A.345B 008-01042-600-0 CHIP RES. 100K J 0603 R108.129 008-01232-600-0 CHIP RES. 12K J 0603 R311A.311B 008-01242-600-0 CHIP RES. 120K J 0603 R120.141...
  • Page 24 CH1/CH2 CONTROL SCHEMATIC-2 CH1/CH2 CONTROL PCB-PART LIST Ref. Phonic Part No. Specifications R312A.312B.313A.313B.314A.31 006-10012-420-0 MF RES. 1K F 0.25W M R153 006-10073-420-0 MF RES. 10F 0.5W M C145 030-10484-000-0 E/C 0.1MF J 100V 5 C109.120.123.134 030-22628-0A0-0 E/C 22MF Z 16V 5*11 T C111.122...
  • Page 25: Miscellaneous Items

    MISCELLANEOUS ITEMS MISCELLANEOUS ITEMS Ref. Phonic Part No. Specifications POWER SW 210-03201-080-0 SSA/SW PL2-2-21-C-2-BK/BK-P2 BREAKER 210-1400 -000-0 BREAKER 0A 211-17000-410-0 BINDING POST BP-47-2P 212-10010-650-0 1P WAFER/P 100MM UL1015#14 RED PIN2 212-10010-660-0 1P WAFER/P 150MM UL1015#14 ORANGE PIN4 212-10010-670-0 1P WAFER/P 150MM...
  • Page 26: Miscellaneolus Items

    GND LABEL MAR2 573-20340-001-0 LABEL D25 BLK 573-20390-034-0 PVC PANEL XP2000/3000 573-20390-035-0 PVC PANEL XP2000B/3000B 573-20391-030-0 LABEL PIII3000 SIZE:233.69*15.6 573-60240-000-0 BAR CODE LABEL PHONIC 573-60343-000-0 LABEL BLUE D=8mm 573-60355-001-0 POWER OUT LABEL XP3000 573-60356-001-0 POWER OUT LABEL XP3000B 574-34640-111-0 OWN. MANU.
  • Page 27 MISCELLANEOUS ITEMS MISCELLANEOUS ITEMS Ref. Phonic Part No. Specifications FIX VR PCB&PANEL*4 FIX PWR 590-33008-200-0 M/E RUD SCR. M3.0*8 BLK PCB&BOT COVER*5 LED PCB*2 FIX PANEL&HEADLE*6 590-44008-200-0 M/E PAN SCR. M4.0*8 BLK GND SCREW FIX BOT COV 590-44010-200-0 M/E PAN SCR M4*10 BLK...
  • Page 28 MISCELLANEOUS ITEMS MISCELLANEOUS ITEMS Ref. Phonic Part No. Specifications S34-63000-000-0 XP2000/3000(B) MATERIAL 510-20930-103-F [PANEL XP2000/3000(B) 511-20620-102-F BACK PANEL XP2000/3000(B) 516-20430-102-F TOP COV XP2000/3000(B) 600/1000 XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page LM...
  • Page 29 POWER REQUIREMENT CLASSIFICATION POWER REQUIREMENT ITEMS Ref. Phonic Part No. Specifications 240VAC BS 070-20438-800-0 X’ MER MAR2000 PIII3000 280-20263-000-0 FUSE T2A 250V VDE S 370-26640-432-6 P/CORD 250V/15A 2.5M 3P 527-11000-000-0 STR.REL BUSHING 6W3-4 R (6N3-4) ] 100VAC JIS 070-20570-600-0 X’ MER 100V JIS PIII3000...
  • Page 30: Dimemisions

    DIMEMSIONS DIMEMSIONS XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page LM...
  • Page 31 XP3000/3000(B) S ERVICE MANUAL PHONIC CORPORATION Page 31...

This manual is also suitable for:

Xp 3000(b)Xp 3000b
