True blue power TI250 Series Installation Manual And Operating Instructions

Static electrical power inverter
Hide thumbs Also See for TI250 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
®
True Blue Power
is a division of Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
th
9400 E. 34
Street N.
Wichita, KS 67226

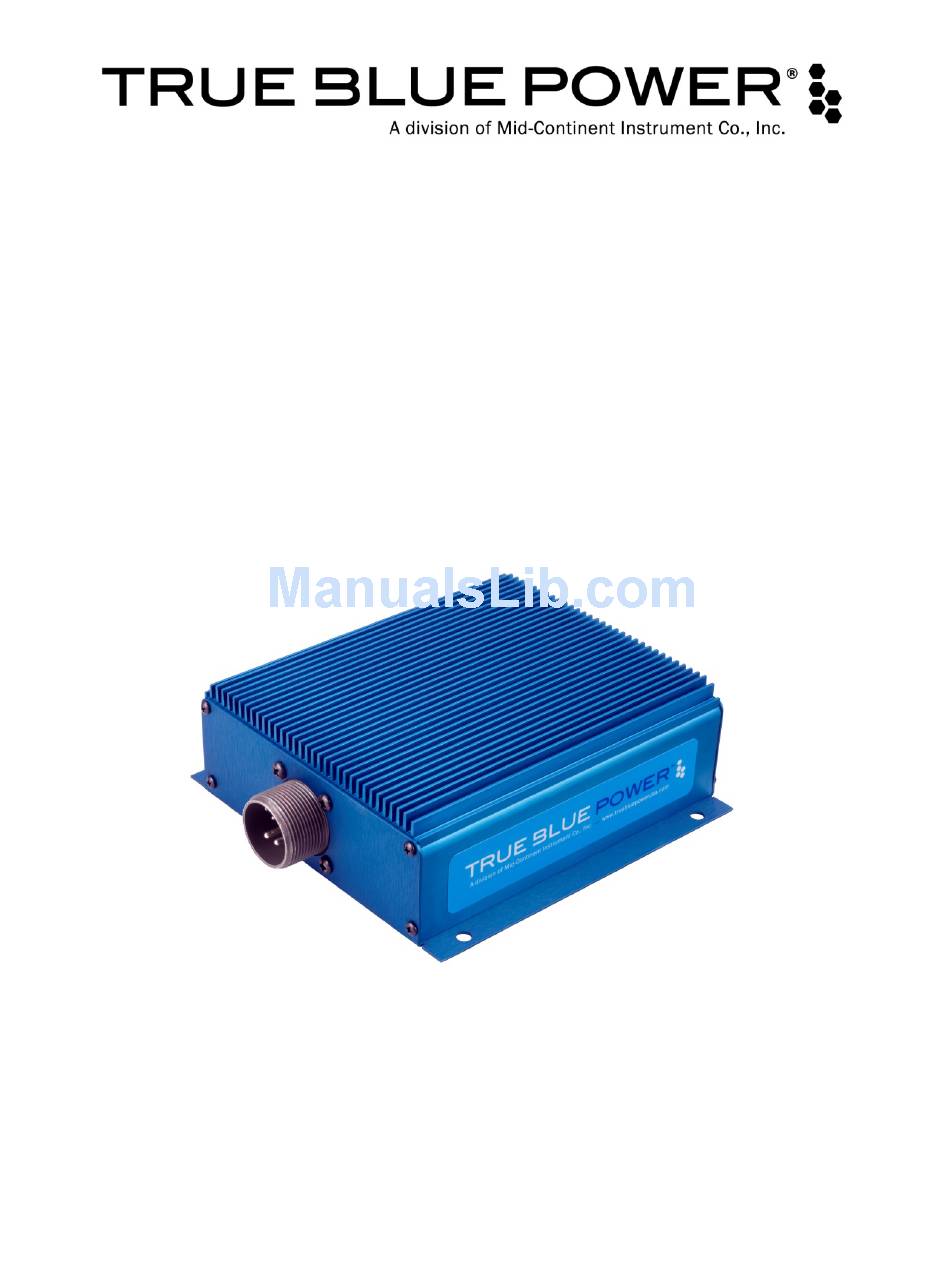

INSTALLATION MANUAL AND
OPERATING INSTRUCTIONS
TI250-( ) Series
Static Electrical Power Inverter
Manual Number 9018067
Rev. B, February 11, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI250 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True blue power TI250 Series

Summary of Contents for True blue power TI250 Series

  • Page 1 INSTALLATION MANUAL AND OPERATING INSTRUCTIONS TI250-( ) Series Static Electrical Power Inverter ® True Blue Power is a division of Mid-Continent Instrument Co., Inc. Mid-Continent Instrument Co., Inc. dba Mid-Continent Instruments and Avionics 9400 E. 34 Street N. Manual Number 9018067 Wichita, KS 67226 Rev.
  • Page 2 True Blue Power, Wichita, KS FOREWORD This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment. If further information is required, please contact: True Blue Power c/o Mid-Continent Instrument Co., Inc.
  • Page 3 True Blue Power, Wichita, KS REVISION DETAIL Rev. Date Approved Detail 12/10/13 Initial release. 2/11/14 Revised Technical Specifications. REV. B February 11, 2014 Manual Number 9018067...

  • Page 4: Table Of Contents

    True Blue Power, Wichita, KS TABLE OF CONTENTS SECTION 1 GENERAL DESCRIPTION INTRODUCTION TECHNICAL SPECIFICATIONS 1.2.1 ELECTRICAL ATTRIBUTES 1.2.2 PHYSICAL ATTRIBUTES 1.2.3 QUALIFICATIONS SECTION 2 INSTALLATION CONSIDERATIONS COOLING EQUIPMENT LOCATION ROUTING OF CABLES LIMITATIONS SECTION 3 INSTALLATION PROCEDURE GENERAL INFORMATION...

  • Page 5: General Description

    115VAC. The TI250 series Inverter is FAA certified to TSO C73 and tested to rigorous environmental standards and levels of RTCA DO-160. The small size and light weight in conjunction with its installation flexibility (inside or outside the pressure vessel) make it an ideal choice for aircraft power needs while reducing the challenges associated with other similar products.

  • Page 6: Cooling

    LIMITATIONS The TI250 Series of static electric power inverters is certified to FAA TSO-C73 with the following limitations identified: 1) Alternating current (AC) output is provided at 115 volts and 60 hertz in lieu of 115 volts and 400 hertz as identified in the MPS of the TSO.

  • Page 7: Installation Procedure

    True Blue Power, Wichita, KS SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION This section contains interconnect diagrams, mounting dimensions and other information pertaining to the installation of the TI250 Static Inverter. After installation of cabling and before installation of the equipment, ensure that power is applied only to the pins specified in the interconnect diagram.
  • Page 8 True Blue Power, Wichita, KS INVERTER AC OUPUT: Pin B – AC Output 115VAC, 60Hz. Used for powering devices where terrestrial/utility power designations are used, pin B can be connected as “Line” or “Hot”. Pin C – AC Return 115VAC, 60Hz. Used for powering devices where terrestrial/utility power designations are used, pin C can be connected as “Neutral”.
  • Page 9 True Blue Power, Wichita, KS FIGURE 3.4A: Typical Small Aircraft Minimum Wiring Installation FIGURE 3.4B: Typical Aircraft Wiring Installation REV. B February 11, 2014 Manual Number 9018067...
  • Page 10 True Blue Power, Wichita, KS FIGURE 3.4C: Typical Aircraft Fixed-Application Installation FIGURE 3.4D: Fully-Integrated Multi-Inverter Aircraft Cabin System REV. B February 11, 2014 Manual Number 9018067...

  • Page 11: Harness Verification

    True Blue Power, Wichita, KS 3.3.3 EXAMPLE WIRING DIAGRAMS The inverter is flexible in the wiring installation allowing for it to be integrated into the aircraft according to the application needs. Several examples are shown in the diagrams. 3.3.4 HARNESS VERIFICATION...
  • Page 12 True Blue Power, Wichita, KS 5.50 4.75 (4X) Ø Ø.22 10-32 Mounting Holes 5.94 Connector per MS3102A-18-9P FIGURE 3.5 TI250 OUTLINE DRAWING REV. B February 11, 2014 Manual Number 9018067...

  • Page 13: Operation

    OPERATION ELECTRICAL PERFORMANCE The TI250 series Static Inverter converts a direct current (DC) voltage input to a regulated 115 volt alternating current (VAC) output. The output is controlled to a frequency of 60 Hertz and represents a pure sine wave with minimal distortion. The unit is capable of providing 250 watts to power a variety of aircraft accessories including laptops, personal electronics, and onboard systems.
  • Page 14 True Blue Power, Wichita, KS The inverter monitors the AC output on a pulse-by-pulse scenario to determine a short-circuit or over-current situation. If detected, the output is limited by clipping the AC sine waveform, limiting the power output. If the short-circuit or over-current situation continues for more than a few seconds, the inverter will turn-off the AC output and indicate a fault on the fault output line.

  • Page 15: Conformance

    True Blue Power, Wichita, KS SECTION 5 CONFORMANCE INSTRUCTIONS FOR CONTINUED AIRWORTHINESS No periodic scheduled maintenance or calibration is necessary for continued airworthiness of the TI250 series Static Inverter. If the unit fails to perform to specifications, the unit must be removed and serviced by Mid-Continent Instruments and Avionics or their authorized designee.
