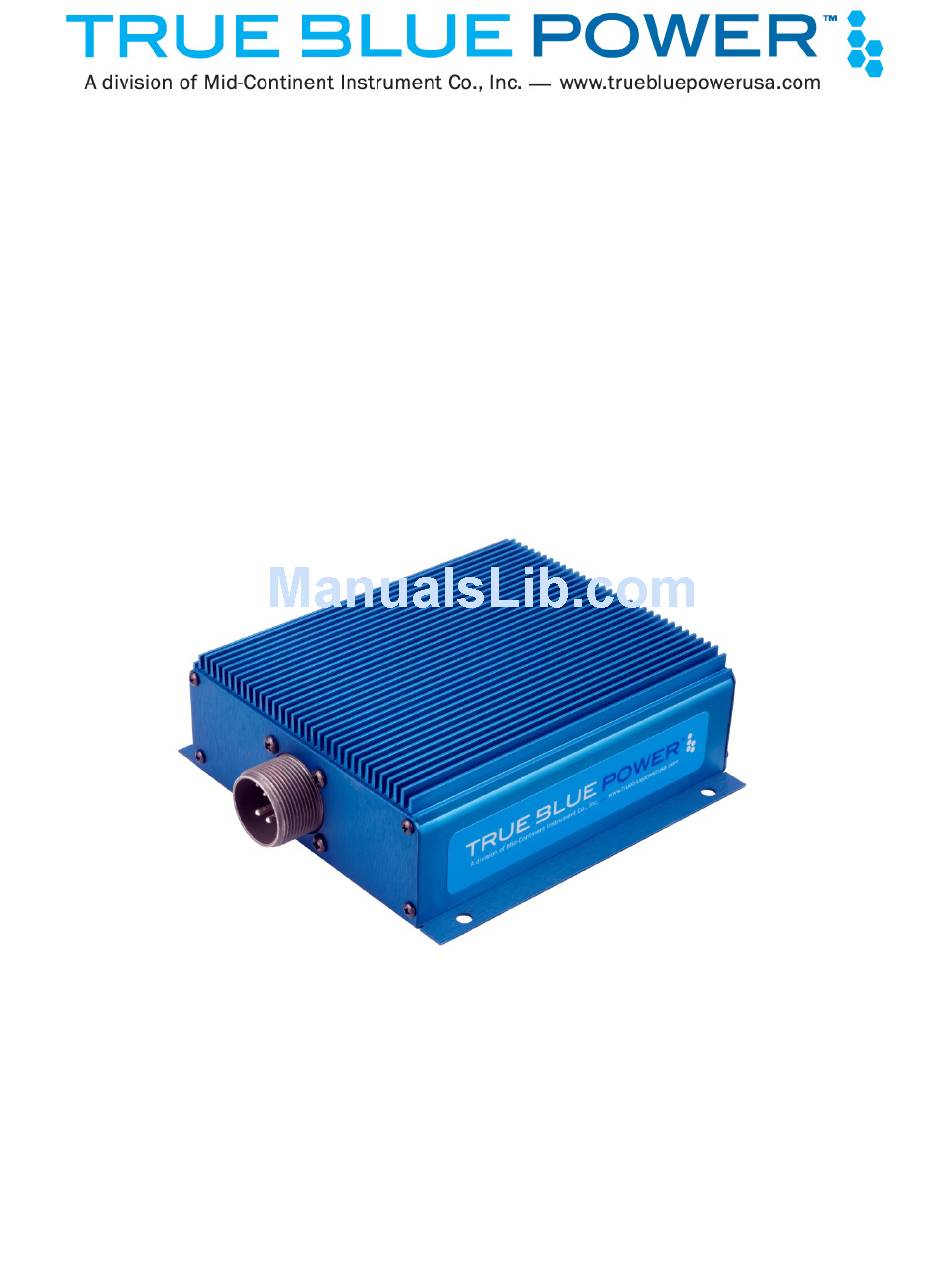

Installation Manual and Operating Instructions
Model TI250 Series
Static Electrical Power Inverter
®
True Blue Power
is a division of Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
th
9400 E. 34
Street N.
Wichita, KS 67226
Manual Number 9018067
PH (800) 821-1212
FX (316) 630-0723
Rev C, May 27, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI250 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True blue power TI250 Series

Summary of Contents for True blue power TI250 Series

  • Page 1 Installation Manual and Operating Instructions Model TI250 Series Static Electrical Power Inverter ® True Blue Power is a division of Mid-Continent Instrument Co., Inc. Mid-Continent Instrument Co., Inc. dba Mid-Continent Instruments and Avionics 9400 E. 34 Street N. Wichita, KS 67226...
  • Page 2 PH (316) 630-0101 FX (316) 630-0723 All products produced by Mid-Continent Instrument, Co., Inc., including those identified as Mid- Continent Instruments and Avionics or True Blue Power, are designed and manufactured in Wichita, KS, USA.  Copyright 2013 Mid-Continent Instrument Co., Inc.
  • Page 3 REVISION DETAIL Revision Date Approved Detail 12/10/13 Initial release 02/11/14 Revised Technical Specifications 05/27/14 Revised Section 3.3.1, Wire Gauge Selection ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014 a division of Mid-Continent Instrument Co., Inc.

  • Page 4: Table Of Contents

    LIST OF TABLES AND FIGURES Electrical Attributes Table Physical Attributes Table Performance Table Connector Pinout Figure Example Wiring Diagrams TI250 Outline Drawing Figure ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014 a division of Mid-Continent Instrument Co., Inc.

  • Page 5: General Description

    115VAC. The TI250 series Inverter is FAA certified to TSO C73 and tested to rigorous environmental standards and levels of RTCA DO-160. The small size and light weight in conjunction with its installation flexibility (inside or outside the pressure vessel) make it an ideal choice for aircraft power needs while reducing the challenges associated with other similar products.

  • Page 6: Cooling

    LIMITATIONS The TI250 Series of static electric power inverters is certified to FAA TSO-C73 with the following limitations identified: 1) Alternating current (AC) output is provided at 115 volts and 60 hertz in lieu of 115 volts and 400 hertz as identified in the MPS of the TSO.

  • Page 7: Installation Procedure

    The TI250 passes DO160G Section 21 Table 1.2.3 conducted emissions testing using both methods. ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014 a division of Mid-Continent Instrument Co., Inc.
  • Page 8 Output Return Input Return Remote On/Off Fault Indication Remote Return Figure 3.3 Table 3.3 Pinout View of Unit Connector Connector Pinout ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014 a division of Mid-Continent Instrument Co., Inc.
  • Page 9 Figure 3.4A: Typical Small Aircraft Minimum Wiring Installation Figure 3.4B: Typical Aircraft Wiring Installation ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014 a division of Mid-Continent Instrument Co., Inc.
  • Page 10 Figure 3.4C: Typical Aircraft Fixed-Application Installation Figure 3.4D: Fully-Integrated Multi-Inverter Aircraft Cabin System ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014 a division of Mid-Continent Instrument Co., Inc.

  • Page 11: Harness Verification

    If more than 250 watts of power is required for an installation, a higher power inverter model such as the 500 watt Mid-Continent MD50 should be selected. ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014...
  • Page 12 5.50 4.75 (4X) Ø.22 10-32 Mounting Holes 5.94 Connector per MS3102A-18-9P Figure 3.5 TI250 Outline Drawing ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014 a division of Mid-Continent Instrument Co., Inc.

  • Page 13: Operation

    OPERATION ELECTRICAL PERFORMANCE The TI250 series Static Inverter converts a direct current (DC) voltage input to a regulated 115 volt alternating current (VAC) output. The output is controlled to a frequency of 60 Hertz and represents a pure sine wave with minimal distortion. The unit is capable of providing 250 watts to power a variety of aircraft accessories including laptops, personal electronics, and onboard systems.

  • Page 14: Ground Fault Protection

    ON. NOTE: If the inverter is over-temperature it will not re-enable until it has cooled. Fault can also be cleared by cycling power to the inverter. ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014...

  • Page 15: Conformance

    Category A3 (pin injection) Susceptibility Category G3L3 (cable bundle) [A3G3L3] Lightning Direct Effects Category X Icing Category X Category A Flammability Category X ® True Blue Power Manual Number 9018067 Revision C, May 27, 2014 a division of Mid-Continent Instrument Co., Inc.
