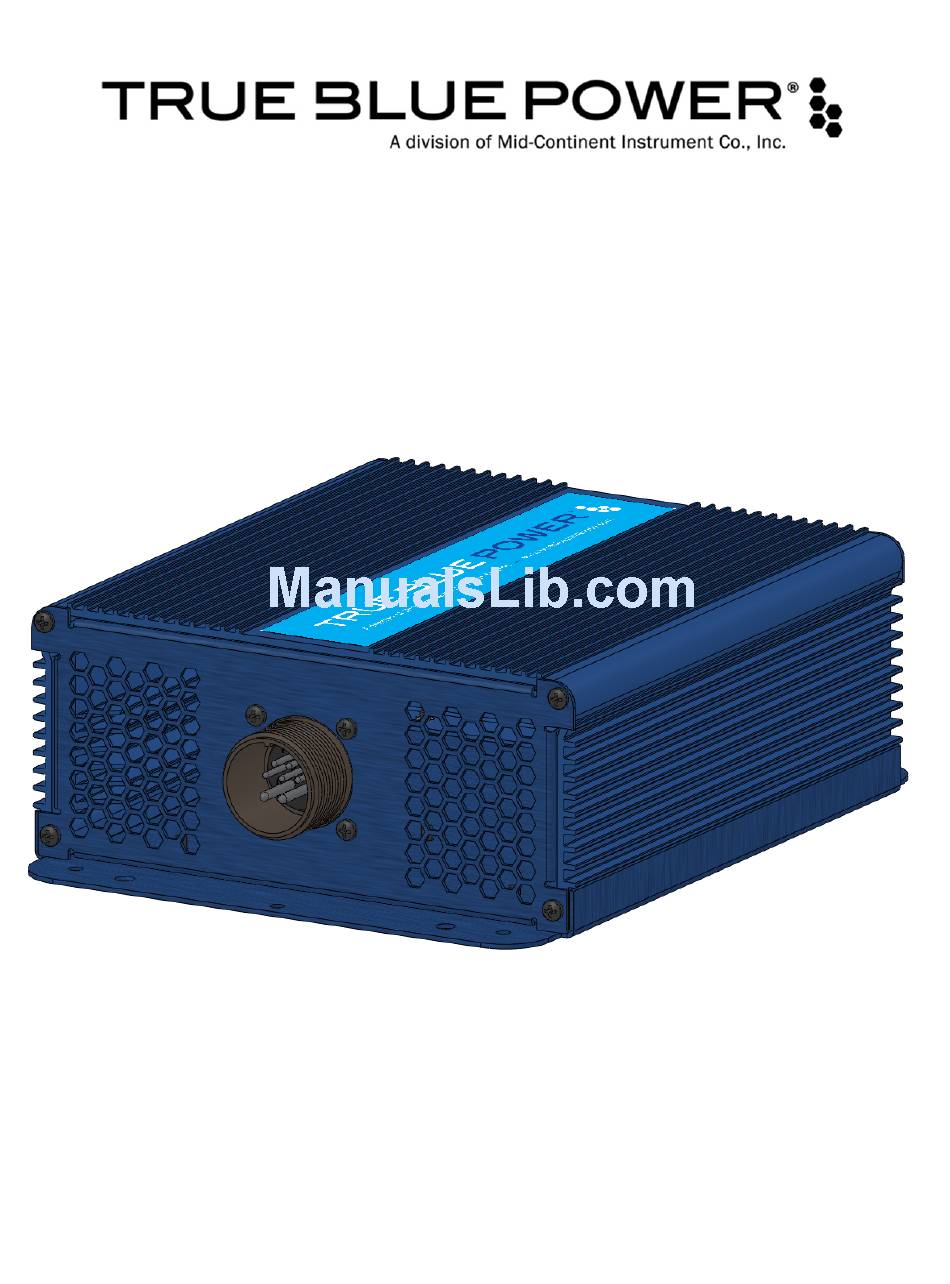

INSTALLATION MANUAL AND
OPERATING INSTRUCTIONS
TI500-( ) Series
Static Electrical Power Inverter
True Blue Power® is a division of Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
th
9400 E. 34
Street N.
Manual number 9017039
Wichita, KS 67226
Rev E, August 29, 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI500- series and is the answer not in the manual?

Questions and answers

Related Manuals for True blue power TI500- series

Summary of Contents for True blue power TI500- series

  • Page 1 INSTALLATION MANUAL AND OPERATING INSTRUCTIONS TI500-( ) Series Static Electrical Power Inverter True Blue Power® is a division of Mid-Continent Instrument Co., Inc. Mid-Continent Instrument Co., Inc. dba Mid-Continent Instruments and Avionics 9400 E. 34 Street N. Manual number 9017039...
  • Page 2 True Blue Power, Wichita, KS FOREWORD This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment. If further information is required, please contact: True Blue Power c/o Mid-Continent Instrument Co., Inc.
  • Page 3 BAW/JRC Initial release. 07/06/10 BAW/MKN Update Section 2.4 to add limitation statement regarding output. 07/20/10 MKN/BAW Update unit picture with True Blue Power label. 02/24/11 JDS/BAW Added section 3.3.2, and figure 3.4. 08/29/12 BMC/JDS Model name changed to TI500. REV. E August 29, 2012...

  • Page 4: Table Of Contents

    True Blue Power, Wichita, KS TABLE OF CONTENTS SECTION 1 GENERAL DESCRIPTION INTRODUCTION TECHNICAL SPECIFICATIONS 1.2.1 ELECTRICAL ATTRIBUTES 1.2.2 PHYSICAL ATTRIBUTES 1.2.3 QUALIFICATIONS SECTION 2 INSTALLATION CONSIDERATIONS COOLING EQUIPMENT LOCATION ROUTING OF CABLES LIMITATIONS SECTION 3 INSTALLATION PROCEDURE GENERAL INFORMATION...

  • Page 5: General Description

    True Blue Power, Wichita, KS SECTION 1 GENERAL DESCRIPTION INTRODUCTION The model TI500 series Static Electrical Power Inverter is a lightweight power converter that translates a 20 to 36 VDC input to a 115 VAC output at 60 Hertz and provides 500 watts (VA) of power. The...

  • Page 6: Cooling

    True Blue Power, Wichita, KS SECTION 2 PRE-INSTALLATION CONSIDERATIONS COOLING No external cooling is required. The unit is equipped with two internal brushless DC fans. Restriction to airflow can cause overheating of the unit and limit performance or reduce the expected life of the product.

  • Page 7: Installation Procedure

    True Blue Power, Wichita, KS SECTION 3 INSTALLATION PROCEDURES GENERAL INFORMATION This section contains interconnect diagrams, mounting dimensions and other information pertaining to the installation of the TI500 Static Inverter. After installation of cabling and before installation of the equipment, ensure that power is applied only to the pins specified in the interconnect diagram.
  • Page 8 True Blue Power, Wichita, KS INVERTER OUPUT: Pin B – AC Output 115VAC, 60Hz. Used for powering devices where terrestrial/utility power designations are used, pin B can be connected as “Line” or “Hot”. Pin C – AC Return 115VAC, 60Hz. Used for powering devices where terrestrial/utility power designations are used, pin C can be connected as “Neutral”.
  • Page 9 True Blue Power, Wichita, KS TI500 28VDC INVERTER ENABLE (always active) Optional 5A Optional 1-2A Circuit Breaker Circuit Breakers Case attached to airframe Optional Ground Fault Indicator 110VAC Outlet(s) (not supplied) (not supplied) TI500 28VDC INVERTER ENABLE (Remote ON/OFF) 3rd Party...

  • Page 10: Harness Verification

    True Blue Power, Wichita, KS 3.3.3 HARNESS VERIFICATION With the TI500 Static Inverter disconnected, activate the aircraft power bus that supplies the unit and use an multi-meter to verify that aircraft power and ground with appropriate voltage is on the pins within the mating harness.
  • Page 11 True Blue Power, Wichita, KS 6.34 3.75 8.15 7.40 6.70 (4X) Ø0.20 10-32 Mounting Holes Connector per MS3102A-18-9P 2.74 FIGURE 3.5 TI500 OUTLINE DRAWING REV. E August 29, 2012 Manual Number 9017039...
  • Page 12 True Blue Power, Wichita, KS 3.75 8.75 NOTE: Mounting adapter can be installed on either end of the unit. FIGURE 3.6 TI500 MOUNTING ADAPTER REV. E August 29, 2012 Manual Number 9017039...

  • Page 13: Operation

    True Blue Power, Wichita, KS SECTION 4 OPERATION ELECTRICAL PERFORMANCE The TI500 series Static Inverter converts a direct current (DC) voltage input to a regulated 115 volt alternating current (VAC) output. The output is controlled to a frequency of 60 Hertz and represents a pure sine wave with minimal distortion.

  • Page 14: Protective Features

    True Blue Power, Wichita, KS PROTECTIVE FEATURES 4.2.1 REMOTE ON/OFF The TI500 series Static Inverter incorporates a remote on/off feature that allows the user to enable or disable the output of the unit. By providing a ground on the appropriate pin (See Table 3.3) the user, via a remote mounted switch or similar method, can enable the output...

  • Page 15: Conformance

    True Blue Power, Wichita, KS SECTION 5 CONFORMANCE CONTINUED AIRWORTHINESS STATEMENT No periodic scheduled maintenance or calibration is necessary for continued airworthiness of the TI500 series Static Inverter. If the unit fails to perform to specifications, the unit must be removed and serviced by Mid-Continent Instruments and Avionics or their authorized designee.
