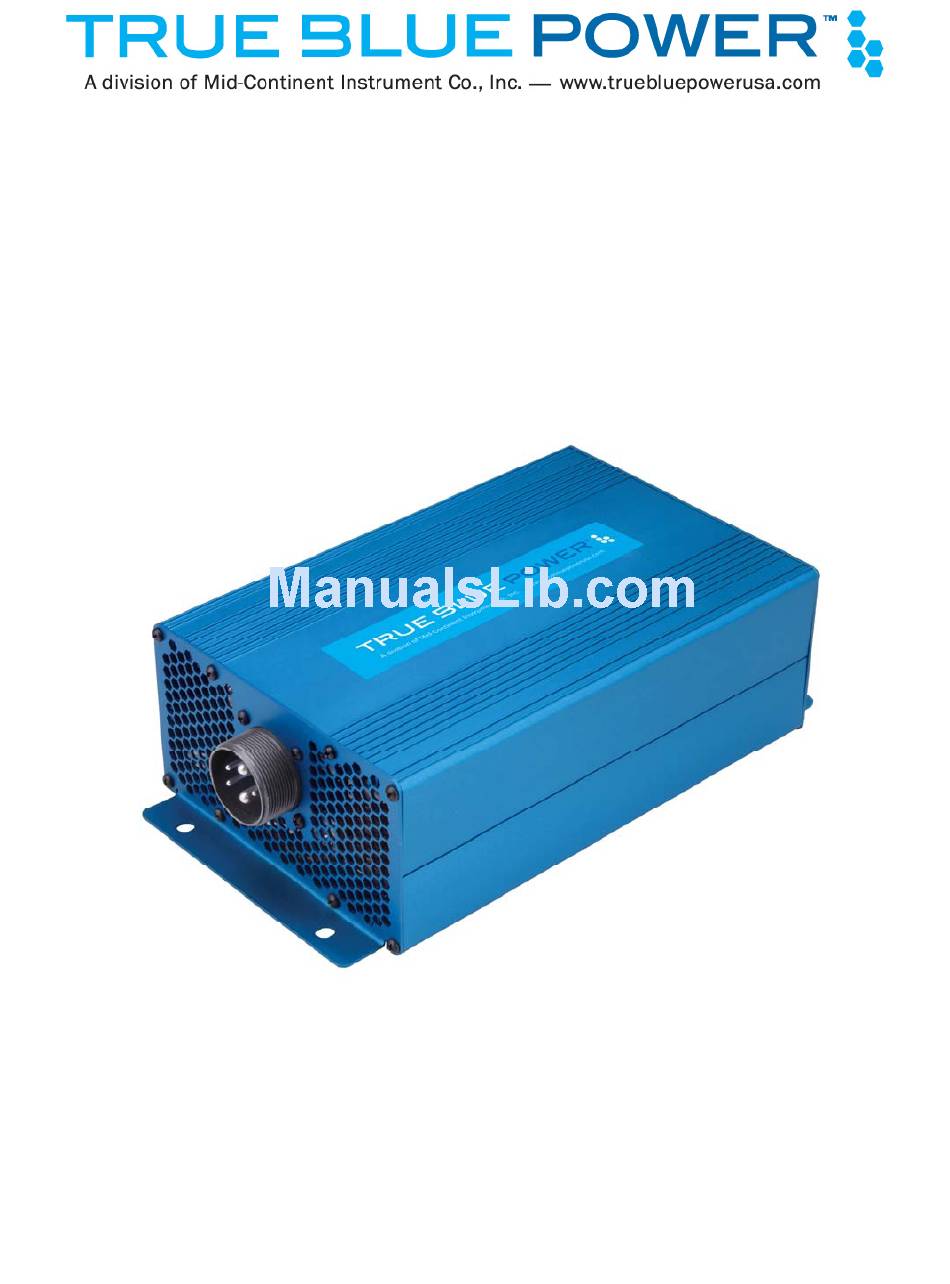

Installation Manual and Operating Instructions
Model TI1200 Series
Static Electrical Power Inverter
True Blue Power® is a division of Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
th
9400 E. 34
Street N.
Manual Number 9017680
Wichita, KS 67226
Rev C, January 2, 2015
