True blue power TI1200 Series Installation Manual And Operating Instructions

Static electrical power inverter
Hide thumbs Also See for TI1200 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Instructions and Operating Manual

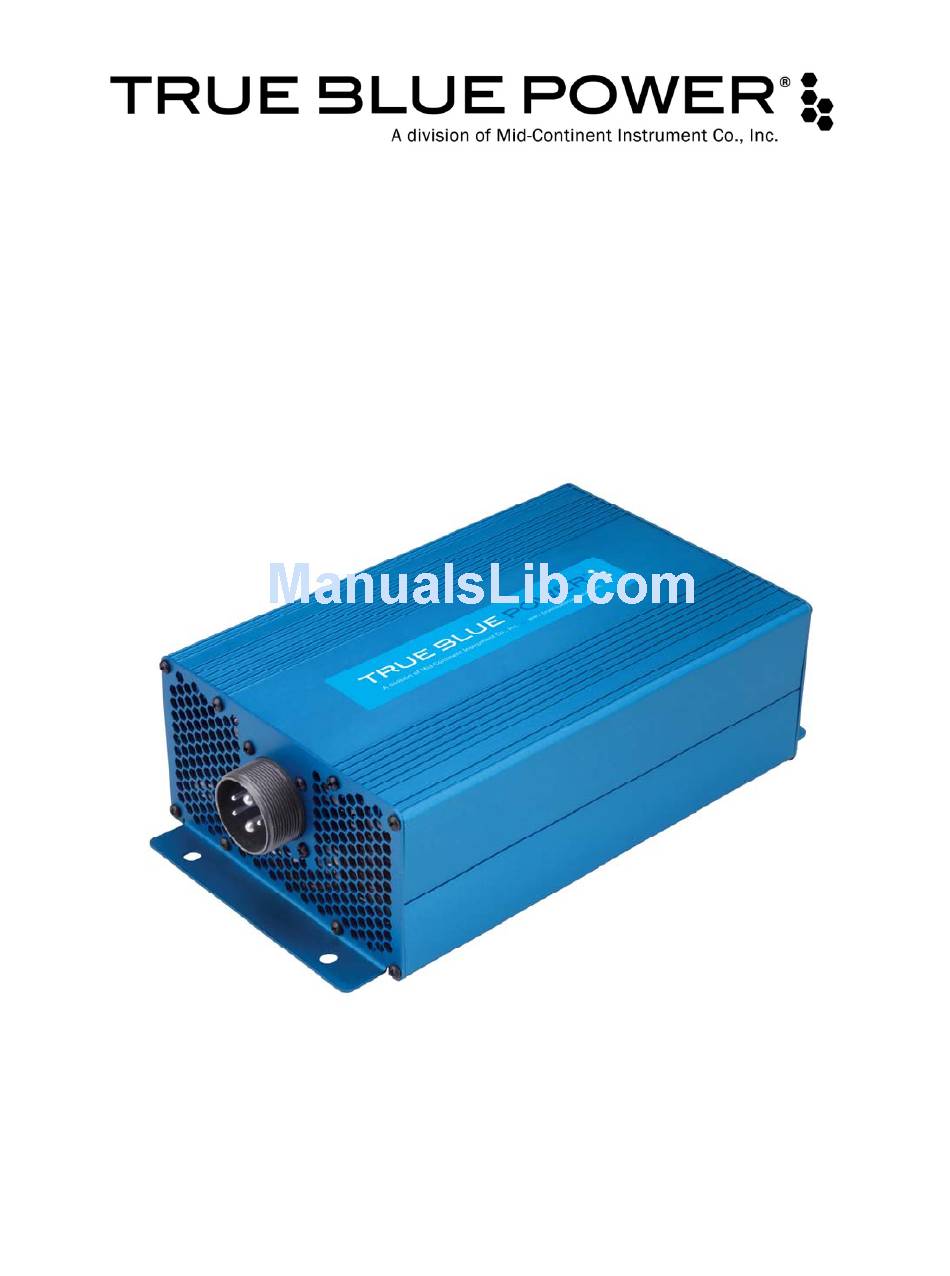

INSTALLATION MANUAL AND
OPERATING INSTRUCTIONS
TI1200-( ) Series
Static Electrical Power Inverter
True Blue Power® is a division of Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
th
9400 E. 34
Street N.
Manual Number 9017680
Wichita, KS 67226
Rev B, July 23, 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI1200 Series and is the answer not in the manual?

Questions and answers

Related Manuals for True blue power TI1200 Series

Summary of Contents for True blue power TI1200 Series

  • Page 1 INSTALLATION MANUAL AND OPERATING INSTRUCTIONS TI1200-( ) Series Static Electrical Power Inverter True Blue Power® is a division of Mid-Continent Instrument Co., Inc. Mid-Continent Instrument Co., Inc. dba Mid-Continent Instruments and Avionics 9400 E. 34 Street N. Manual Number 9017680...
  • Page 2 True Blue Power, Wichita, KS FOREWORD This manual provides information intended for use by persons who, in accordance with current regulatory requirements, are qualified to install this equipment. If further information is required, please contact: True Blue Power c/o Mid-Continent Instrument Co., Inc.
  • Page 3 True Blue Power, Wichita, KS REVISION DETAIL Rev. Date Approved Detail 04/27/12 Initial release. 7/23/12 JDS/MKN Page 9; view overlaps. Page 15 (TS) and (TDS) 501 was 500. REV. B July 23, 2012 Manual Number 9017680...

  • Page 4: Table Of Contents

    True Blue Power, Wichita, KS TABLE OF CONTENTS SECTION 1 GENERAL DESCRIPTION INTRODUCTION TECHNICAL SPECIFICATIONS 1.2.1 ELECTRICAL ATTRIBUTES 1.2.2 PHYSICAL ATTRIBUTES 1.2.3 QUALIFICATIONS SECTION 2 INSTALLATION CONSIDERATIONS COOLING EQUIPMENT LOCATION ROUTING OF CABLES LIMITATIONS SECTION 3 INSTALLATION PROCEDURE GENERAL INFORMATION...

  • Page 5: General Description

    115VAC. The TI1200 series Inverter is FAA certified to TSO C73 and tested to rigorous environmental standards and levels of RTCA DO-160. The small size and light weight in conjunction with its installation flexibility (inside or outside the pressure vessel) make it an ideal choice for aircraft power needs while reducing the challenges associated with other similar products.

  • Page 6: Cooling

    LIMITATIONS The TI1200-( ) Series of static electric power inverters is certified to FAA TSO-C73 with the following limitations identified: 1) Alternating current (AC) output is provided at 115 volts and 60 hertz in lieu of 115 volts and 400 hertz as identified in the MPS of the TSO.

  • Page 7: Installation Procedure

    This section contains interconnect diagrams, mounting dimensions and other information pertaining to the installation of the TI1200 Static Inverter. After installation of cabling and before installation of the equipment, ensure that power is applied only to the pins specified in the interconnect diagram.
  • Page 8 True Blue Power, Wichita, KS INVERTER OUPUT: Pin B – AC Output 115VAC, 60Hz. Used for powering devices where terrestrial/utility power designations are used, pin B can be connected as “Line” or “Hot”. Pin D – AC Return 115VAC, 60Hz. Used for powering devices where terrestrial/utility power designations are used, pin C can be connected as “Neutral”.
  • Page 9 True Blue Power, Wichita, KS TI1200 28VDC INVERTER ENABLE (always active) Optional 10A Optional 1-5 Circuit Breaker Circuit Breakers Optional Ground Fault Indicator (not supplied) Case attached to airframe 110VAC Outlet(s) (not supplied) TI1200 28VDC INVERTER ENABLE (Remote ON/OFF) 3rd Party...

  • Page 10: Harness Verification

    Refer to Section 2: Pre-Installation Considerations in regards to equipment location. The TI1200 Static Inverter is designed for base mounting only. Four ¼-20 mounting holes should be provided in the aircraft in accordance with Figure 3.5. Secure the unit with four ¼-20 pan head phillips screws, or equivalent.
  • Page 11 True Blue Power, Wichita, KS FIGURE 3.5 TI1200 OUTLINE DRAWING REV. B July 23, 2012 Manual Number 9017680...

  • Page 12: Operation

    OPERATION ELECTRICAL PERFORMANCE The TI1200 series Static Inverter converts a direct current (DC) voltage input to a regulated 115 volt alternating current (VAC) output. The output is controlled to a frequency of 60 Hertz and represents a pure sine wave with minimal distortion. The unit is capable of providing 1200 watts to power a variety of aircraft accessories including laptops, personal electronics, onboard systems, and many others.
  • Page 13 True Blue Power, Wichita, KS Figure 4.3 Output Power Performance vs Altitude REV. B July 23, 2012 Manual Number 9017680...

  • Page 14: Protective Features

    4.2.1 REMOTE ON/OFF The TI1200 series Static Inverter incorporates a remote on/off feature that allows the user to enable or disable the output of the unit. By providing a ground on the appropriate pin (See Table 3.3) the user, via a remote mounted switch or similar method, can enable the output of the unit.

  • Page 15: Conformance

    CONFORMANCE CONTINUED AIRWORTHINESS STATEMENT No periodic scheduled maintenance or calibration is necessary for continued airworthiness of the TI1200 series Static Inverter. If the unit fails to perform to specifications, the unit must be removed and serviced by Mid-Continent Instruments and Avionics or their authorized designee.
