KitchenAid KUIS18NNJB4 Parts List

KitchenAid KUIS18NNJB4 Parts List

Ice cube maker
Hide thumbs Also See for KUIS18NNJB4:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

See also: Use and Care Manual
CABINET LINER AND DOOR PARTS
ICE CUBE
MAKER
For Models: KUIS18NNJW4, KUIS18NNJT4, KUIS18NNJB4, KUIS18NNJS4
(WHITE)
(BISCUIT)
(BLACK) (STAINLESS STEEL)
5−09 Litho In U.S.A. (ebk) (psw)
1
Part No. 8198545

Advertisement

loading
Need help?

Need help?

Do you have a question about the KUIS18NNJB4 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KUIS18NNJB4

Summary of Contents for KitchenAid KUIS18NNJB4

  • Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS18NNJW4, KUIS18NNJT4, KUIS18NNJB4, KUIS18NNJS4 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 5−09 Litho In U.S.A. (ebk) (psw) Part No. 8198545...

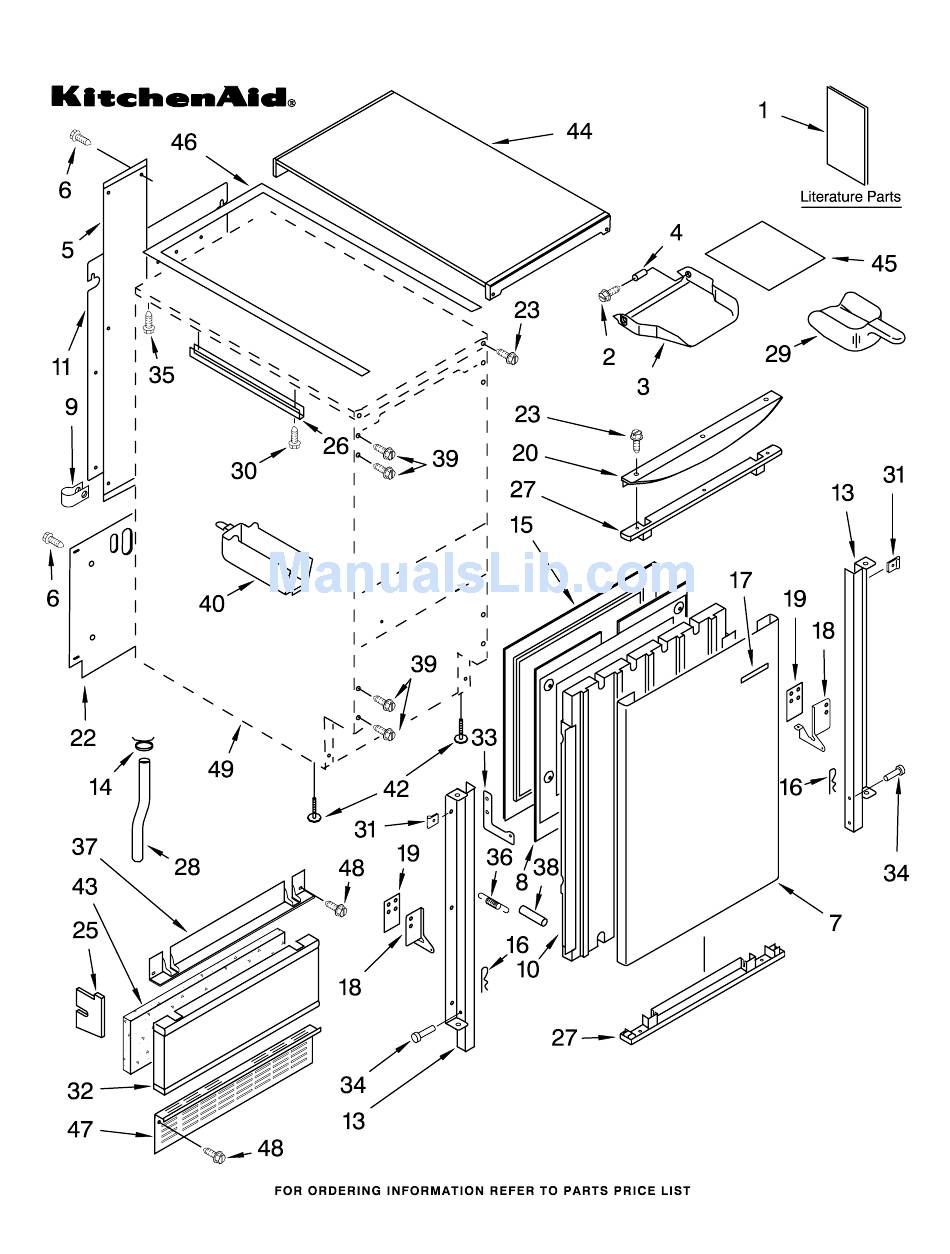

  • Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS18NNJW4, KUIS18NNJT4, KUIS18NNJB4, KUIS18NNJS4 Illus. Part DESCRIPTION Literature Parts LIT2217251 Use & Care Guide LIT2217232 Service & Wiring Sheet 3400886 Screw 8−18 X 1 1/4 2208354 Bin, Door 2185678 Spacer 2185575 Cover, Wiring...
  • Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS18NNJW4, KUIS18NNJT4, KUIS18NNJB4, KUIS18NNJS4 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 8198545...
  • Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS18NNJW4, KUIS18NNJT4, KUIS18NNJB4, KUIS18NNJS4 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2217286 Tube, Plastic 488687 Screw 8−15 X 5/8 2185523 Dispenser, Water 5 W10218037 Evaporator 627018 Nut, Compression...
  • Page 5 For Models: KUIS18NNJW4, KUIS18NNJT4, KUIS18NNJB4, KUIS18NNJS4 8198545 PUMP PARTS (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 X 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly...

  • Page 6: Control Panel Parts

    CONTROL PANEL PARTS For Models: KUIS18NNJW4, KUIS18NNJT4, KUIS18NNJB4, KUIS18NNJS4 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) Illus. Part 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch 4 2208317W Overlay 6100499 P.C. Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness 745362 Bulb...

  • Page 7: Unit Parts

    UNIT PARTS For Models: KUIS18NNJW4, KUIS18NNJT4, KUIS18NNJB4, KUIS18NNJS4 (WHITE) (BISCUIT) (BLACK) (STAINLESS STEEL) 8198545...
  • Page 8 UNIT PARTS For Models: KUIS18NNJW4, KUIS18NNJT4, KUIS18NNJB4, KUIS18NNJS4 (WHITE) (BISCUIT) Illus. Part 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2190685 Blade, Fan 2188537 Motor, Fan 304392 Screw 8−18 X 1/2 2208370 Compressor A201435 Clip, Mounting A201441 Shim (4) 2185960 Clamp (Power Cord)
