KitchenAid KUIS18NNJB8 Parts List

Ice cube maker
Hide thumbs

Advertisement

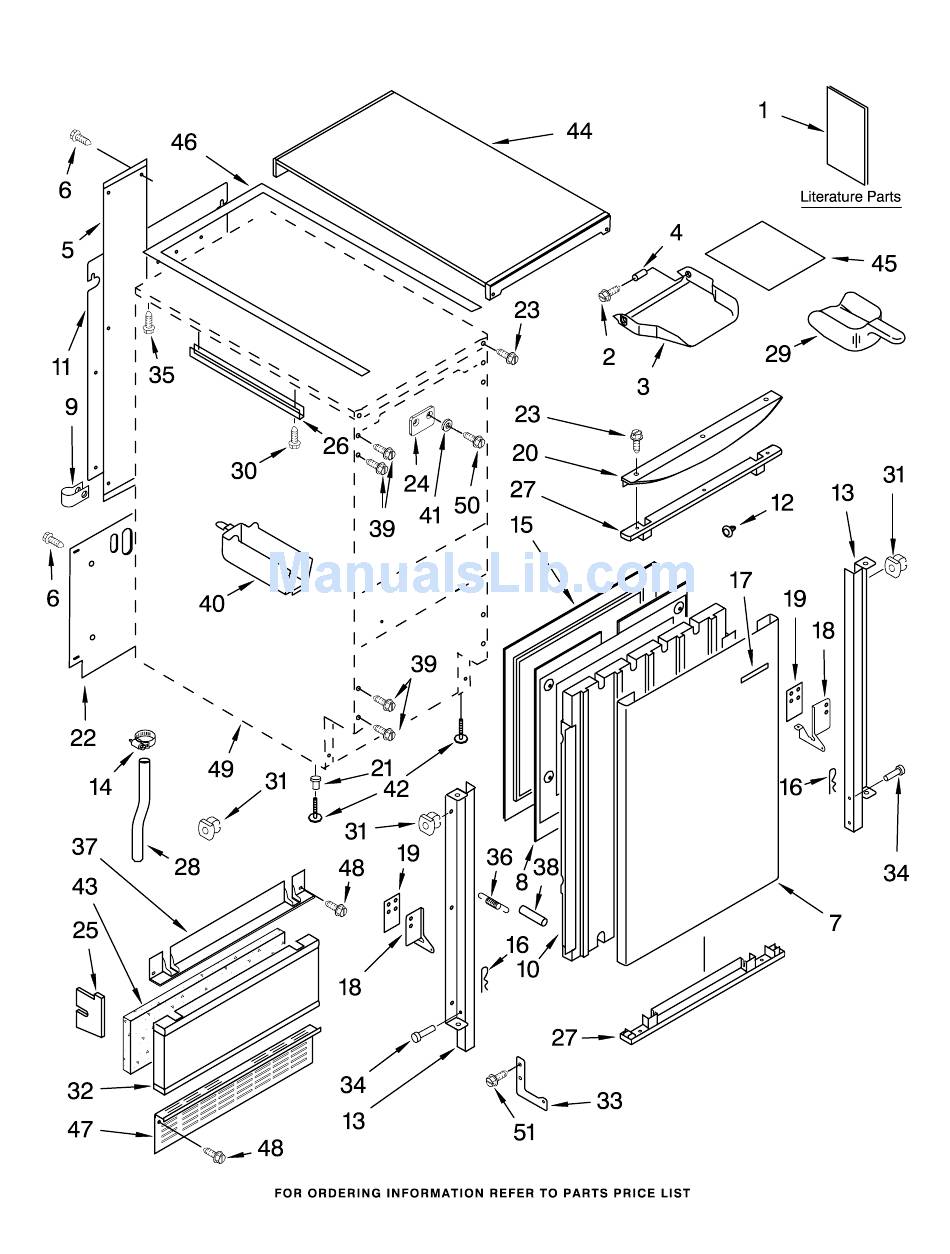

CABINET LINER AND DOOR PARTS
ICE CUBE
MAKER
For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8
(White)
(Biscuit)
(Black)
(Stainless Steel)
Part No. 8214895
5−09 Litho In U.S.A. (rrm) (psw)
1

Advertisement

loading

  Summary of Contents for KitchenAid KUIS18NNJB8

  • Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8 (White) (Biscuit) (Black) (Stainless Steel) Part No. 8214895 5−09 Litho In U.S.A. (rrm) (psw)
  • Page 2 CABINET LINER AND DOOR PARTS For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8 Illus. Part DESCRIPTION Literature Parts 2313788 Use & Care Guide 2313728 Service & Wiring Sheet 3400886 Screw 8−18 x 1 1/4 2208354 Bin, Door 2185678 Spacer 2217394 Cover, Wiring...
  • Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8 (White) (Biscuit) (Black) (Stainless Steel) 8214895...
  • Page 4 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8 (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2313644 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water 5 W10218037 Evaporator 2172593 Tube, Water Fill 488660 Nut, Speed...
  • Page 5: Pump Parts

    For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8 8214895 PUMP PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 x 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly (Stainless Steel)
  • Page 6: Control Panel Parts

    CONTROL PANEL PARTS For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8 Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 2304016 Control Board (White) (Biscuit) (Black) Illus. Part DESCRIPTION 2149705 Switch, Plunger 2185694 Lens, LED...
  • Page 7: Unit Parts

    UNIT PARTS For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8 (White) (Biscuit) (Black) (Stainless Steel) 8214895...
  • Page 8 For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8 Illus. Part DESCRIPTION 2185532 Bracket, Fan Mtg. 2185675 Pad, Foam 2188935 Blade, Fan 2188891 Motor, Fan 2313636 Wiring Harness, Complete Unit (Includes Power Cord) 304392 Screw 8−18 x 1/2 2208370 Compressor (Includes Illus. 11,18, 20,21 &...
  • Page 9: Optional Parts

    For Models: KUIS18NNJW8, KUIS18NNJT8, KUIS18NNJB8, KUIS18NNJS8 8214895 OPTIONAL PARTS (White) (Biscuit) (Black) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 8171307 Cleaner, Icemaker 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs.

This manual is also suitable for:

Kuis18nnjs8Kuis18nnjt8Kuis18nnjw8
