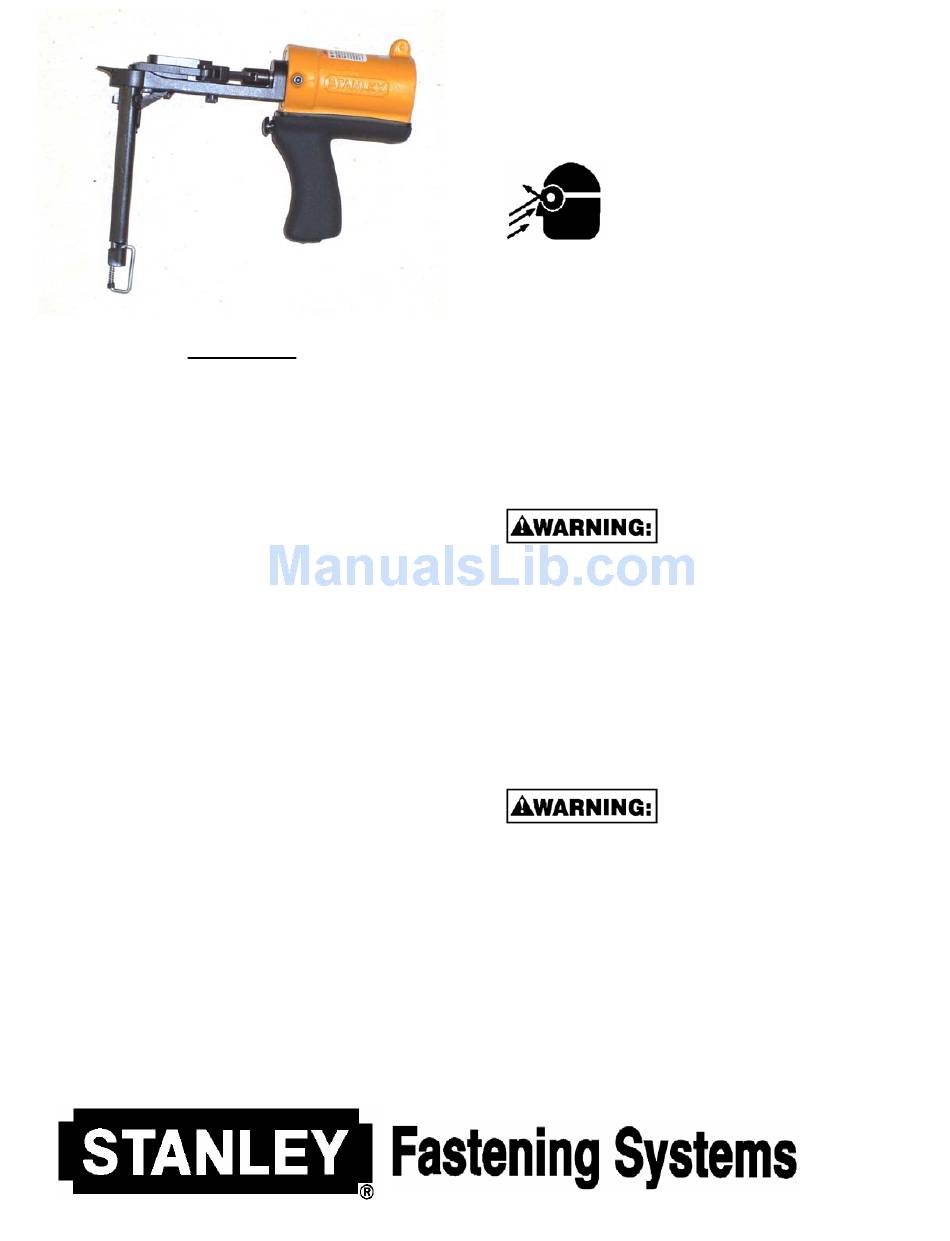

Stanley TR201 User Manual

WARNINGS

• Always read tool manual before operating.
• Always wear safety glasses while operating or
while in the vicinity of a tool in operation.
• For testing, always cycle tool away from work
to insure proper ring closure.
reasons, an improperly functioning tool must
not be used. When operating tool, never point
or actuate tool other than into work.
• Operate tool in an unobstructed work area.
• Disconnect air supply prior to maintenance
and/or repair of tool.
• Use clean dry air to maximize efficiency. Do
Not Exceed 100 P.S.I. (7.0 kg/cm sq.)
• Do not use bottled gases such as oxygen,
hydrogen, carbon dioxide, acetylene, etc.
• Tools shall be operated with a fitting or hose
coupling on or near the tool in such a manner
that all compressed air in the tool is discharged
at the time the fitting or hose coupling is
disconnected.
National Standard Institute, ANSI Z87.1-1989 and
provide frontal and side protection. Eye protection
should be worn by the operator and others in the work
area when loading, operating, or servicing this tool.
Eye protection is required to guard against possible
flying particles and/or debris, which could cause
severe eye injury.
NOTE: Non-side shielded prescription glasses and
faceshields alone do not provide adequate protection.
For safety
Always handle tool with care:
•
Never engage in horseplay.
•
Never pull the trigger unless nose of tool is
directed toward the work.
•
Keep others at a safe distance from the tool while
the tool is in operation as actuation occurs,
possibly causing injury. Keep hands and body
away from the jaw mechanism of the tool.

LOADING TOOL

When loading tool:
•
Never place a hand or any part of body in jaw
mechanism area of tool.
•
Never point tool at anyone.
•
Never actuate tool when loading, accidental injury
may occur.

AIR CONSUMPTION

SC7 Series Tools require 1.6 cubic feet per minute
(.045 cubic meters per minute) of free air to operate at
a rate of 100 fasteners per minute, at 100 P.S.I. (7.0
kg/cm sq.).
1 of 6

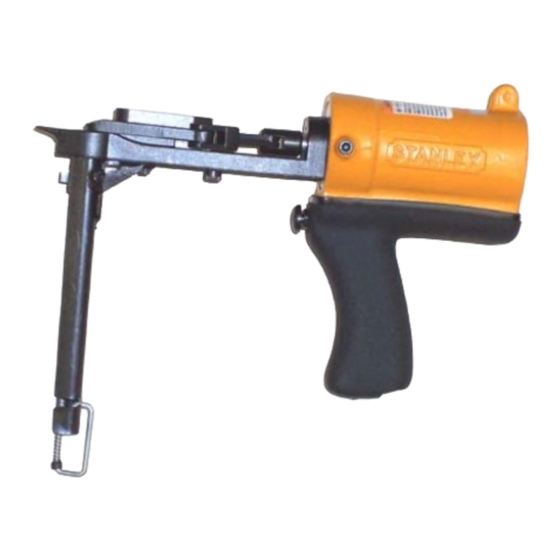

SPRING RETURN
PNEUMATIC D-RING TOOL
TR201 TR203
SAFETY INSTRUCTIONS
WARNING:
The employer and/or user must ensure
that proper eye protection is worn. Eye
protection equipment must conform to
the requirements of the American

OPERATION

01/03
