Giada N70E-DR ITX NAS User Manual

GIADA N70E-DR

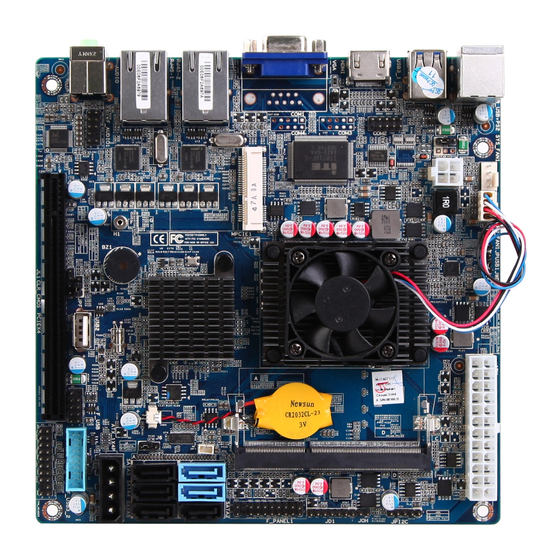

Thank you for choosing the N70E-DR ITX NAS main board. The N70E-DR is based on Intel 1037U
CPU & Intel HM77 chipsets, and 1*SO-DIMM, DDR3 (Max to 8G), delivers a high performance
and professional ITX solution.
WARNING:
This motherboard contains static-sensitive components and should be handled with care. Failure
to employ adequate anti-static measures can cause partial or complete device failure, performance
degradation, or reduced operating life. The battery must be replaced with the correct type of
lithium cell battery; otherwise there is a risk of damage to the motherboard. To avoid electrostatic
discharge (ESD) damage upon handling this product, it is strongly recommended that you wear a
grounded wrist strap or other static dissipating device.
CPU, Memory, Modules installation
BIOS Setting
Driver installation
Please read in Drivers CD's manual.
Back Panel Interface:
USB2.0
KB_MS USB3.0 HDMI VGA
www.giadatech.com
RJ45-1 RJ45-2 Audio
JACK
1
Connectors and Jumpers:
24. m-SATA
PCB EDGE
1. JPF
2. JL1
1
3. CLR_CMOS
1
4. USB Port
5. PCIE Slot
10
6. F_USB2.0
20 19 2 1
7. F_USB3.0
8. TPM
2 1
9. SATA
11. J6
10. ATX_1x4 12. F_PANEL1
2
www.giadatech.com
23. COM2
1 19
1
9 1 9 1 9
1
2 2
22. JP3.4
2
21. ATX2(4Pin)
20. SYS_FAN,
1
19. JPUSB1
18. JWD1
2 60
1 61
A
B
BF
BG
17. Memory Socket
16. ATX1(24Pin)
1
19
20 2
1
13. JD1
14. JOH
15. JPI2C
CPU_FAN
