4.2

How to operate the touch wheel

Before we use touch wheel and confirmation button to input or correct the digits, let us take a brief
trip about the operation. There are two possible manual touch methods, rotate wheel or touch click. The
default is rotate wheel input method.
If the input is touch wheel, please refer the followings:
Touch wheel input method:
1. There are 2 cursors on the screen; the top lane cursor is the input cursor, the lower lane cursor is
the candidate cursor.
2. The cursor highlighted input digit is the digit available to input.
3. Touch the wheel and rotate right, the cursor on candidate digit will jump right.
4. Touch the wheel and rotate left, the cursor candidate digit will jump left.
←
5. Left shift: shift left the input space cursor.
→
6. Right shift: shift right the input space cursor.
↵
7. Confirm: confirm the input data
↑
8. Return to upper level
Try an example of input; if the LCD message is on password input page, the device now is waiting
for your input.

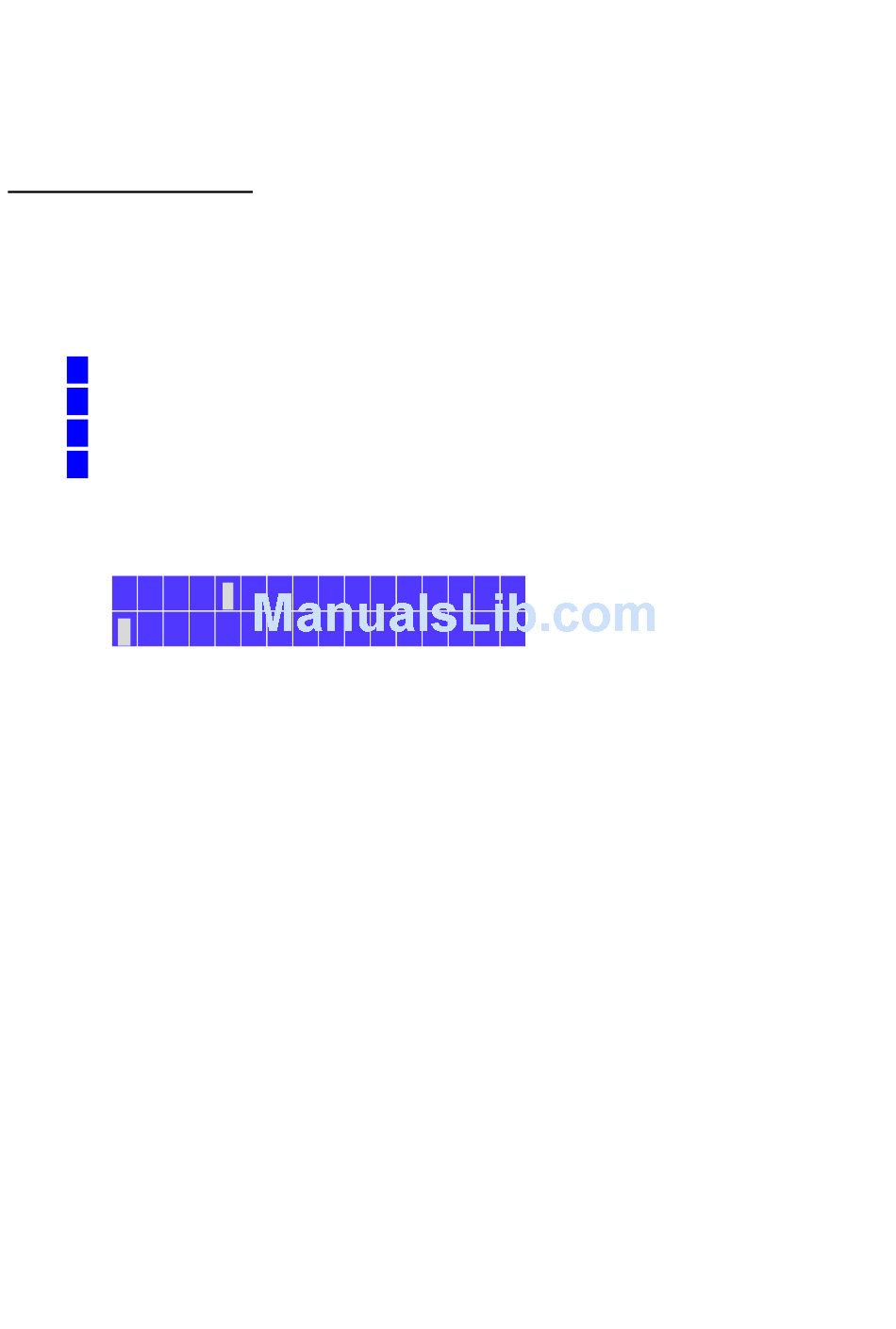

P W D : _ _ _ _ _ _
0 1 2 3 4 5 6 7 8 9
Say the password is 123456 (note that: the factory default is 000000), the process you will go:
A. Press the wheel and rotate the wheel to jump the candidate cursor to digit '1' then press the
confirmation button to enter the first digit while input cursor on first digit.
B. Press the wheel and rotate the wheel to jump the candidate cursor to digit '2' then press the
confirmation button to enter the second digit while input cursor on second digit.
C. Repeat the process until all the digits are input.
D. Move the candidate cursor to confirm, press confirmation button to input data to the device.
E. If you want to change any digit already input, rotate the touch wheel to move candidate
cursor to left shit or right shift and press confirmation button to shift the input cursor to the
digit you want to change. Input the new digit as process described above.
↵ ↑
← →
