4 Configuration through front panel

4.1

Familiar with the front panel operation

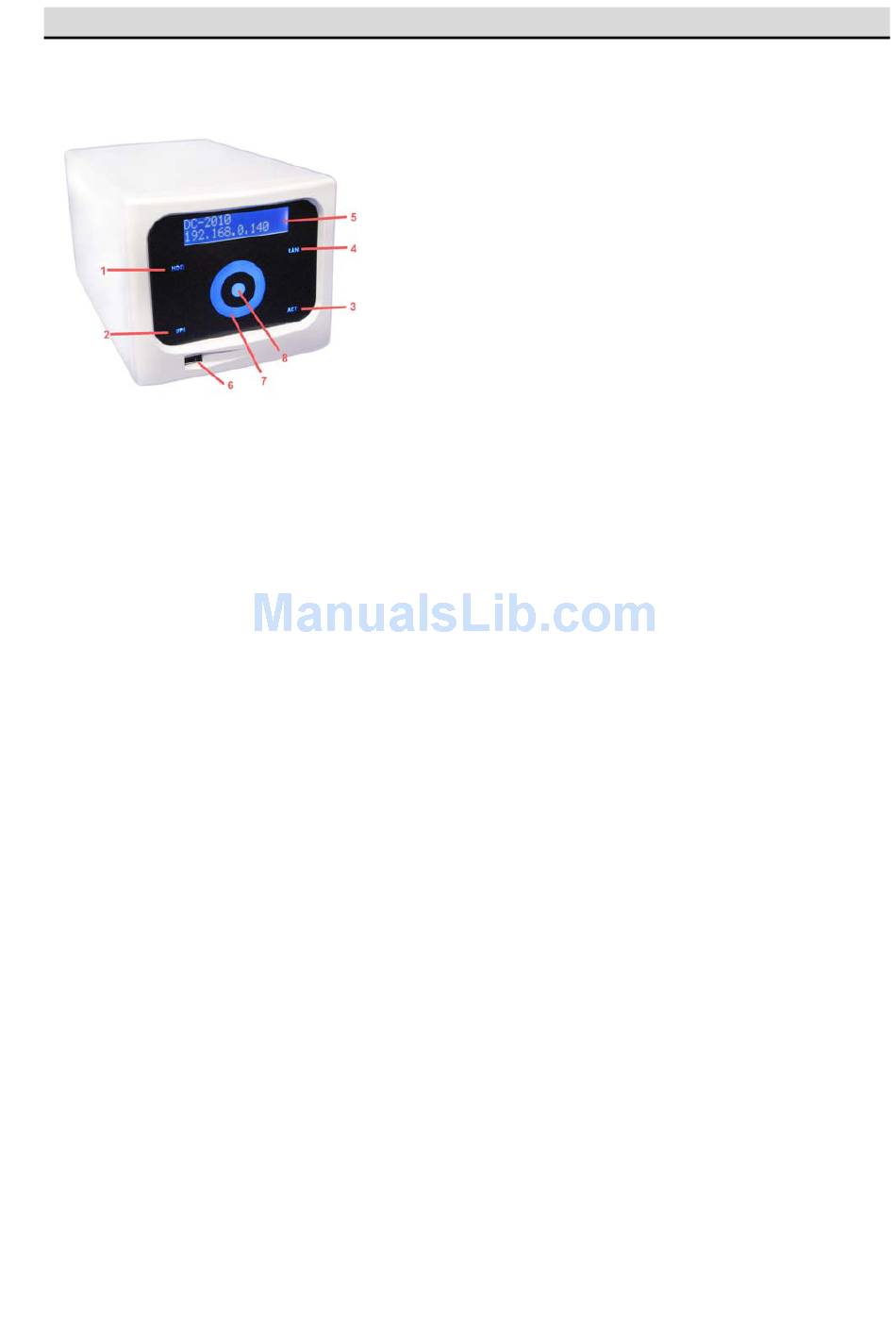

1. HDD: hard disk active indicator
2. UPS: UPS active indicator, when the rear RS232 connector successfully connect to OPTI-UPS
VS375C, the indicator will light.
3. ACT: ACT indicator flicks while power on but the DC2010 not active. While the device is
activated, the ACT will light.
4. LAN: Ethernet active connector, when the rear RJ45 Ethernet connects successfully.
5. LCD message display: display the information.
6. USB connector: USB2.0 connector for local USB backup.
7. Touch wheel: Thumb touch and slide to select displayed items.
8. Confirm button: Touch button for confirmation.
