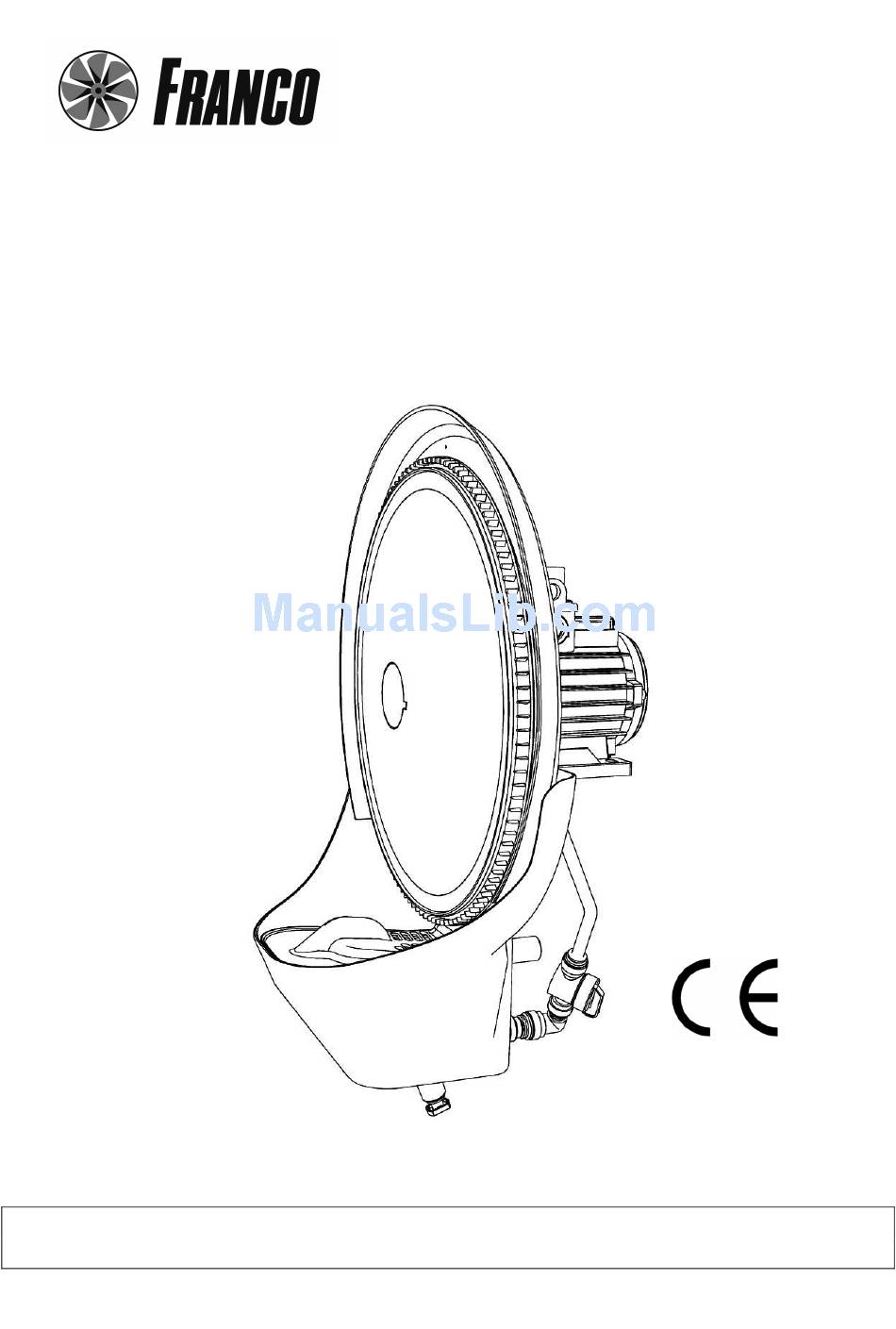

INSTRUCTION MANUAL FOR USE
AND MAINTENANCE
UCP
CENTRIFUGAL
HUMIDIFIER
TR A NSLA TED VE R SI O N F R O M I TA LI A N TO
E N G L I S H
Before installing or running the unit,
it is obligatory to carefully read and consult this manual.
Manual version: 02-000/2010
Franco srl – Via Nazionale, 80 12010 Cervasca (CN), Italy
Advertisement
Table of Contents
Related Manuals for FRANCO UCP
Summary of Contents for FRANCO UCP
- Page 1 TR A NSLA TED VE R SI O N F R O M I TA LI A N TO E N G L I S H Before installing or running the unit, it is obligatory to carefully read and consult this manual. Manual version: 02-000/2010 Franco srl – Via Nazionale, 80 12010 Cervasca (CN), Italy...
- Page 2 FRANCO srl Manual of use and maintenance UCP...
-
Page 3: Table Of Contents
FRANCO srl Manual of use and maintenance UCP INDEX INDEX ............................3 1 - INTRODUCTION......................... 4 1.1 General warnings......................4 1.2 Instructions for proper disposal of the product..............4 1.3 Covenants used throughout this manual................. 5 1.4 Conservation of the instruction manual................5 1.5 Recipients ........................ -
Page 4: Introduction
This device should be used only for the functions for which it was intended "Adiabatic Cooler – Humidifier”. Any other use is to be considered improper and dangerous. Franco srl cannot be held liable for any damages caused by improper, incorrect or unreasonable use, or if the device is used in systems that do not comply with safety regulations. -
Page 5: Covenants Used Throughout This Manual
FRANCO srl Manual of use and maintenance UCP 1.3 Covenants used throughout this manual The Manual is divided into autonomous chapters, each of which is addressed to a specific operator’s figure (installer, operator and maintainer), for which the skills needed to operate the machine safely have been defined. -
Page 6: Recipients
FRANCO srl Manual of use and maintenance UCP 1.5 Recipients The manual is addressed to: the installer, the operator, and the qualified personnel entitled to the maintenance of the device. EXPOSED PERSON: refers to any person exposed, wholly or partially, to a danger zone;... - Page 7 FRANCO srl Manual of use and maintenance UCP OTHER DEFINITIONS: HUMAN-MACHINE INTERACTION: Any situation in which an operator interacts with the machine in any of the operational phases at any time of the life of the machine itself; OPERATOR’S QUALIFICATION: Minimum level of competence that an operator must have in order to perform the described operation;...
- Page 8 FRANCO srl Manual of use and maintenance UCP PICTOGRAPHS CONCERNING THE OPERATOR’S QUALIFICATION Symbol Description Generic laborer: operator lacking of specific competences, capable of performing only simple tasks under the control of qualified technicians. Lifting and handling vehicles driver: operator qualified for the use of vehicles used in lifting and handling materials and machines (carefully following the manufacturer’s instructions), in accordance...
- Page 9 FRANCO srl Manual of use and maintenance UCP PICTOGRAPHS CONCERNING SAFETY The pictograms contained in a triangle indicate DANGER. The pictograms contained in a circle impose PROHIBITION / OBLIGATION. Pictograph Denomination Hazardous voltage. Entanglement. Dragging. General danger. Do not remove safety devices.
-
Page 10: Applications
The arts of the humidifier are made in PA PC and ABS, the screws are stainless steel made. The use of materials that do not suffer from the corrosive action of water and acids makes the UCP a machine capable of working in almost all the environments. -
Page 11: Description Of The Parts
Verify the integrity of the machine by controlling that there are no visible damaged parts. Do not dispose the packaging elements in the environment; they must be placed in proper collection points. The UCP can be lifted and hung by using the proper brackets. WARNING! Before handling the device: a. -
Page 12: Warranty
Franco s.r.l. from Cervasca (CN), Italy. During the warranty period, the company Franco s.r.l. commits itself to replace or repair free of charge those parts which result faulty from the origin. -
Page 13: Declaration Of Conformity
FRANCO srl Manual of use and maintenance UCP 1.15 Declaration of incorporation (Att. IIb DIR. 2006/42/CE) THE MANUFACTURER FRANCO S.r.l. Company Via Nazionale, 80 12010 Address Postal code Province Cervasca Italy City Country DECLARES THAT THE PARTLY COMPLETE MACHINE Cooler / Humidifier... -
Page 14: Installation
Make sure that all the connections necessary to operate the equipment have been properly prepared. 2.2 Positioning The UCP humidifier must be installed either in front of a stirring air fan or as a part of a dynamic ventilation system The humidifier / cooler UCP must be installed horizontally, hanging off the ground, with the non- atomized water tank siding down. -
Page 15: Electrical Connection
2.5 meters above the ground level (if used without protections. Drop separator Drain system Fig. 2.2 - A.T.U. section with UCP Fig. 2.3 – fan installation example 2.3 Electrical connection The installation involves the use of a humidistat or a thermostat ON/OFF controlling the power of the machine;... -
Page 16: Operation
FRANCO srl Manual of use and maintenance UCP 3 - OPERATION 3.1 Getting started Before operating the humidifier, verify that: 1. All connections, both electrical and hydraulic, are made according to the instructions contained in this manual; 2. The humidifier is free and clean;... -
Page 17: Maintenance
FRANCO srl Manual of use and maintenance UCP 4 - MAINTENANCE Before undertaking any maintenance, disconnect the device from the electricity and water supply! Periodically check that the amount of water reaching the slinger is correct, if necessary adjust the flow regulator. -
Page 18: Changing The Float
FRANCO srl Manual of use and maintenance UCP 4.4 Changing the float Disconnect the water supply. Remove the two screws from the lid by using a crosshead or “Phillips” screwdriver. Remove the cover by pulling it, grabbing the grip between the thumb and the forefinger. -
Page 19: Positioning The Nozzle
Fig. 4.5 Nozzle positioning 4.7 Accessories A full range of accessories matching your UCP is available, including electronic humidity controls, thermostats, timing systems for the drainage of the tank (anti-legionella), electric wiring accessories, hydraulic accessories, air conveying and inhalation channeling pipes. -
Page 20: Technical Specifications
FRANCO srl Manual of use and maintenance UCP 5 – TECHNICAL SPECIFICATIONS 5.1 Technical data General Data UCP-1 UCP-3 UCP-1 UCP-3 Atomization capacity lt/h 15 - 55 15 - 55 15 - 55 15 - 55 3 phases 3 phases... -
Page 21: Wiring
FRANCO srl Manual of use and maintenance UCP 5.2 Wiring All the wires used must be suitable to carry the current intensity (A) of the motor (par. 5.1). Terminal’s screws must be accurately tightened. Make sure that the electricity supply characteristics are exactly as shown in the table (par. 5.1). -
Page 22: Spare Parts
FRANCO srl Manual of use and maintenance UCP 5.3 Spare parts It is highly recommended to use only original spare parts. Orders must be made by specifying what follows: - Device model - Reference of the piece (as indicated as follows) -
Page 23: Problems And Solutions
FRANCO srl Manual of use and maintenance UCP 6 - PROBLEMS AND SOLUTIONS Before undertaking any maintenance, disconnect the device from the electricity and water supply! PROBLEM CAUSE SOLUTION The device does not The power supply is not Verify the electrical connection, or the start. - Page 24 FRANCO srl Manual of use and maintenance UCP FRANCO s.r.l. Headquarters and plant: Via Nazionale n.80 - 12010 - CERVASCA (CUNEO) Italy Tel. (+39) 0171 611663 – Fax (+39) 0171 612337 www.francosrl.com info@francosrl.com For further information, requests or suggestions, please contact us at:...
