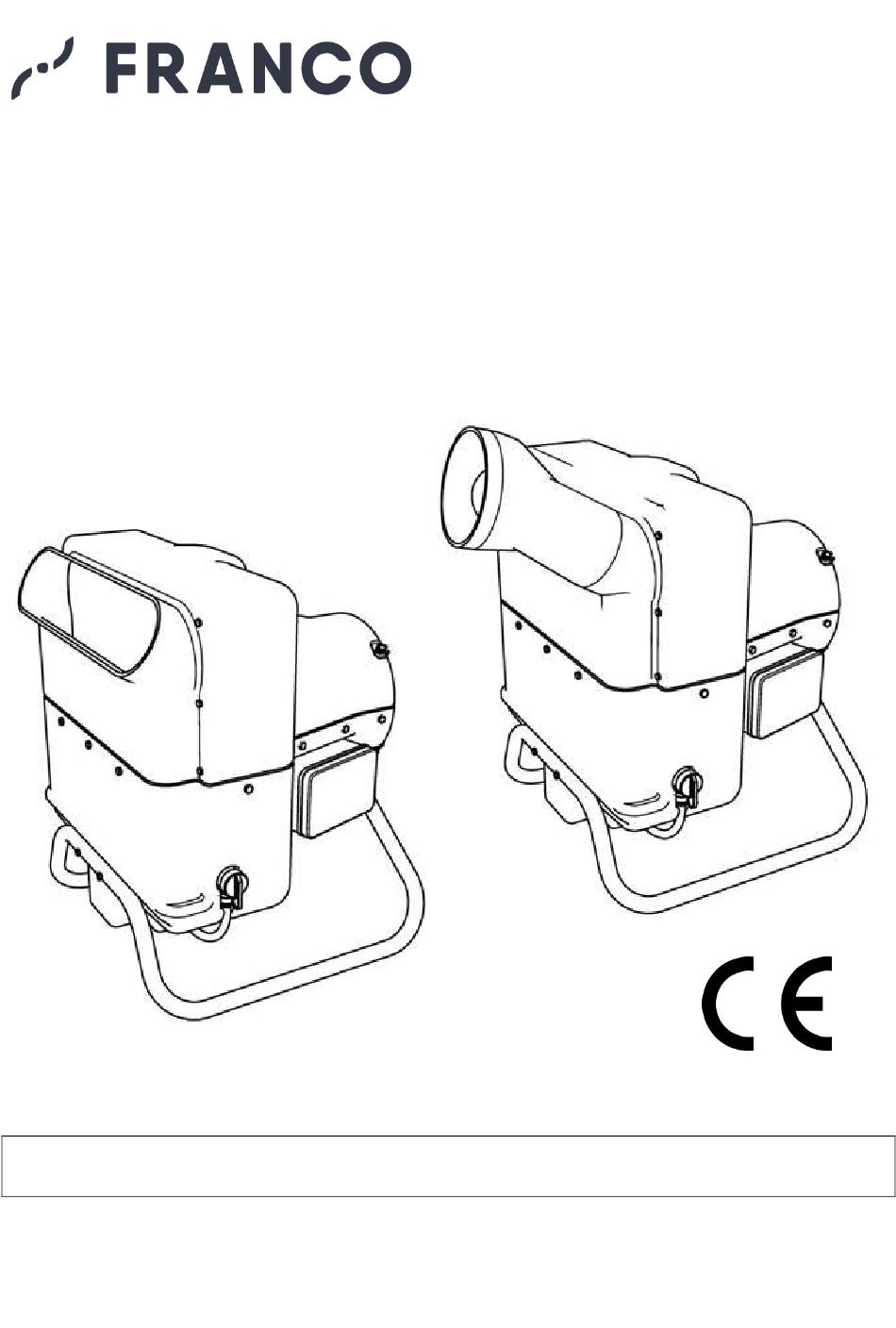

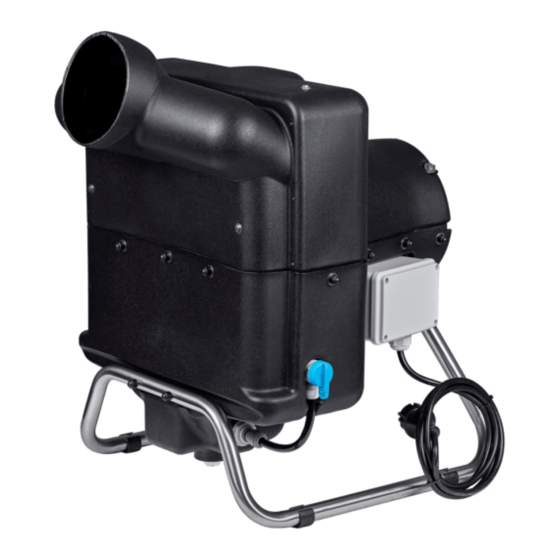

- Page 1 INSTRUCTION MANUAL FOR USE AND MAINTENANCE PROFESSIONAL HUMIDIFIER E N G L I S H Before installing or running the unit, it is mandatory to carefully read and consult this manual. Franco srl – Via Nazionale, 80 12010 Cervasca (CN) Manual Version: 10-001/2020...
-
Page 2: Table Of Contents
FRANCO srl Manual of use and maintenance PH INDEX INDEX ............................2 1 - INTRODUCTION ......................... 3 1.1 General warnings ......................3 1.2 Instructions for proper disposal of the product ..............3 1.3 Conventions used in this manual ..................4 1.4 Instruction manual conservation .................. -
Page 3: Introduction
This device must be used only for the functions it was intended for: "Adiabatic Cooler – Humidifier”. Any other use has to be considered improper and dangerous. Franco s.r.l. cannot be held liable for any damages caused by improper, incorrect or unreasonable use, or if the device is used in systems that do not comply with safety regulations. -
Page 4: Conventions Used In This Manual
FRANCO srl Manual of use and maintenance PH 1.3 Conventions used in this manual The Manual is divided into autonomous chapters, each of which is addressed to a specific operator (installer, operator and maintenance operator), who have the skills needed to operate the machinery safely. -
Page 5: Recipients
FRANCO srl Manual of use and maintenance PH 1.5 Recipients The manual is addressed to: the installer, the operator, and the qualified personnel entitled to the maintenance of the device. EXPOSED PERSON: refers to any person wholly or partially exposed to a danger zone;... - Page 6 FRANCO srl Manual of use and maintenance PH OTHER DEFINITIONS: HUMAN-MACHINE INTERACTION: Any situation in which an operator interacts with the machine in any of the operational phases at any time of the life of the machine itself; OPERATOR’S QUALIFICATION: Minimum level of competence that an operator must have in order to perform the described operation;...
- Page 7 FRANCO srl Manual of use and maintenance PH PICTOGRAMS REGARDING THE OPERATOR’S QUALIFICATION Symbol Description Generic worker: operator lacking of specific competences, capable of performing only simple tasks under the control of qualified technicians. Lifting and handling vehicles driver: operator qualified for the use of vehicles used in lifting and handling materials and machines (carefully following the manufacturer’s instructions), in accordance...
- Page 8 FRANCO srl Manual of use and maintenance PH PICTOGRAMS REGARDING SAFETY Pictograms contained in a triangle indicate DANGER. Pictograms contained in a circle impose PROHIBITION / OBLIGATION.. Pictogram Denomination Hazardous voltage. Entanglement. Dragging. General danger. Do not remove safety devices.
-
Page 9: Applications
The casing is made in PE, the screws are in stainless steel, and the remaining parts of the humidifier are made in PA and PC. The use of materials that resist the corrosive action of water and acids makes the PH a machine capable of working in almost all the environments. -
Page 10: Parts Description
FRANCO srl Manual of use and maintenance PH 1.10 Parts Description Air outlet (PH3,PH5) Handle Centrifugal atomizer Divider (PH3) or Protection grill (PH5 - PH7) Protection grill Electric motor Electric connections box Pump Support Float valve Water flow regulation valve Fig.1.3... -
Page 11: Transport And Handling
Franco s.r.l. from Cervasca (CN), Italy. During the warranty period, the company Franco s.r.l. undertakes to replace or repair free of charge those parts which result faulty from the origin. -
Page 12: Declaration Of Conformity
FRANCO srl Manual of use and maintenance PH 1.15 Declaration of conformity (Att. IIa DIR. 2006/42/CE) THE MANUFACTURER FRANCO S.r.l. Company Via Nazionale, 80 12010 Address Postal code Province Cervasca Italy City Country DECLARES THAT THE MACHINE Humidifier PH3; PH5; PH7... -
Page 13: Installation
Make sure that all the connections necessary to operate the equipment have been properly prepared. 2.2 Positioning The humidifier PH must be installed horizontally, placing the support on the ground or on an appropriate horizontal shelf. If necessary, use the Ø6 holes on the support (remove the pins by levering with a screwdriver). -
Page 14: Hydraulic Connection
FRANCO srl Manual of use and maintenance PH 2.4 Hydraulic connection The installation of the humidifier foresees the connection of the piping lines of the water supply and the drainage, to proper points (Fig. 2.2 – Water supply connection 3/8” – Threaded exhaust hole M12). -
Page 15: Operation
The pump circulates the water bringing it to the rotating disk that nebulizes the water inside the humidifier. The particular shape of the PH humidifier allows only the smallest and lightest particles to come out, carried by the airflow created by the fan. -
Page 16: Maintenance
FRANCO srl Manual of use and maintenance PH 4 - MAINTENANCE Before undertaking any maintenance, disconnect the device from the electricity and water supply! Periodically check that the amount of water reaching the humidifier is correct, if necessary adjust the flow regulator. -
Page 17: Nozzle Replacement
FRANCO srl Manual of use and maintenance PH WARNING! Repeat the sequence in the reverse order, being careful to reposition the float so that the water level inside the tank covers the pump completely. A water level too high may cause a malfunctioning in the atomizing process and, consequently, may overheat the motor. -
Page 18: Float Replacement
FRANCO srl Manual of use and maintenance PH 4.7 Replacing the spinning disk M4 SCREW with washer With a nut driver (pic no. 7) remove the screw M4 that fixes the disk to the motor shaft. Then remove also the washer. -
Page 19: Accessories
FRANCO srl Manual of use and maintenance PH 4.9 Accessories A full range of accessories matching your UCP is available, including electronic humidity controls, thermostats, timing systems for the drainage of the tank (anti-legionella), electric wiring accessories, hydraulic accessories, air conveying and inhalation channeling pipes. -
Page 20: Wiring
FRANCO srl Manual of use and maintenance PH 5.2 Wiring All the wires used must be suitable to carry the current intensity (A) of the motor (par. 5.1). The terminal’s screws must be accurately tightened. Make sure that the electricity supply characteristics are exactly as shown in the table (par. 5.1). -
Page 21: Spare Parts
FRANCO srl Manual of use and maintenance PH 5.3 Spare parts It is highly recommended to use only original spare parts. Orders must be made by specifying what follows: - Device model - Reference of the piece (as indicated as follows) - Page 22 FRANCO srl Manual of use and maintenance PH Pos. Codice parte Qtà Descrizione F.6001001 EXAGONAL HEAD INOX SCREW M4x16 F.1801006 SPINNING DISK WASHER SPINNING DISK CAP (PH5 – PH7) F.1800003 F.1801002 SPINNING DISK F.1801009 SPINNING DISK SPACER 1mm F.1801010 SPINNING DISK SPACER 2mm F.1800022...
-
Page 23: Problems And Solutions
FRANCO srl Manual of use and maintenance PH 6 - PROBLEMS AND SOLUTIONS Before undertaking any maintenance, disconnect the device from the electricity and water supply! PROBLEM CAUSE SOLUTION Verify the electrical connection, or the functioning of the mains itself. - Page 24 FRANCO srl Manual of use and maintenance PH FRANCO s.r.l. Headquarters and plant: Via Nazionale n.80 - 12010 - CERVASCA (CUNEO) Italy Tel. (+39) 0171 611663 – Fax (+39) 0171 612337 www.francosrl.com info@francosrl.com...
