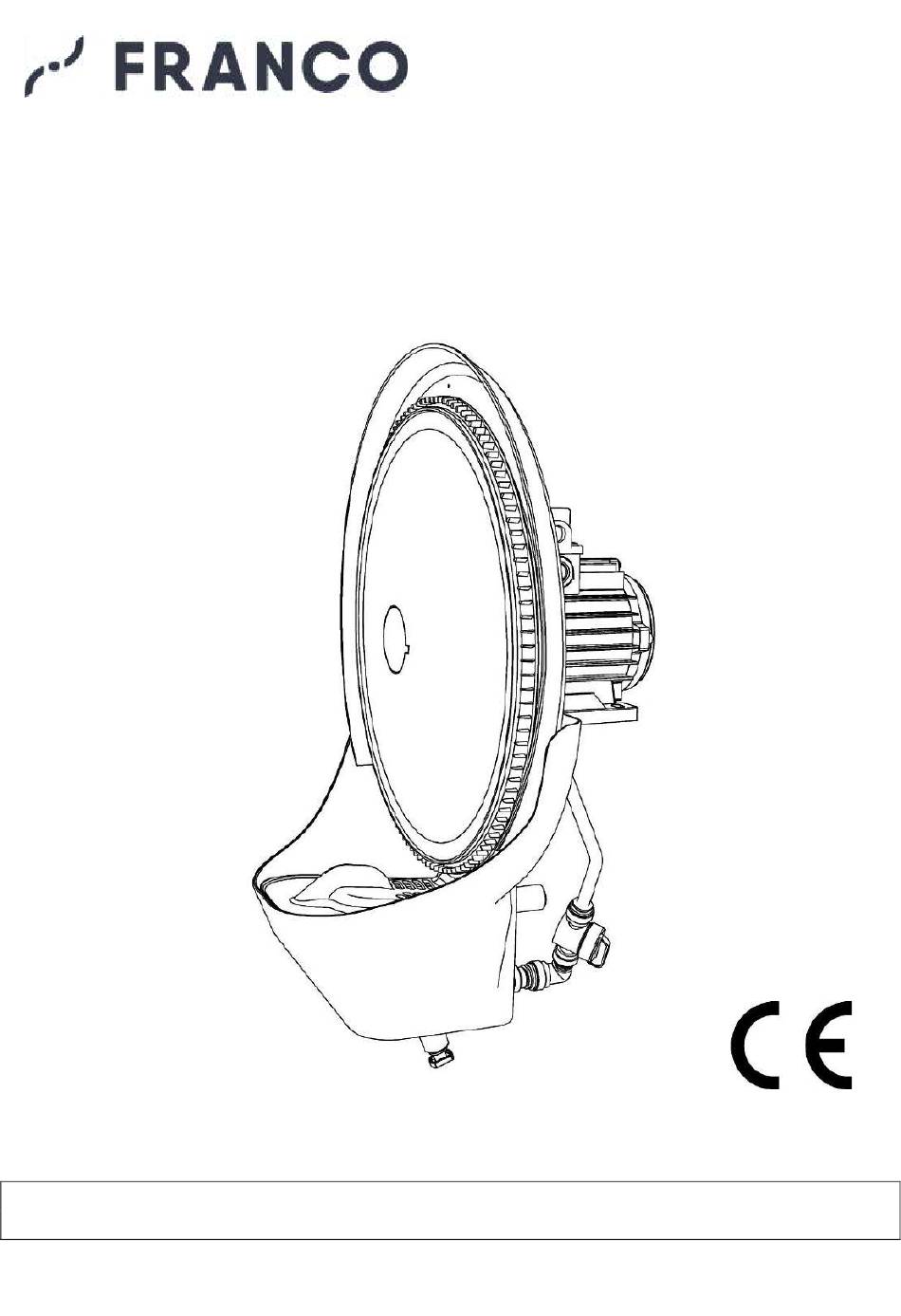

- Page 1 I N S T R U C T I O N S E N G L I S H Read this manual carefully before installing and using the machine Rev. 00/2021 Franco s.r.l. - Via Nazionale, 80 - 12010 Cervasca (CN)
-
Page 2: Table Of Contents
UCP Instruction Manual INDEX 1 - INTRODUZIONE 1.1 General safety warnings 1.2 Guidelines for the correct disposal of the product 1.3 Conventions used in this manual 1.4 Storage and update of the instruction manual 1.5 Target readers 1.6 Pictograms 1.7 Applications 1.8 Versions 1.9 Machine identification and data label 1.10 Appliance description... -
Page 3: Introduzione
This appliance must be used only for the function for which it has been designed: "Adiabatic humidifier / cooler". Any other use is to be considered improper and dangerous. Franco s.r.l. cannot be held responsible for any damage resulting from improper, incorrect and unreasonable use or if the appliance is used in systems that do not comply with current safety standards. -
Page 4: Storage And Update Of The Instruction Manual
UCP Instruction Manual ABBREVIATIONS = Chapter Par. = Paragraph Pag. = Page Fig. = Figure Tab. = Table UNITS The units of measurement used are those of the International System (SI). 1.4 Storage and update of the instruction manual The instruction manual must be kept with care and must accompany the machine in all transfers of ownership that it may have during its life. -
Page 5: Pictograms
UCP Instruction Manual The equipment may be used by persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, provided they are supervised or have received instructions concerning the safe use of the equipment and an understanding of the related hazards. 1.6 Pictograms This section explains the meaning of the pictograms that describe the operator's qualification, the hazards and the obligations/prohibitions to be respected. - Page 6 UCP Instruction Manual SAFETY RELATED PICTOGRAMS (ISO 7010) Pictograms contained in a triangle indicate DANGER. Pictograms contained within a circle impose a PROHIBITION/OBLIGATION Pictogram Description Dangerous electrical voltage. General hazard. Do not remove safety guards and devices. Do not clean, oil, grease, repair or adjust moving parts by hand.
-
Page 7: Applications
HUMIDIFICATION / ADIABATIC COOLING All other uses are considered improper and potentially dangerous. 1.8 Versions The UCP centrifugal dehumidifer is available in the following versions: 1809001 UCP-1 230V 50Hz single-phase 1809003 UCP-3 400V3 50Hz three-phase + neutral 1.9 Machine identification and data label... -
Page 8: Appliance Description
UCP Instruction Manual 1.10 Appliance description Components of the centrifugal humidifier (Fig. 1.10.1) Disc cap Rear cover Rotating disc Fixed disc Nozzle Motor Water inlet ½” Tank cover Protection grid (accessory) Float valve Regulating valve Water pump Water collection tank Drain hole with quick connection ⅜”... -
Page 9: Warranty
Franco s.r.l. Cervasca (CN). During the warranty period, Franco s.r.l. undertakes to supply free of charge those parts that may be defective at the origin. Any technical repair must be carried out by an authorized and qualified technician. -
Page 10: Ce Declaration Of Conformity
Province Cervasca Italy City Country DECLARES under his own responsibility that the machine Humidifier / Cooler UCP-1 / UCP-3 Description Model 1809001 / 1809003 Item number UCP Centrifugal Humidifier Trade name Humidification/Cooling in combination with dynamic ventilation system (air velocity > 3 m/s) -
Page 11: Installation
UCP Instruction Manual 2 - INSTALLATION 2.1 Preliminary operations To make the UCP humidifier operational, you need: • Electrical system with voltage and frequency suitable for the machine, with grounding and protection devices; • Water supply connection: required pressure 2-4 atm (0.2-0.4 MPa); •... - Page 12 UCP Instruction Manual The UCP humidifier is equipped with a high speed rotating disc. Depending on the type of installation, different types of protection guards are required (Fig. 2.2.2): • installation inside ducts or air handling units not accessible from outside: no protection guard required.
-
Page 13: Electrical Connections
UCP Instruction Manual Electrical connections • The electrical connection must be carried out by recognised and authorised technicians in accordance with current regulations. • Make sure that the characteristics of the electrical power supply comply with those indicated on the data label of the appliance. •... -
Page 14: Operation
UCP Instruction Manual 3 - OPERATION 3.1 Preliminary operations Before operating the humidifier, check that: • All connections, both electrical and hydraulic, have been made according to the instructions contained in this manual; • The humidifier is free and clean; •... -
Page 15: Maintenance
UCP Instruction Manual 4 - MAINTENANCE The operations described in this chapter must only be carried out by authorised and qualified personnel, using suitable personal protective equipment. Before carrying out any work on the appliance, disconnect it from the mains and from the water supply. -
Page 16: Replacing And Cleaning The Pump
UCP Instruction Manual 4.3 Replacing and cleaning the pump To replace the pump, proceed as follows: • Unscrew the two cover screws using a Phillips screwdriver and remove the cover. • Unscrew the plastic wing nut from the float arm. Hold down the stop ring in which the pump is connected with a fixed wrench (hex 13) and gently pull the pump out. -
Page 17: Replacing The Float
UCP Instruction Manual Screw M8x40 Fig. 4.4.3 Fig. 4.4.4 • Once the disc has been removed, unscrew the M8x40 screw from the rotating disc. • Apply a small amount of grease on the motor shaft and fit the new disc, checking the alignment of the keys and pressing on the centre, without tapping or forcing excessively. -
Page 18: Accessories
UCP Instruction Manual 4.7 Accessories A complete range of accessories that can be combined with your UCP, such as protection grids, electronic humidity regulators, thermostats, timed systems for draining and cleaning the tank, accessories for electrical wiring and hydraulic installation, is available on request. Ask your supplier for the accessories catalogue for more details. -
Page 19: Technical Specifications
UCP Instruction Manual 5 - TECHNICAL SPECIFICATIONS 5.1 Technical data UCP-1 UCP-3 Atomization capacity three-phase + Power supply single-phase neutral IP56 (motor) IP56 (motor) Degree of protection IP68 (pump) IP68 (pump) Net weight Rated voltage / Frequency V / Hz... -
Page 20: Wiring Diagrams
UCP Instruction Manual 5.2 Wiring diagrams Make sure that the characteristics of the electrical supply voltage comply with those indicated in the table. Use cables with an appropriate section for the rated current (A) of the device (see Par. 5.1 "Technical specifications"). -
Page 21: Troubleshooting Guide
UCP Instruction Manual 6. TROUBLESHOOTING GUIDE The operations described in this chapter must only be carried out by authorised and qualified personnel, using suitable personal protective equipment. Before carrying out any work on the appliance, disconnect it from mains and water supply. FAULT CAUSE SOLUTION... -
Page 22: Spare Part List
UCP Instruction Manual 7. SPARE PART LIST... - Page 23 UCP Instruction Manual...
- Page 24 UCP Instruction Manual FRANCO s.r.l. Headquarters and factory: Via Nazionale n.80 - 12010 - CERVASCA (CUNEO) Italy Tel. (+39) 0171 611663 www.francosrl.com info@francosrl.com For any information or requests you are welcome to contact us at support@francosrl.com...
