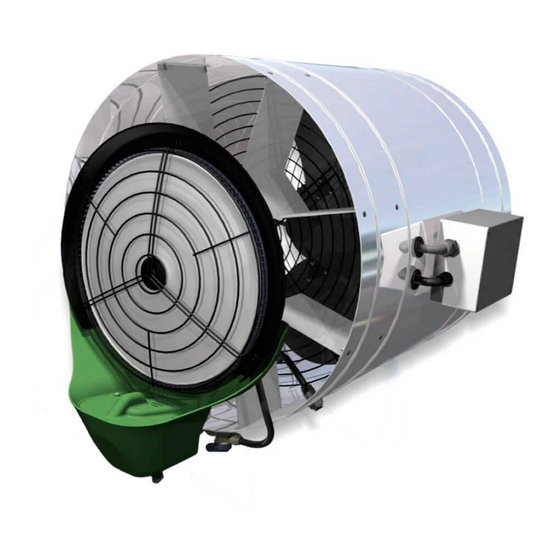

INSTRUCTION MANUAL FOR USE
AND MAINTENANCE
UX
COOLER
HUMIDIFIER
T R A N S L A T E D V E R S I O N F R O M I T A L I A N T O
E N G L I S H
Before installing or running the unit,
it is mandatory to carefully read and consult this manual.
Manual version: 11-001/2020
Franco srl – Via Nazionale, 80 12010 Cervasca (CN)
Advertisement
Table of Contents
Related Manuals for FRANCO UX Series
Summary of Contents for FRANCO UX Series
- Page 1 T R A N S L A T E D V E R S I O N F R O M I T A L I A N T O E N G L I S H Before installing or running the unit, it is mandatory to carefully read and consult this manual. Manual version: 11-001/2020 Franco srl – Via Nazionale, 80 12010 Cervasca (CN)
-
Page 2: Table Of Contents
FRANCO S.r.l. Manual of use and maintenance UX INDEX INDEX ............................2 1 - INTRODUCTION ......................... 3 1.1 General warnings ......................3 1.2 Instruction for the proper disposal of the product ............3 1.3 Conventions used throughout this manual ..............4 1.4 Conservation of the instruction manual ................ -
Page 3: Introduction
This device must be used only for the function it was intended for: “Adiabatic cooler – humidifier”. Any other use has to be considered improper and dangerous. Franco s.r.l. cannot be held liable for any damages caused by improper, incorrect or unreasonable use, of if the device is used in systems that do not comply with safety regulations. -
Page 4: Conventions Used Throughout This Manual
FRANCO S.r.l. Manual of use and maintenance UX 1.3 Conventions used throughout this manual The Manual is divided into autonomous chapters, each of which is addressed to a specific operator’s figure (installer, operator and maintainer), who have the skills needed to operate the machine have been defined. The... -
Page 5: Recipients
FRANCO S.r.l. Manual of use and maintenance UX 1.5 Recipients The Manual is addressed to: the installer, the operator and the qualified personnel entitled to the maintenance of the device. EXPOSED PERSON: refers to any person wholly or partially exposed to a danger zone;... - Page 6 FRANCO S.r.l. Manual of use and maintenance UX OTHER DEFINITIONS: HUMAN-MACHINE INTERACTION: Any situation in which an operator interacts with the machine in any of the operational phase at any time of the life of the machine itself; OPERATOR’S QUALIFICATION: Minimum level of competence that an operator must have in order to perform the described operations;...
- Page 7 FRANCO S.r.l. Manual of use and maintenance UX PICTOGRAMS REGARDING THE OPERATOR’S QUALIFICATION Symbol Description Generic worker: operator lacking of specific competences, capable of performing only simple tasks under the control of qualified technicians. Lifting and handling vehicles driver: operator qualified for the use of vehicles used in lifting and handling materials and machines (carefully following the manufacturer’s instructions), in accordance...
- Page 8 FRANCO S.r.l. Manual of use and maintenance UX PICTOGRAMS REGARDING SAFETY Pictograms contained in a triangle indicate DANGER. Pictograms contained in a circle impose PROHIBITION/OBLIGATION. Pictogram Denomination Hazardous voltage. Entanglement. Dragging. General danger. Do not remove safety devices. Prohibition of cleaning, oiling, greasing, repairing or adjusting by hand when the device is in motion.
-
Page 9: Applications
FRANCO S.r.l. Manual of use and maintenance UX 1.7 Applications In the industrial field, the machine is installed in places where it is necessary to maintain a certain humidity level, for example in fruits and vegetable refrigerating rooms, in aging warehouses, in the paper and tobacco industries, and in textile companies. -
Page 10: Parts Description
FRANCO S.r.l. Manual of use and maintenance UX 1.10 Parts description Protection grid Ventilator Centrifugal atomizer Electrical box Machine body Umidifier motor Water supply fast connection 3/8” Regulation valve Fig. 1.3 Constituent parts of the centrifugal atomizer Rear shelter Spinning disk... -
Page 11: Transport And Handling
Franco s.r.l. from Cervasca (CN). During the warranty period, the company Franco s.r.l. undertakes to replace free of charge those parts which results faulty from the origin. The intervention must be made at Franco s.r.l. with transport borne by the user. -
Page 12: Declaration Of Conformity
FRANCO S.r.l. Manual of use and maintenance UX 1.15 Declaration of conformity (All. IIa DIR. 2006/42/CE) THE MANUFACTURER FRANCO S.r.l. Company Via Nazionale, 80 12010 Address Postal code Province Cervasca Italy City Country DECLARES THAT THE MACHINE Cooler/humidifier UX56M – UX56T - UX71T... -
Page 13: Installation
FRANCO S.r.l. Manual of use and maintenance UX 2 - INSTALLATION 2.1 Before installing In order to start the UX humidifier, it is necessary to comply with the following requirements: Connection to the electric power supply with voltage and frequency suitable for the machine and with grounding and safety devices;... -
Page 14: Electrical Connection
FRANCO S.r.l. Manual of use and maintenance UX 2.3 Electrical connection The installation requires a humidistat or an ON/OFF thermostat controlling the power of the machine; it is also possible to use, as an alternative, an ON/OFF switch, in this case the start and stop of the machine must be done manually. -
Page 15: Starting
FRANCO S.r.l. Manual of use and maintenance UX Limit the water flow with the proper flow regulator in order to obtain a nebulization without droplets dragged by the spinning disk. Warning: an excessive quantity of water increase the size of the droplets. -
Page 16: Pump Replacement
FRANCO S.r.l. Manual of use and maintenance UX Fast connection fitting 3/8” Fig. 4.1 Fig.4.3 4.3 Pump replacement Remove the two screws from the lid using a crosshead or “Philip” screwdriver. Remove the cover pulling it, grapping the grip between the thumb and the forefinger. Unscrew the plastic arm of the float as shown in Fig. -
Page 17: Spinning Disk Replacement
FRANCO S.r.l. Manual of use and maintenance UX 4.7 Spinning disk replacement Remove the cap of the spinning disk. Lever it off using a flat-heat screwdriver on the specific groove. 3~5mm With a nut driver (pic no. 7) remove the M4 screw that fixes the disk to the motor shaft. -
Page 18: Accessories
FRANCO S.r.l. Manual of use and maintenance UX Using a screwdriver (pic no.13) tighten the screw. By tightening the screw into the hole the disk will be pulled out effortlessly. Once the disk is out, unscrew the M8x40 screw and take it off the hole. -
Page 19: Technical Specifications
FRANCO S.r.l. Manual of use and maintenance UX 5 – TECHNICAL SPECIFICATIONS 5.1 Technical data General characteristics UX56-T UX56-M UX71-TT UX71-TS Air flow m³/h 6.700 6.600 15.500 11.000 Atomization capacity lt/h Up to 30 Up to 30 Up to 30... -
Page 20: Wiring Diagram
FRANCO S.r.l. Manual of use and maintenance UX 5.2 Wiring diagram All the wires used must be suitable to carry the current intensity (A) of the motor (par. 5.1). The terminal’s screws must be accurately tightened. Make sure that the electricity supply characteristics are exactly as shown in the table (par. 5.1). -
Page 21: Spare Parts
FRANCO S.r.l. Manual of use and maintenance UX 5.3 Spare parts It is highly recommended to use only original spare parts. Orders must be made by specifying what follows: - Device model - Reference to the piece (as indicated as follows) - Page 22 FRANCO S.r.l. Manual of use and maintenance UX Pos. Code Q.ty Description 1800003 SPINNING DISK CAP 6001001 EXAGONAL HEAD INOX SCREW M4x16 1801006 SPINNING DISK FIXING WASHER 1801002 SPINNING DISK 1801009 SPINNING DISK SPACER 1mm 1801010 SPINNING DISK SPACER 2mm...
-
Page 23: Problems And Solutions
FRANCO S.r.l. Manual of use and maintenance UX 6 - PROBLEMS AND SOLUTIONS Before undertaking any maintenance, disconnect the device from the electricity and water supply! PROBLEM CAUSE SOLUTION The device does not The power supply is no Verify the electrical connection, or the start. - Page 24 FRANCO S.r.l. Manual of use and maintenance UX FRANCO s.r.l. Headquarters and plant: Via Nazionale n.80 - 12010 - CERVASCA (CUNEO) Italy Tel. (+39) 0171 611663 – Fax (+39) 0171 612337 www.francosrl.com info@francosrl.com For further information, requests or suggestions, please contact us at:...
