Summary of Contents for FRANCO UF Mobile

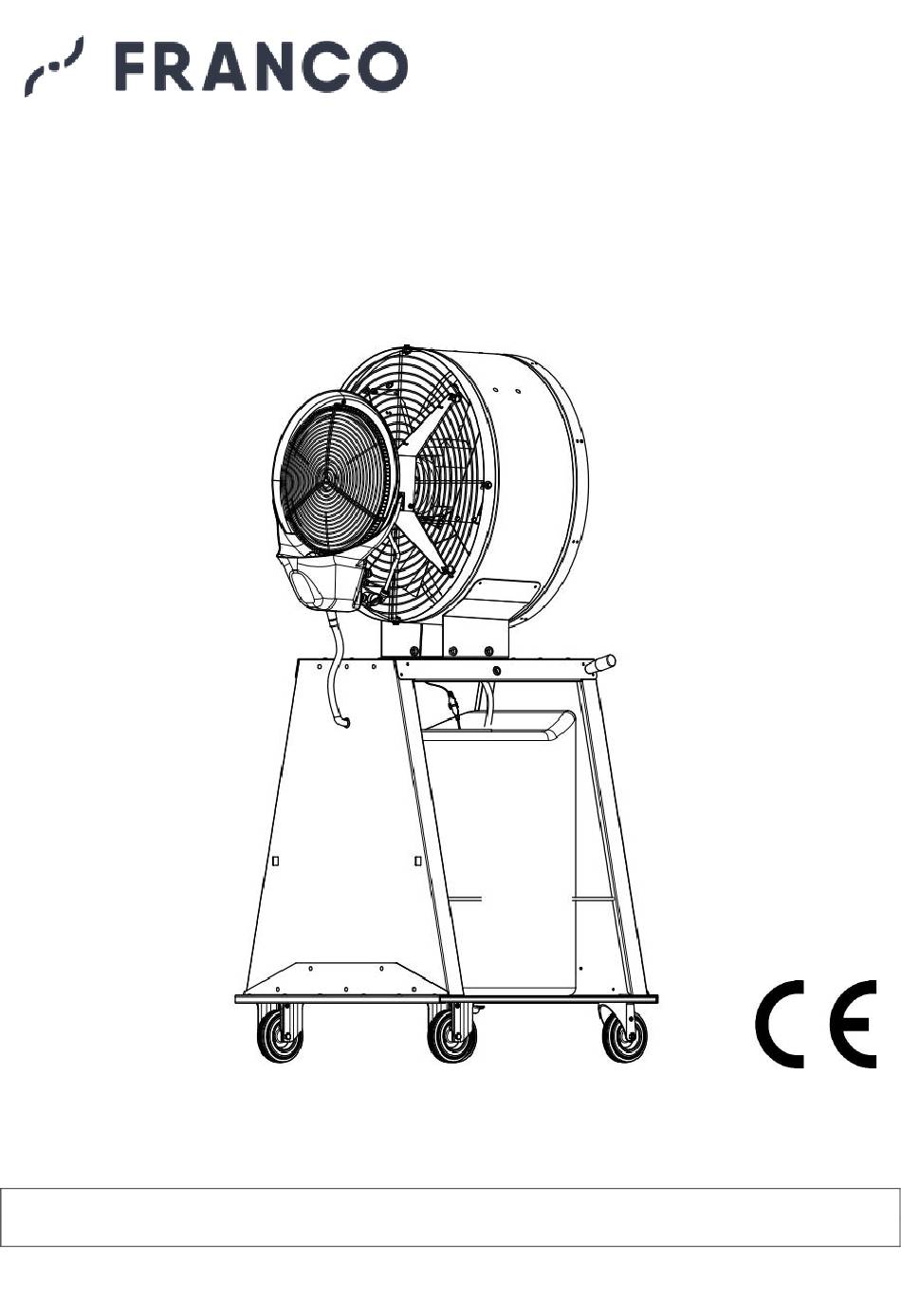

- Page 1 I N S T R U C T I O N S E N G L I S H Read this manual carefully before installing and operating the machine Rev. 00/2022 Franco s. r. l. - Via Nazionale, 80 - 12010 Cervasca (CN)
-
Page 2: Table Of Contents
Operation and Maintenance Manual - UF Mobile INDEX INDEX ............................2 1 - INTRODUCTION ......................... 3 1.1 General safety warnings ......................3 1.2 Guidelines for the correct disposal of the product ..............3 1.3 Conventions used in this manual .................... 3 1.4 Keeping and updating the instruction manual ................. -
Page 3: Introduction
This appliance must only be used for the function for which it was designed: "Adiabatic humidifier/cooler". Any other use is to be considered improper and dangerous. Franco s.r.l. cannot be held responsible for any damage resulting from improper, incorrect and unreasonable use or if the appliance is used in installations which do not comply with the safety regulations in force. -
Page 4: Keeping And Updating The Instruction Manual
Operation and Maintenance Manual - UF Mobile ABBREVIATIONS Cap. = Chapter Par. = Paragraph Page = Page Fig. = Figure Tab. = Table UNITS OF MEASUREMENT The units of measurement used are those of the International System (SI). 1.4 Keeping and updating the instruction manual The instruction manual must be kept with care and must always accompany the machine during its life. -
Page 5: Pictograms
Operation and Maintenance Manual - UF Mobile The appliance may be used by persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, provided that they are supervised or have received instructions concerning the safe use of the appliance and an understanding of the hazards involved. - Page 6 Operation and Maintenance Manual - UF Mobile SAFETY PICTOGRAMS (ISO 7010) Pictograms contained within a triangle indicate DANGER. Pictograms contained within a circle impose a PROHIBITION/OBBLIGATION. Pictogram Description Dangerous electrical voltage. General danger. Do not remove safety devices. It is forbidden to clean, oil, grease, repair or adjust moving parts by hand.
-
Page 7: Applications
The UF Mobile is mounted on a trolley with an integrated water tank, which allows the machine to be easily moved within the room to be humidified or cooled according to the Customer's needs, ensuring maximum versatility of use. -
Page 8: Description Of Equipment
Do not dispose of the packaging elements in the environment: they must be placed in special collection areas. The UF Mobile is a wheeled unit that can be moved horizontally on flat surfaces without the aid of lifting and transport equipment. -
Page 9: Warranty
Franco s.r.l.. During the warranty period, Franco s.r.l. undertakes to supply free of charge those parts that should prove to be defective at the origin. -
Page 10: Ec Declaration Of Conformity
Operation and Maintenance Manual - UF Mobile 1.15 EC Declaration of Conformity THE MANUFACTURER FRANCO s.r.l. Company Via Nazionale, 80 12010 Address Postcode Province Cervasca Italy City State DECLARES under its own responsibility that the machine Humidifier / Cooler UF Mobile... -
Page 11: Installation
2.2 Positioning The UF Mobile humidifier must be placed on a flat and level surface, in a horizontal position. When the machine is in the desired position, lock the rear braked wheel before starting it. Observe the minimum recommended distances for correct machine operation. -
Page 12: Electrical Connections
Operation and Maintenance Manual - UF Mobile 2.3 Electrical connections • Ensure that the electrical installation to which the appliance is connected complies with the electrical safety regulations in force in the country of destination. • Ensure that the supply voltage ratings comply with the ones shown on the nameplate of the appliance. -
Page 13: Start-Up And Operation
The UF Mobile can atomise up to a maximum of 40 l/h of water. However, an excessive water flow rate could result in an increase in droplet size and adversely affect the quality of the fog. -
Page 14: Maintenance
Operation and Maintenance Manual - UF Mobile 4 - MAINTENANCE The operations described in this chapter must only be carried out by authorised and qualified personnel, using suitable personal protective equipment. Before carrying out any work, disconnect the appliance from the electricity and water supplies. -
Page 15: Replacing And Cleaning The Pump
Operation and Maintenance Manual - UF Mobile 4.3 Replacing and cleaning the pump To replace the pump, proceed as follows: • Disconnect the power cord of the pump; • Remove the tank cover; • Disconnect the pump from the bottom of the tank and pull it out through the filling hole;... -
Page 16: Replacing The Nozzle
• Position the new nozzle by repeating the sequence in reverse. 4.7 Accessories A full range of accessories for your UF Mobile is available on request. Ask your supplier for the accessories catalogue for more details... -
Page 17: Technical Specifications
Operation and Maintenance Manual - UF Mobile 5 - TECHNICAL SPECIFICATIONS 5.1 Technical data Atomisation capacity up to 40 Power supply single-phase IP rating IP55 Weight Airflow rate m³/h 8000 Power Voltage V/Hz 230/50 Current Humidifier Power Voltage V/Hz 230/50 Current 5.2 Overall dimensions... -
Page 18: Electrical Diagram
Operation and Maintenance Manual - UF Mobile 5.3 Electrical diagram Check that the electrical ratings of the power supply system comply with the data plate. Install a magnetothermal differential circuit breaker in the circuit upstream of the equipment. Fan motor... -
Page 19: Spare Parts List
Operation and Maintenance Manual - UF Mobile 6. SPARE PARTS LIST GENERAL ASSEMBLY... - Page 20 Operation and Maintenance Manual - UF Mobile...
- Page 21 Operation and Maintenance Manual - UF Mobile FAN ASSEMBLY...
- Page 22 Operation and Maintenance Manual - UF Mobile...
-
Page 23: Troubleshooting Guide
Operation and Maintenance Manual - UF Mobile 7. TROUBLESHOOTING GUIDE The operations described in this chapter must only be carried out by authorised and qualified personnel, using suitable personal protective equipment. Before carrying out any work, disconnect the appliance from the electricity and water supplies. - Page 24 Operation and Maintenance Manual - UF Mobile FRANCO s.r.l Headquarters and factory: Via Nazionale, 80 - 12010 - CERVASCA (CUNEO) Italy Tel. (+39) 0171 611663 www.francosrl.com info@francosrl.com For reports or requests, please contact us at support@francosrl.com...
