Lightronics FXLD348R3I Owner's Manual

Version 0.1
FEATURES AND SPECIFICATIONS
LEDS: 48 3 Watt LEDs (tricolor 3 in 1 RGB)
Beam angle: 25 º
Control system: DMX-512
DMX channels: 3
DMX connectors: 3 pin XLR
Voltage: 120 VAC 50/60Hz
Max power consumption: 200 Watts
Size (LxWxH): 17 3/8" 12 1/4" x 8 1/4 "
Body material: Cast Aluminum
Body color: Black
Weight: 17.6 lbs
DESCRIPTION

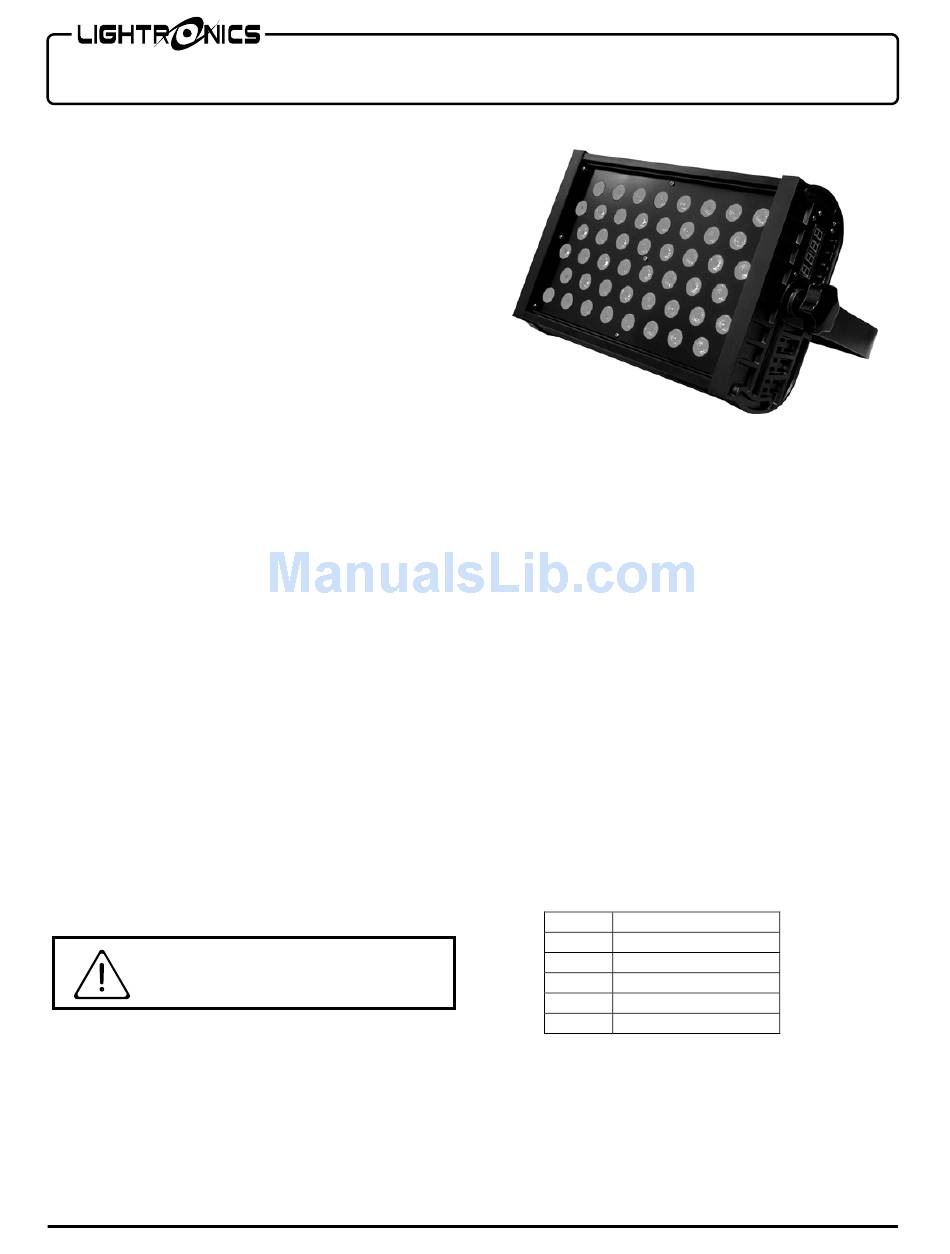

The FXLD348R3I is a RGB LED lighting fixture. It
is suitable for stage, disco, night club, and other artistic
applications. It has several stand alone control modes,
a master/slave mode, and can operate via a DMX-512
external signal.
A double yoke enables it to be operated in several
positions.
INSTALLATION
LOCATION
The FXLD348R3I is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well ventilated area away from
moisture and heat. Holes are provided on the yokes to
install a lighting bar pipe clamp. A safety cable should
also be used.
POWER CONNECTIONS
The FXLD348R3I has a line cord for connection to a
120 VAC, 15 Amp, 60Hz, grounded service.
RISK OF ELECTRIC SHOCK
The safety ground pin on the power cord must be used.
DMX CONNECTIONS
A system using DMX control should be connected as a
chain of devices. In other words the control signal
cable should proceed from the controller to the first
www.lightronics.com
Lightronics Inc.
FXLD348R3I LED FIXTURE
OWNERS MANUAL
CAUTION
509 Central Drive Virginia Beach, Va 234354
receiving device and then to others in a continuous
"daisy chain" fashion.
The fixture has a DMX IN and a DMX OUT connector
to be used to connect the chain. The control cable
should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device pack.
DMX CONNECTOR PIN ASSIGNMENTS
There are two different connectors which can be used
for DMX control. They are both XLR type connectors.
Some units use 3 pin connectors. Others use 5 pin
connectors. The FXLD348R3I receives a DMX signal
on the 3 pin MALE connector on the back of the unit.
The 3 pin FEMALE connector is used to connect the
next DMX device on the control chain. If your console
uses a 5 pin connector you can make up an adapter
cable to accommodate this. The table below shows the
pin assignments for BOTH the 3 pin and 5 pin
connectors.
IN # SIGNAL NAME
1 DMX COMMON
2 DMX DATA -
3 DMX DATA +
4 NOT USED
5 NOT USED
DMX TERMINATION
A DMX chain should be terminated at the last
receiving device on the chain.
installing a commonly available 1/4 Watt, 120 Ohm
resistor across the DATA - and DATA + wires at the
Page 1 of 5
02/16/2012
This is done by
