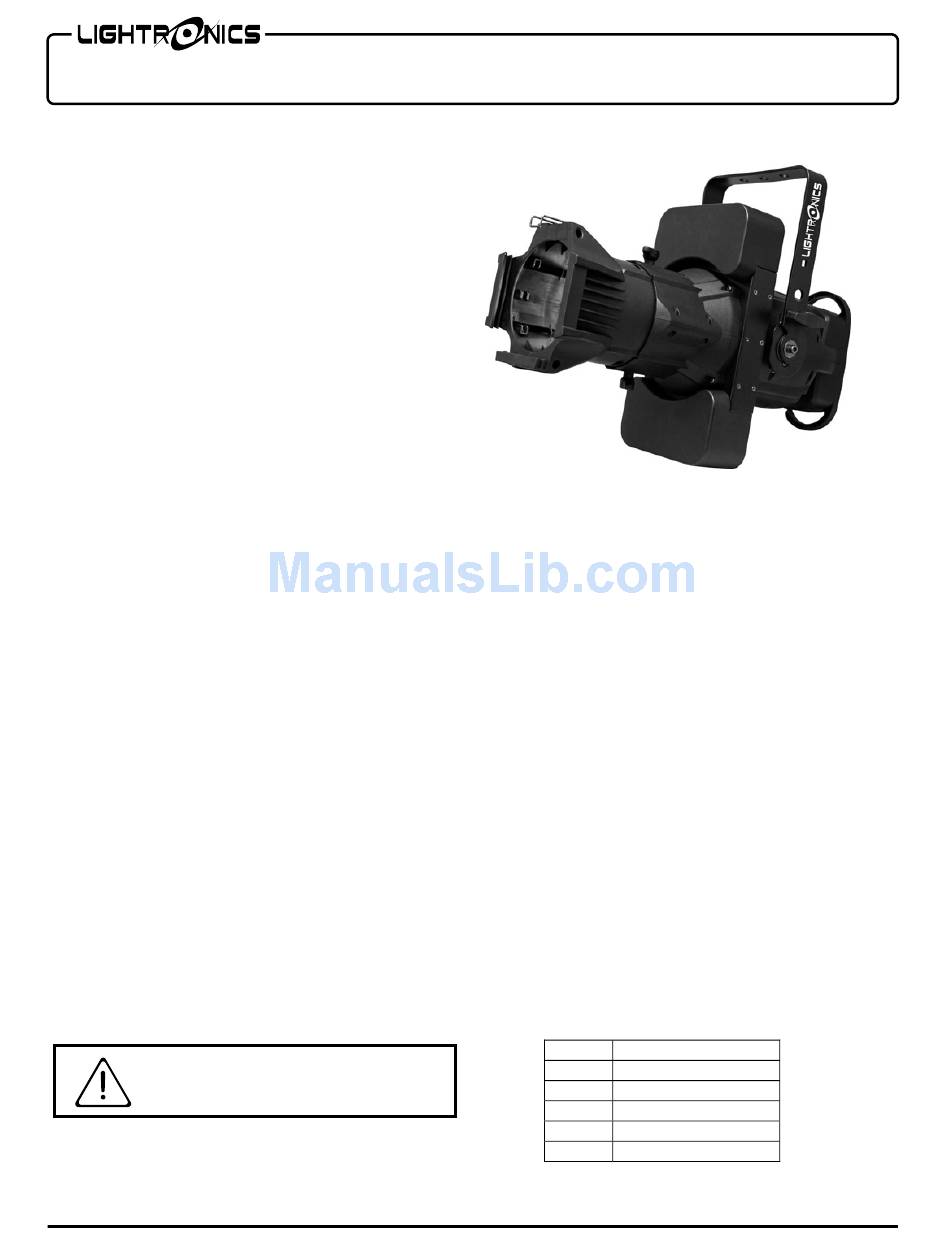

Lightronics FXLD100ECMY26B Owner's Manual

Version 0.1

FEATURES AND SPECIFICATIONS

LED: 100 Watt, White
Color Temp.: 6300deg. K
Beam angle: 26 º
Illumination: 16200 Lux @ 1 meter
Control system: DMX512 + Stand Alone
DMX channels: 7
DMX connectors: 3 pin XLR
Voltage: 120 VAC 50/60Hz
Max power consumption: 150 Watts
Size: 23.9"L x 4 12.3"W x 16"H
Body material: Plastic
Reflector: Glass
Body color: Black
Weight: 16.6 lbs

DESCRIPTION

The FXLD100ECMY26B is a CMY color changing
LED lighting fixture which includes a CTO filter. It is
suitable for stage, disco, night club, and other artistic
applications. It has two automatic stand alone control
modes, and can operate via a DMX-512 external
signal.
A mounting yoke enables the fixture to be operated in
various positions and orientation.

INSTALLATION

LOCATION

The FXLD100ECMY26B is rated IP20 and is intended
for
INDOOR USE ONLY.
Locate the unit in a well ventilated area away from
moisture and heat. Keep the vent holes clear. Holes
are provided on the yokes to install a lighting bar pipe
clamp. Use a safety cable when hanging the fixture.

POWER CONNECTIONS

The FXLD100ECMY26B has a line cord for
connection to a 120 VAC, 15 Amp, 60Hz, grounded
service.
RISK OF ELECTRIC SHOCK
The safety ground pin on the power cord must be used.
www.lightronics.com
Lightronics Inc.
FXLD100ECMY26B LED FIXTURE
OWNERS MANUAL
CAUTION
509 Central Drive Virginia Beach, Va 234354

DMX CONNECTIONS

A system using DMX control should be connected as a
chain of devices. In other words the control signal
cable should proceed from the controller to the first
receiving device and then to others in a continuous
"daisy chain" fashion.
The fixture has a DMX IN and a DMX OUT connector
to be used to connect the chain. The control cable
should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device pack.

DMX CONNECTOR PIN ASSIGNMENTS

There are two different connectors which can be used
for DMX control. They are both XLR type connectors.
Some units use 3 pin connectors. Others use 5 pin
connectors. The FXLD100ECMY26B receives a DMX
signal on the 3 pin MALE connector on one side of the
unit. The 3 pin FEMALE connector is used to connect
the next DMX device on the control chain. If your
console uses a 5 pin connector you can make up an
adapter cable to accommodate this. The table below
shows the pin assignments for BOTH the 3 pin and 5
pin connectors.
IN # SIGNAL NAME
1 DMX COMMON
2 DMX DATA -
3 DMX DATA +
4 NOT USED
5 NOT USED
Page 1 of 4
04/25/2012
757 486 3588
