Lightronics FXLE1232W Owner's Manual

Version 0.1

FEATURES AND SPECIFICATIONS

LEDs: 120 Watt Array.
Color Temp.: 3200 deg. K
Beam Angle: 19º or 26º or 36º (50º Optional)
Control System: DMX512 + Stand Alone
DMX Channels: 2
DMX Connectors: 3 pin XLR
Power Input: 120VAC, 60Hz
Max. Power Consumption: 150 Watts
Body Material: High Impact Plastic
Body Color: Black or White
Reflector: Glass
Gel Frame and Size "B" Gobo Holder Included
Size: 23.9"L x 10.7"W x 11.1"H
Weight: 12 lbs

DESCRIPTION

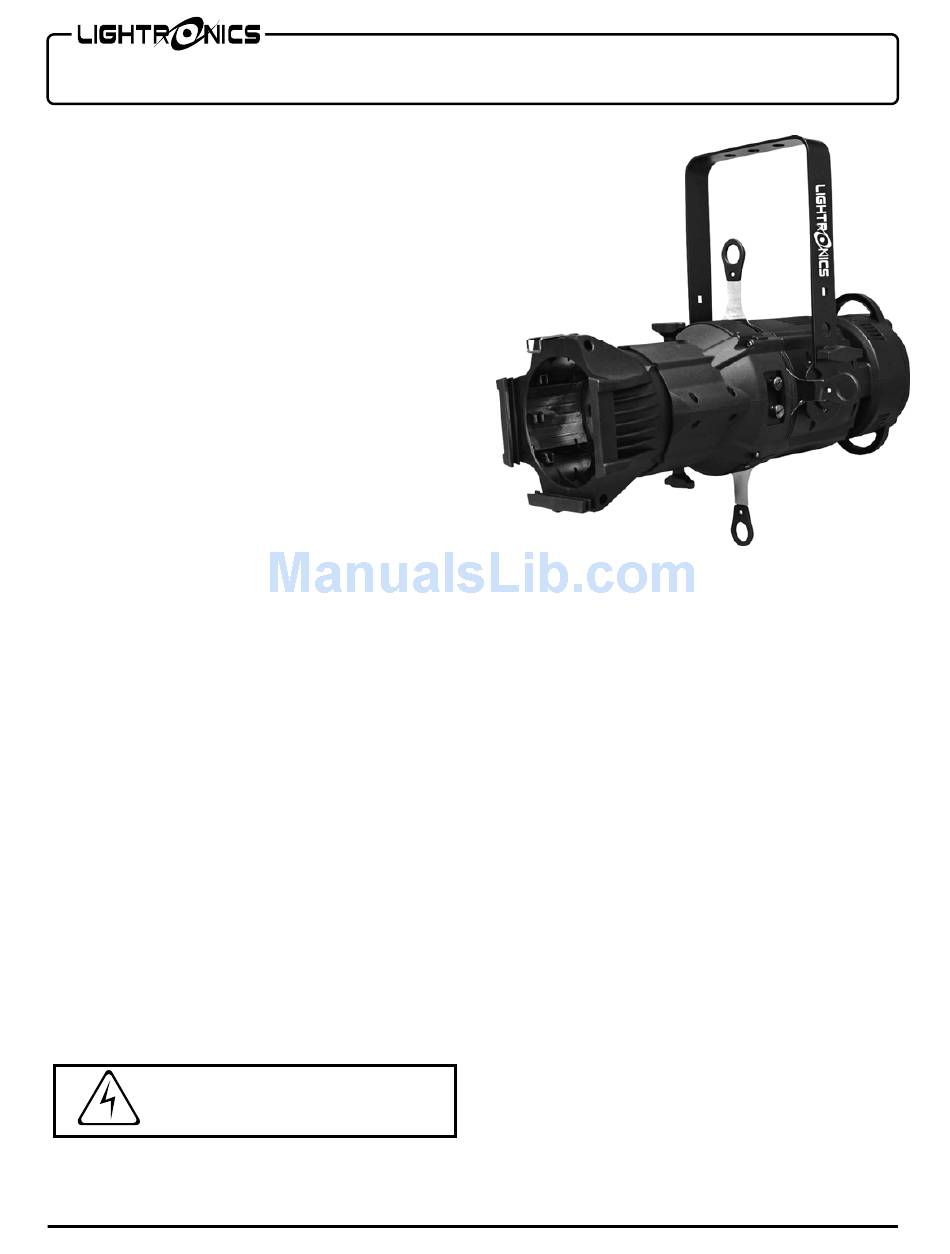

The FXLE1232W is a LED ellipsoidal fixture suitable
for stage, disco, night club, and other artistic
applications. It has automatic stand alone control
modes and can operate via a DMX-512 external signal.
A mounting yoke enables the fixture to be operated in
various positions and orientation.

INSTALLATION

LOCATION

The FXLE1232W is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well ventilated area away from
moisture and heat. Maintain a minimum spacing of
20" between the unit and other objects. The maximum
ambient operating temperature is 45
the vent holes clear. Holes are provided on the yokes
to install a lighting bar pipe clamp. Use a safety cable
when hanging the fixture.

POWER CONNECTIONS

The FXLE1232W has a line cord for connection to a
120 VAC, 15 Amp, 60Hz, grounded service. Do not try
to power the unit from a dimmer pack.
RISK OF ELECTRIC SHOCK
The safety ground pin on the power cord must be used.
www.lightronics.com
Lightronics Inc.
FXLE1232W LED FIXTURE
OWNERS MANUAL
C (113 F). Keep
º º
DANGER
509 Central Drive Virginia Beach, Va 234354

DMX CONNECTIONS

A system using DMX control should be connected as a
chain of devices. In other words the control signal
cable should proceed from the controller to the first
receiving device and then to others in a continuous
"daisy chain" fashion.
The FXLE1232W has a DMX IN and a DMX OUT
connector to be used to connect the chain. The control
cable should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device.

DMX CONNECTOR PIN ASSIGNMENTS

There are two different connectors which can be used
for DMX control. They are both XLR type connectors.
Some units use 3 pin connectors. Others use 5 pin
connectors. The FXLE1232W receives a DMX signal
on the 3 pin MALE connector on the rear of the unit.
The 3 pin FEMALE connector is used to connect to the
next DMX device on the control chain.
If your console uses a 5 pin XLR connector you can
make up an adapter cable to accommodate this. The
table below shows the pin assignments for both 3 pin
and 5 pin XLR connectors.
Page 1 of 4
07/24/2013
757 486 3588
