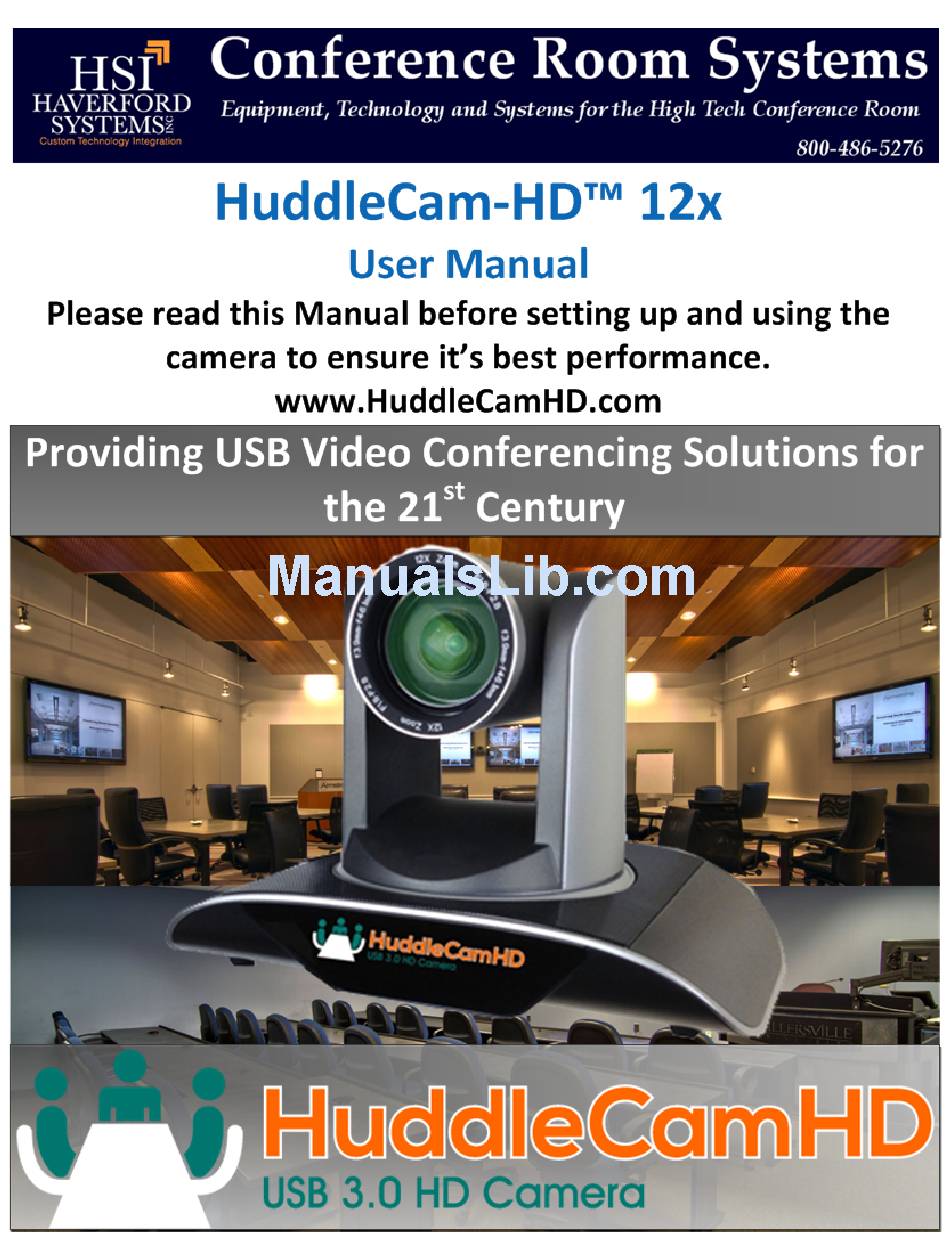

HuddleCamHD HuddleCam-HD 12x User Manual

Usb 3.0 hd camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HuddleCam-HD 12x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HuddleCamHD HuddleCam-HD 12x

Summary of Contents for HuddleCamHD HuddleCam-HD 12x

  • Page 2: Supplied Accessories

    Precautions…………………………………………………………………………………………. Safety Tips……………………………………………………………………………………………. • Please read this manual carefully before using the camera. • Avoid damage from stress, violent vibration or liquid intrusion during transportation, storage or installation. • Take care of the camera during installation to prevent damage to the camera case, ports, lens or PTZ mechanism.
  • Page 3 Rear Board Connectors………………………………………………………………………… High Definition Interface: USB 3.0 B Control Signal Interface: Mini DIN-8 (VISCA IN/RS232) Control Signal Configuration: Dip-Switch Pin 7/TTL Signal; Baud Rate: 9600bps Power Supply Interface: DC 12V Socket Electrical……….……………………………………………………………………………………. Power Supply Adapter: 12V DC/2A Input Voltage: 12V DC (10.5-14V DC) Input Power: 24W (MAX)

  • Page 4: Front View

    Rear Board & Function……………………………………………………………………….. 1. Front View………………………………………………………………………………….. 1. Lens 12x Optical Zoom. 2. Camera Base Base of the camera. 3. IR Receiver To receive IR remote controller signal. Ver 1.1 6/26/14...

  • Page 5: Rear View

    2. Rear View…………………………………………………………………………………………. 7. System Select For selecting output resolution. 8. VISCA IN Port For hard wired remote control from a 3 party PC, joystick, etc... 9. USB 3.0 B Male Interface For connection to PC USB 3.0 port (NOT compatible with USB 2.0 port or driver).

  • Page 6: Bottom View

    2. Bottom View…………………………………………………………………………………. 4. Dip Switches For putting camera in setup modes. 5. Tripod Screw Hole Will accept 1/4-20 bolt from 3 party tripod, wall or ceiling mount. 6. Additional Mounting Holes Will accept 1/4-20 bolt from 3 party tripod, wall or ceiling mount. 4.
  • Page 7 Note: When changing Dip-Switch settings, make all changes with camera powered off. Rotary Switches – For selecting output resolution. Dial Setting Resolution 1080p-60 1080p-50 1080p-30 1080p-25 720p-60 720p-50 720p -30 720p -25 Ver 1.1 6/26/14...
  • Page 8 Cable Connection Info………………………………………………………………………… VISCA RS-232C - IN Reference…………………………………………………………… Ver 1.1 6/26/14...
  • Page 9 OSD MENU…………………………………………………………………………………………….. On Screen Display Menu - Use the OSD menu to access and change the camera’s settings. Note: You cannot manually move the camera (pan/tilt) when the OSD menu is visible on the screen. The Menu is as follows: •...
  • Page 10 • CAMERA OPTION ◦ EXPOSURE ▪ EXP. MODE Default Value: Auto Auto/Manual/Shutter/Iris ▪ SHUTTER Default Value: -- 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/100, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 (Only available in Manual Shutter mode) ▪ GAIN Default Value: -- 0-13 (Only available in Manual Iris mode)
  • Page 11 Gamma Setting: 0-3 ▪ SATURATION Default Value: 3 Saturation Setting: 0-9 ▪ APERTURE Default Value: 5 Aperture Setting: 0-9 ▪ FLICK Default Value: Off Flick Setting 50HZ/60HZ/Off ▪ NR LEVEL Default Value: 2 NR Level Setting: 0-9 ▪ CONTRAST Default Value: 3 Contrast Setting: 0-9 ◦...

  • Page 12: Scan.speed

    ◦ SCAN.SPEED Default Value: 4-15 Move Speed: • V. FORMAT Default Value: by Rotary Switch Selects Output Resolution (Overrides Rotary Switch Setting Until Next Power Cycle) ◦ 1080p60, 1080p50, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 • RESET ◦ SYSTEM. RESET Default Value: NO System Reset: Protocol: VISCA;...
  • Page 13 ◦ Save Yes/No Notice: Press (HOME) key to confirm Press (MENU) key to return to the main menu Ver 1.1 6/26/14...
  • Page 14 IR Remote Controller (Note: Some buttons do not operate for all camera models) Standby key After pressing the standby key, the camera will go into standby mode. Press again, the camera will turn on. (Note: Standby mode power consumption is about half of normal mode consumption) Number keys For setting or recalling presets...
  • Page 15 Connection Instructions……………………………………………………………………… 1. Connect included Power Supply to the camera. 2. Wait for camera to come to Home Position. 3. Connect included USB 3.0 cable to camera and USB 3.0 port of PC. 4. Select and configure camera in your software of choice. NOTE: Failure to follow this sequence may result in no connection to PC.
  • Page 16 Installation Instructions……………………………………………………………………… Desktop Installation……………………………………………………………………………… When using the HuddleCam on a desk, Make sure that it will stand level. If you want to use the camera on an incline, make sure the angle is less than 15 degrees to ensure that the camera’s pan and tilt mechanism operates normally. Tripod Installation…………………………………………………………………………………...

  • Page 17: Troubleshooting

    Troubleshooting………….………………………………………………………………………… Problem Cause Resolution There is no power to the Power adapter is Check the connections camera. disconnected from mains between the camera, or from camera. power adapter and mains. If anything is disconnected, reconnect Power switch is set to OFF. Set the power switch to Camera will not connect to USB cable is bad.
