Page 1: User Manual

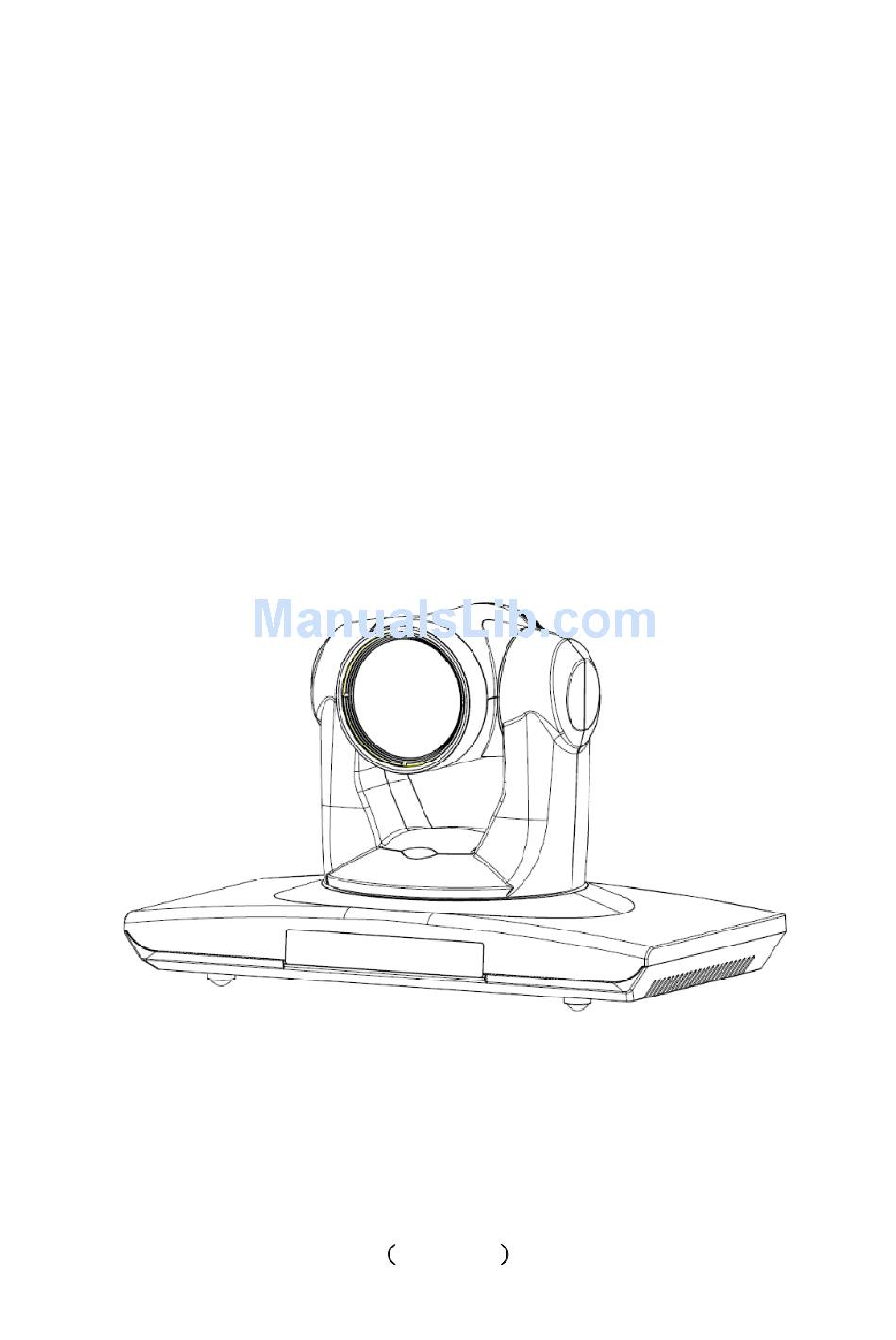

HuddleCamHD 18x USB3.0 HD Color Video Camera User Manual English Contact Sales (800) 486-5276 www.HuddleCamHD.com... - Page 2 Preface: Thanks for using our HD color video conference camera. This manual introduces the function installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Warning This product can be only used in specified range in order to avoid any damage or danger; Don’t expose the camera to rain or moisture place Don’t remove the cover to reduce the risk of electric shock.
-
Page 3: Table Of Contents
Contents NOTES ......................................3 ACCESSORIES....................................3 FAST INSTALLATION ................................3 CAMERA HIGHLIGHTS ................................5 CAMERA SPECIFICATIONS..............................5 CAMERA INTERFACE EXPLANATION..........................6 REMOTE CONTROLLER EXPLANATION...........................7 USAGE OF IR REMOTE CONTROLLER ..........................8 RS-232C INTERFACE (PIN SPECS)............................10 COM CONTROL..................................11 MENU SETTING..................................16... -
Page 4: Notes
Notes Electric Safety Installation and operation must accord with electric safety standards. Caution to transport Avoid stress, vibration and soakage in transport, storage and installation. Polarity of power supply The power supply of the product is ±12V; the max electrical current is 2A. Polarity of the power supply as the following drawing Install Carefully Never move the camera by seizing the camera head. - Page 5 2. Dial switch setting at the bottom Two DIP switch is set to ON; Namely select normal work mode. SW2-2 instruction Undefined Updating mode Debugging mode Working mode 3.rotary switch setting The choice of 16 rotary switch video formats Dial-up 1080P60 1080P50 1080P30...
-
Page 6: Camera Highlights
7.When testing the local video, software "e - CAMView” is available. 8.Test PC PTZ control with "AMCAP_PTZ" software to realize the dual function of video and control.Select “Preview” in the menu “Options” and click “PTZ Control” window through menu “PTZ”. Source code control protocol will be provided in the attachment. -
Page 7: Camera Interface Explanation
video format : 1080P60/50/30/25 720P60/50/30/25 Video Output Interface : USB3.0, DVI-I(including the HDMI and YPbPr signal) Image Sensor : 1/2.8 inch 2 Megapixels high quality HD CMOS Sensor Lens: f4.7mm-84.6mm, (18×optical zoom), F1.8-2.8, angle of view: 62°- 3.2°. Rotation: ±170°for pan rotation, and -30°~+90°for tilt rotation, support up-side down installation. Speed: 0.1°-180°/sec for pan rotation, 0.1°-80°/sec for tilt rotation. -
Page 8: Remote Controller Explanation
Remote Controller Explanation: Definition of IR controller 0 Standby key After pressing the standby key, the camera will step into standby mode.Press again,the camera will open again.(Note: Standby mode power consumption is about half of the normal mode) 1.Number key Setting or locating presets 2.* key Key combination use... -
Page 9: Usage Of Ir Remote Controller
Usage of IR Remote Controller Finishing initialization, it can receive and execute the IR commands. Users can control the pan/tilt/zoom, setting and running preset positions via the IR remote controller. Key Instruction 1 In this instruction, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required. - Page 10 Auto Focus: Press auto Manual Focus: Press manual Press and hold the key, the action of focus continues and stops as soon as the key is released. 4.BLC Setting BLC ON / OFF :not support 5. Presets setting 1 Preset setting : to set a preset position, the users should press the SET PRESET key first and then press the number key 0-9 to set a relative position, 10 preset positions in total are available.
-
Page 11: Rs-232C Interface (Pin Specs)
RS-232C Interface (Pin Specs) Camera Windows DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD1 3.TXD 4.GND 4.DTR 5.RXD1 5.GND 6.RS485-A 6.DSR 7.IR OUT 7.RTS 8.RS485-B 8.CTS 9.RI Camera Mini DIN 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD Function 4.GND 4.GND 5.RXD 5.RXD 6.RS485-A 6.GND 7.IR OUT 7.NC... -
Page 12: Com Control
COM Control In normal working mode, the camera is able to be controlled via RS-232C/RS485 command (VISCA IN) . The parameter of the RS232C/RS485 COM is as following : Baud Rate 2400/4800/9600/115200 bit/s Start bit 1bit ; Data bit: 8bit ; Stop bit : 1bit;... - Page 13 Command Function Commad Packet Note Reset 8x 01 04 03 00 FF 8x 01 04 03 02 FF Manual Control of R Gain CAM_RGain Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain Reset 8x 01 04 04 00 FF...
- Page 14 Command Function Commad Packet Note 8x 01 06 08 02 FF IR_Receive 8x 01 06 08 03 FF IR(remote commander)receive ON/OFF On/Off 8x 01 06 08 10 FF 8x 01 7D 01 03 00 00 FF IR(remote commander)receive message via IR_ReceiveReturn the VISCA communication ON/OFF 8x 01 7D 01 13 00 00 FF...
- Page 15 Command Command Packet Return Packet Note mn pq rs tu vw FF P: 4~9 Video format 4:720P60 5:720P50 6:1080P30 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF 7:1080P25 8:720P30 9:720P25 y0 50 02 FF IR_Receive 8x 09 06 08 FF y0 50 03 FF y0 07 7D 01 04 00 FF Power ON/OFF...
- Page 16 Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 DownLeft 0xA0 Address 0x00 0x14 Pan Speed Tilt Speed 0xAF DownRight 0xA0 Address 0x00 0x12 Pan Speed Tilt Speed 0xAF Zoom In 0xA0 Address 0x00 0x20 0x00 0x00 0xAF Zoom Out 0xA0 Address 0x00...
-
Page 17: Menu Setting
Menu Setting 1. Main Menu In normal working mode, press MENU key to display the menu, using scroll arrow to point at or highlight the selected items. MAIN LANGUAGE SYSTEM OPTION CAMERA OPTION PT OPTION V. FORMAT RESET HELP EXIT LANGUAGE: Language setting, Chinese / English SYSTEM OPTION system setting CAMERA OPTION camera setting... - Page 18 CAMERA SET EXPOSURE COLOR BACK EXPOSURE exposure setting COLOR: color setting LEN: lens setting 3.1 EXPOSURE SETTING Move the pointer to the (EXPOSURE) in the Main Menu, click the HOME and enter the (EXPOSURE SET) as follow, EXPOSURE SET EXP. MODE Auto SHUTTER IRIS...
- Page 19 COLOR WB.MODE R.GAIN B.GAIN GAMMA SATURATION APERTURE FLICK NR LEVEL CONTRAST BACK WB MODE Reset Condition: ATW White balance mode setting: Auto Indoor Outdoor OnePush ATW Manual R.GAIN Reset Condition:Default Red gain setting 0~50 only available in Manual mode B.GAIN Reset Condition:Default Blue gain setting 0~50 only available in Manual mode GAMMA: Reset Condition:0 GAMMA setting: 0~3...
- Page 20 MOUNT.MODE Reset Condition: Up UP, DOWN IR M.SPEED Reset Condition: 16 IR remote control move speed: 5~24 IR Z.SPEED Reset Condition: 07 IR remote control zoom speed: 1~7 MIN.SPEED: Reset Condition: 0 Minimum start speed for serial command: 0~9 SCAN. SPEED: Reset Condition: 10 move speed: 4~15 5.
-
Page 21: Troubleshooting
2, If there is vibrative mechanical object. Remote Controller 1, Change the battery 2, Check the camera operation mode is right. Terminal 1, Check the camera operation mode is right. 2, Check control wire is connected correctly. Contact Sales (800) 486-5276 www.HuddleCamHD.com...
