Model SW-VRS232-2
2-PC video and Serial Switch
With Local and Remote User Stations
UMA1162 Rev. A
SUPPORT &
For technical support, Call 714-641-6607 or fax 714-641-6698
ORDERING
Order by phone: toll-free in the U.S. 800-959-6439
INFORMATION
Web site: www.hallresearch.com
Hall Research Technologies, 1163 Warner Ave. Tustin, CA 92780

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-VRS232-2 and is the answer not in the manual?

Questions and answers

Related Manuals for HRT SW-VRS232-2

Summary of Contents for HRT SW-VRS232-2

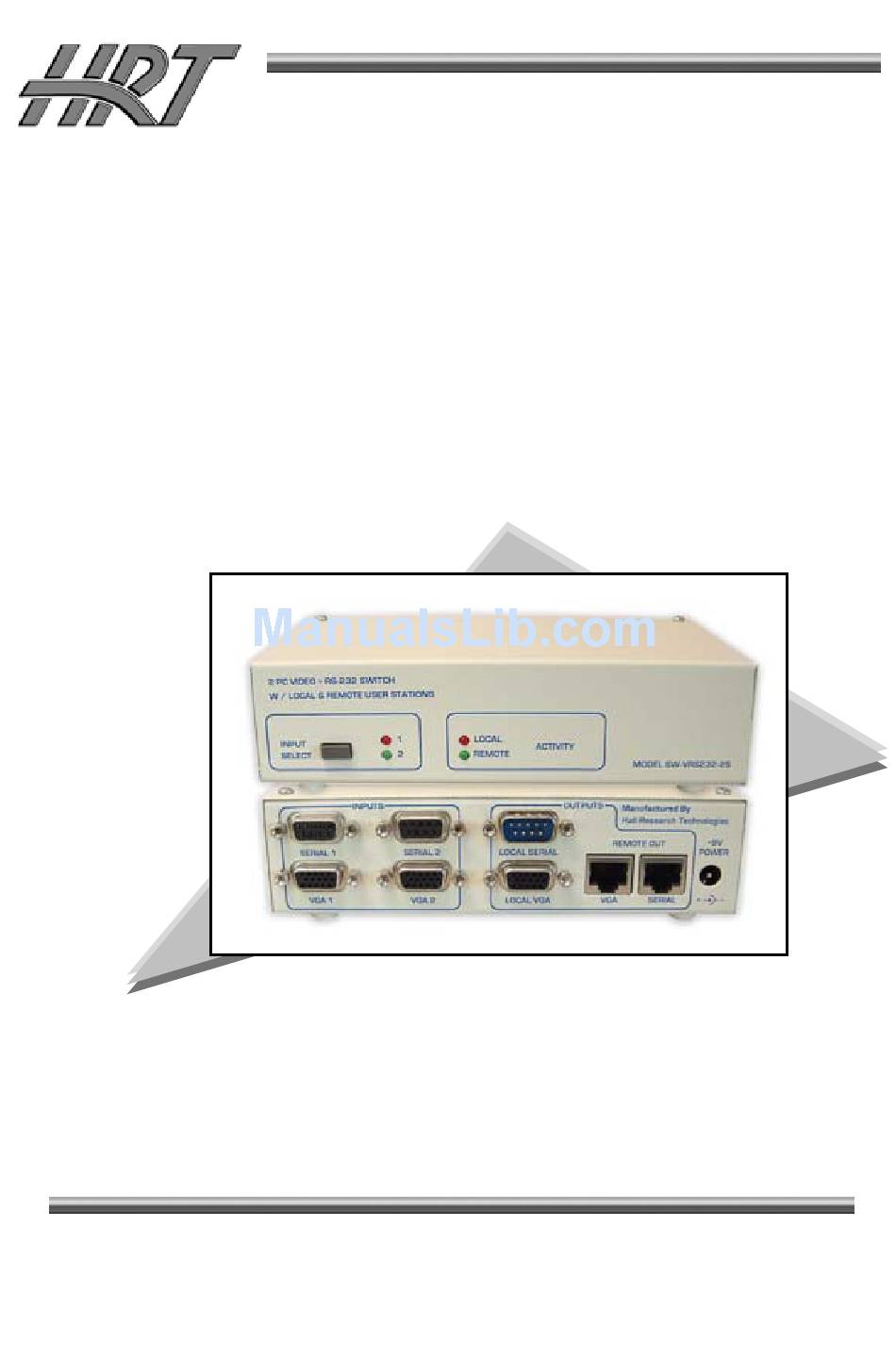

  • Page 1 Model SW-VRS232-2 2-PC video and Serial Switch With Local and Remote User Stations UMA1162 Rev. A SUPPORT & For technical support, Call 714-641-6607 or fax 714-641-6698 ORDERING Order by phone: toll-free in the U.S. 800-959-6439 INFORMATION Web site: www.hallresearch.com Hall Research Technologies, 1163 Warner Ave. Tustin, CA 92780...

  • Page 3: Federal Communications Commission

    Model SW-VRS232 TRADEMARKS USED IN THIS MANUAL Hall Research, HRT, and are trademarks of Hall Research Technologies Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE...

  • Page 4: Table Of Contents

    VGA –RS232 SWITCH AND EXTENDER Contents 1. Introduction................2 1.1 General................2 1.2 Features ................3 2. Installation................4 2.1 Connecting the SW-VRS232-2S ........4 2.2 Connecting the SW-VRS232-2R........5 2.3 Mounting the SW-VRS232-2S..........6 3. Configuration and Operation...........9 3.1 Front Panel LED Indicators ..........9 3.2 Adjusting Remote video quality for long cables....9 3.3 UTP Cable Recommendations........10 4.

  • Page 5: Features

    Model SW-VRS232 The local user can connect to the Sender unit. To add a remote user, an optional 2-gang wall plate would be needed. The optional wall plate connects to the local unit via 2 Catx cables. No power supply is required for the wall plate. One Catx cable is used to extend the Video and the other is used to extend bi-directional RS-232.

  • Page 6: Installation

    VGA –RS232 SWITCH AND EXTENDER 2. Installation 2.1 Connecting the SW-VRS232-2S Figure 2.1 1. For connection to a typical PC, use HD15 M/M cables for Video, and straight- through DB9 M/F cables for RS-232. Connect all devices to the unit and then connect the Power supply to the device.

  • Page 7: Connecting The Sw-Vrs232-2R

    Model SW-VRS232 2.2 Connecting the SW-VRS232-2R 1. If the optional 2-gang wall plate receiver (Model SW-VRS232-2R) will be used, make sure to plug the Catx cables to the correct connector on both ends. The unit is designed so that there is no damage if the cables are cross connected since the power distribution uses the same pins in the UTP cable, but if plugged incorrectly, the system will not work.

  • Page 8: Mounting The Sw-Vrs232-2S

    VGA –RS232 SWITCH AND EXTENDER Note about Touch-Screen LCD’s The system is designed to work the touch-screen LCD’s that use RS-232. USB touch-screens are not supported even if an adapter is used. When 2 stations are used (local and remote), you must ensure that both touch-screens are exactly the same make and model.
  • Page 9 Model SW-VRS232 2. Drill pilot holes where indicated on the stencil, using a 1/16” bit. 3. Screw Selection: Be sure to use the appropriate kind of screw for the surface the unit is being mounted to. It is recommended to use a 1” long, #6 screw (shank = 0.138, or about 9/64”).
  • Page 10 VGA –RS232 SWITCH AND EXTENDER Stencil - Top View with Dimensions (NOT TO SCALE) Side View with Clearance Dimensions (NOT TO SCALE)

  • Page 11: Configuration And Operation

    Model SW-VRS232 3. Configuration and Operation 3.1 Front Panel LED Indicators The SW-VRS232-2S has two sets of LED indicator lights. The Input Select LEDs indicate which input is currently selected. The Activity LEDs light when RS-232 data is being received, and indicate whether it is coming from the local station or the remote.

  • Page 12: Utp Cable Recommendations

    VGA –RS232 SWITCH AND EXTENDER 3.3 UTP Cable Recommendations GREEN GREEN BLUE BLUE Figure 3.2 UTP cables have 4 twisted pairs inside. The video transmission over UTP uses 3 individual pairs for each color (Red, Green, & Blue). As shown in figure 3.2 above, a characteristic of Category-5/5e/6 cable is that the pairs of wires are twisted at different rates.

  • Page 13: Troubleshooting

    If you determine that your switch is malfunctioning, do not attempt to repair the unit. There are no user serviceable parts inside the unit. Opening the unit will void the warranty. Contact HRT’s Tech. Support at 714-641-6607 to obtain an RMA (Return Authorization) number.

  • Page 14: Specifications

    VGA –RS232 SWITCH AND EXTENDER 5. Specifications Standards Analog VGA Video (RGBHV), YPbPr, or RGB signals with sync-on-green. Resolutions All up to UXGA (1600x1200 / 60Hz), 1080p Video Level 0.7 v p-p on RGB, 5v p-p H/V sync Bandwidth 20 Hz to 450 MHz Common Mode Noise Rejection 100 dB @ 60 Hz, 70 dB @ 1 MHz, 50 db @ 10 MHz...
  • Page 16 © Copyright 2009. Hall Research Technologies, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607, Fax: (714)641-6698...
