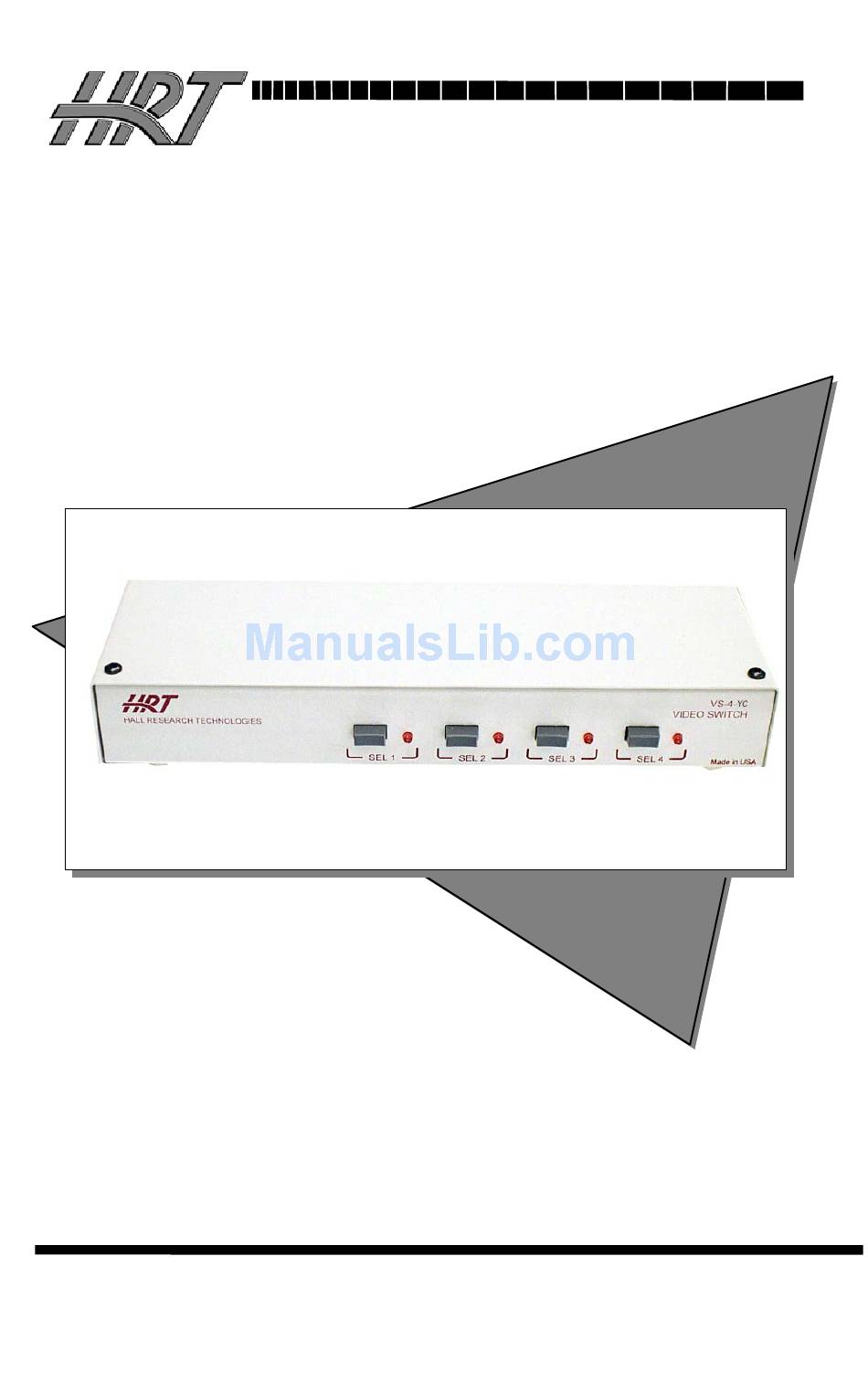

4 x 1 S-Video Switch
with Serial Control
VS4-YC User's Manual
CUSTOMER
Order toll-free in the U.S. 800-959-6439
SUPPORT
FREE technical support, Call 714-641-6607 or fax 714-641-6698
INFORMATION
Mail order: Hall Research Technologies, 1163 Warner Ave. Tustin CA. 92780
Web site: www.hallresearch.com • E-mail: info@ hallresearch.com
UMA1009 Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS4-YC and is the answer not in the manual?

Questions and answers

Summary of Contents for HRT VS4-YC

  • Page 1 4 x 1 S-Video Switch with Serial Control VS4-YC User’s Manual CUSTOMER Order toll-free in the U.S. 800-959-6439 SUPPORT FREE technical support, Call 714-641-6607 or fax 714-641-6698 INFORMATION Mail order: Hall Research Technologies, 1163 Warner Ave. Tustin CA. 92780 Web site: www.hallresearch.com • E-mail: info@ hallresearch.com...
  • Page 2: Federal Communications Commission Statement

    VS4-YC User’s Manual Trademarks Used In this Manual Hall Research, HRT, and (logo) are trademarks of Hall Research Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. Federal Communications Commission Statement...
  • Page 3 1. Introduction 1.1 General The Model VS4-YC is a versatile S-Video (Y/C or S-VHS) Switch with 4 inputs and one output. It is compatible with all TV standards. The selection of the channel to be displayed can be made from individual front panel switches or via RS-232 control port.
  • Page 4 The VS4-YC will enter Normal Mode any time a single front panel button is pressed. The second use of the front panel buttons is to put the VS4-YC into Scan Mode. Press buttons 3 and 4 simultaneously and the VS4-YC will enter Scan Mode.
  • Page 5 Flow Control: None This is what the menu will look like in HyperTerminal™. By pressing the number keys, "1", "2", "3", "4", the VS4-YC will switch to that S-Video input. This will also put the VS4-YC into Normal Mode. Pressing "s" will put the VS4-YC into Scan Mode. Before the VS4-YC enters Scan Mode, you will be asked how many seconds between switching: "Seconds between switching? (1-60)".
  • Page 6: Troubleshooting

    4. Troubleshooting Contacting Hall Research and Shipping/Packaging Contact HRT Support at 714-641-6607 or via email or web. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description. If you need to ship your unit for repair, make sure to get a RMA number first.
  • Page 8 Products Designed and Made in the USA CUSTOMER Order toll-free in the U.S. 800-959-6439 SUPPORT FREE technical support, Call 714-641-6607 or fax 714-641-6698 INFORMATION Mail order: Hall Research Technologies, 1163 Warner Ave. Tustin CA. 92780 Web site: www.hallresearch.com • E-mail: info@ hallresearch.com...

Table of Contents
