Huddle Hub
Installation Guide

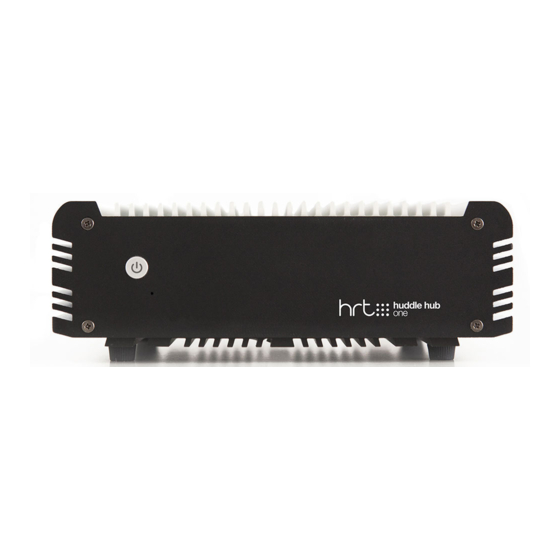

Models: One SRE, One+ SRE, One MRE, One+ MRE
Product version 3.0 - Manual version 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Huddle Hub One SRE and is the answer not in the manual?

Questions and answers

Summary of Contents for HRT Huddle Hub One SRE

  • Page 1 Huddle Hub Installation Guide Models: One SRE, One+ SRE, One MRE, One+ MRE Product version 3.0 - Manual version 1...
  • Page 2 Specifications are subject to change without notice. HRT and Huddle Hub trademarks and logos are trademarks of HRT Srl. Any non-HRT products and corporate names may or may not be registered trademarks or copyrights of their respective companies and are used for reference purposes only without intent to infringe.
  • Page 3: Table Of Contents

    Table of Contents Introduction ............................ 2 1.1 Huddle Hub ........................... 2 1.2 Documentation ........................3 Understanding Huddle Hub ......................4 2.1 Rooms, Sessions and Roles ....................4 2.2 TV, Wireless Webcam and Multicam ................... Installing Huddle Hub One ......................7 3.1 Content of the bo ........................
  • Page 4: Introduction

    The Huddle Hub unit is currently available in four versions: Short name used Product name Connectivity Smart Rooms in the manual Huddle Hub One SRE HHO SRE Wired Huddle Hub One+ SRE HHO+ SRE Wired + Wireless Huddle Hub One MRE...
  • Page 5: Documentation

    "3.0" (e.g. 3.0.1, 3.0.5 etc) and it's version 1 of the manual itself. HRT supports only the latest release of its software, which is always available free of charge. Users and IT Managers are invited to keep their HHApp and HHO units up to date, and to download the most recent version the manuals from the support section of HRT website.
  • Page 6: Understanding Huddle Hub

    2 Understanding Huddle Hub 2.1 Rooms, Sessions and Roles Rooms and Sessions session For our purposes, a is the sitting together of a group of people, with the intent of either making or assisting to a presentation, or to perform a video-conference. A session happens in a room, which usually corresponds to a physical place where the participants meet.
  • Page 7: Tv, Wireless Webcam And Multicam

    Passcode passcode Sessions can be protected with a , which ensures the privacy of your meeting. The passcode is a 4 digits random number, generated when the session starts, that is visible on the TV screen or in the toolbar of the participant that started the session or in the one of the participants that already joined it.
  • Page 8 the TV. This is always possible in the hub room Wireless Camera USB Webcam Smart Rooms HHO can also connect a . This is not possible in the , because it has to be plugged to the unit.The HHO unit will make this webcam available to the HHApp clients connected to the room, through a virtual camera driver, with no need of any cable.
  • Page 9: Installing Huddle Hub One

    3 Installing Huddle Hub One 3.1 Content of the box The Huddle Hub One or Huddle Hub One+ box contains the following items: Huddle Hub unit, model One or One+ according to what you bought. · AC-DC adapter. · Power cord. ·...
  • Page 10: Installation Guidelines

    3.2 Installation guidelines please follow these important guidelines When installing HHO, The product should not be located in a place where it will be exposed to moisture or excessive heat. · Place your HHO unit in a well-ventilated place, far from any heater or heating vent. ·...
  • Page 11: Front Panel

    After the first installation, and at every power-on or reboot, HHO connects to the HRT software repository to check for firmware updates and automatically installs its own latest release. For this reason, HHO may appear unresponsive for few minutes after power-on or reboot.
  • Page 12: Rear Panel

    3.4 Rear anel Power su Plug the power cord to the AC-DC power supply and connect the power supply to the DCIN connector. Connect the power supply to the wall socket. Verify that the green LED on the front panel is on and solid to confirm that the hardware is connected correctly.
  • Page 13 The USB webcam port can be connected to any standard UVC webcam (USB Video Device Class). The USB port is a standard USB 3.0 Type-A. The TV port output can be connected to a TV screen using a standard HDMI cable (not supplied). ntennas (HHO+ Gently hand-tight the supplied Wi-Fi antennas on the two ANT connectors.
  • Page 14: Deployment

    4 Deployment 4.1 Usage Scenarios As explained in the Introduction, the Huddle Hub product family gives you access to new and unprecedented collaboration models. You can make your presentations from the screen of your computer or mobile device to a TV, but also to the screen of other devices, with no need for a specifically equipped place.
  • Page 15: Huddle Room

    4.1.1 Huddle Room Huddle Rooms are small meeting areas, typically seating 4 to 8 people. In such a room, you can connect your large display - if any - to the HDMI port of HHO. If your room does not feature a large display nor a projector, you can still use HHO to make presentations, simply sending them directly to the screen of the other participants' PCs or...
  • Page 16: Auditorium

    4.1.3 uditorium The HHO MRE and HHO+ MRE models support a third Operation , called , which allow mode Auditorium up to 150 participants receiving the presentation on their devices and is perfectly suitable for large conference rooms. Like in the mode, Smart Meeting Rooms get disabled, and in this...
  • Page 17: Network Topology

    When you want to make presentations using the TV screen of rooms other than the main room where your HHO unit is placed, obviously you cannot plug them to the HHO unit, but you have to exploit HHO ability to send presentation to the screen of other devices. In fact, those TV sets can receive the presentation provided that they are: Smart TVs web viewer...
  • Page 18: Single Network

    4.2.1 Single Wired Connection This is the only network configuration allowed by Huddle Hub One, which has a single, wired network adapter. In this configuration, HHO wired network interface is connected to the company LAN through an Ethernet cable. The corporate users remain connected to their usual Wi-Fi network and their devices reach HHO through a company access point.
  • Page 19 Wireless Connection only In case you install your HHO+ unit in a place where you have no wired connection to the company LAN, you can configure HHO+ wireless network adapter in Station Mode to make it as a client of a corporate access point.
  • Page 20: Dual Network

    4.2.2 Dual ccess oint Mode only In this dual network configuration you use the wired network adapter to connect to the company LAN, and set HHO+ wireless adapter to Access Point Mode to provide an additional Hot Spot and grant limited access to guests.
  • Page 21 Station Mode only In case you company already has a network dedicated to guests, you can use the following dual network configuration to use the wired adapter to connect HHO+ to the company LAN, and the wireless adapter - set to Station Mode - to connect HHO+ to the guest LAN. The corporate users remain connected to their usual Wi-Fi network and their devices reach HHO+ through a company access point.
  • Page 22: Index

    Index Huddle room 13 - A - Installation Installation Guide 3 DC adapter 7, - L - e spea er 4 ndroid dongle ndroid TV , 14 D indicator ntennas 10 shape mounting it 7, uditorium 14 Manuals 3 Configuration Guide 3 Meeting room 13 Mounting L-shape...
  • Page 23 Android - P - connecting TV port 10 articipant 4 articipants imum number 4 asscode 4 Usage scenarios 12 er cord 7, ebcam port 10 er supply 10 User Guide 3 resenter 4 rimary room 4 - Q - mounting it 7, Video conference...

This manual is also suitable for:

Huddle hub one+ sreHuddle hub one mre
