SMA SUNNY TRIPOWER 5000TL User Manual
Pv inverter
Hide thumbs
Also See for SUNNY TRIPOWER 5000TL:
- Replacement manual (209 pages) ,
- Quick reference manual (122 pages) ,
- Operating manual (74 pages)
Related Manuals for SMA SUNNY TRIPOWER 5000TL
Summary of Contents for SMA SUNNY TRIPOWER 5000TL

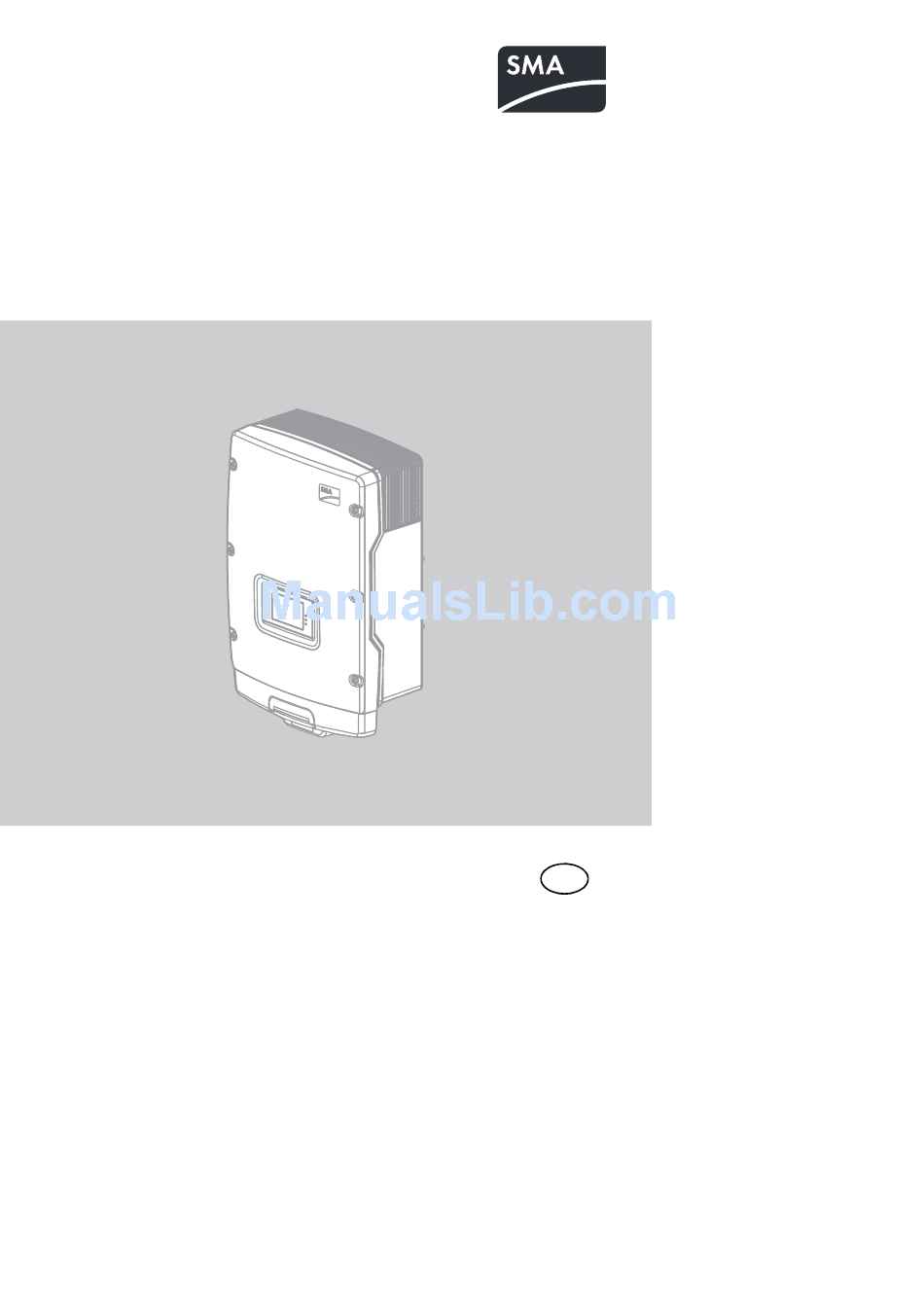

- Page 1 PV Inverter SUNNY TRIPOWER 5000TL / 6000TL / 7000TL / 8000TL / 9000TL User Manual STP 5-9T L -BA-en-10 | TBE N-STP 5-9TL| Version 1.0...
-
Page 3: Table Of Contents
SMA Solar Technology AG Table of Contents Table of Contents Information on this Document..... . . 5 Safety ......... . 7 Intended Use. - Page 4 Table of Contents SMA Solar Technology AG STP 5-9TL -BA-en-10 User Manual...
-
Page 5: Information On This Document
SMA Solar Technology AG 1 Information on this Document Information on this Document Validity This document is valid for the following device types as of firmware version 2.00: • ST P 5000TL -20 • ST P 6000TL -20 • ST P 7000TL -20 •... - Page 6 1 Information on this Document SMA Solar Technology AG Nomenclature Complete designation Designation in this document Electronic Solar Switch E SS P V plant P lant ® SMA Bluetooth Wireless Technology Bluetooth Sunny T ripower Inverter, product SMA Webconnect function...
-
Page 7: Safety
Figure 1: Design of a P V plant with Sunny Tripower The Sunny Tripower is suitable for indoor and outdoor use. Alternative uses of the Sunny Tripower not expressly recommended by SMA Solar Technology AG are not permitted. For safety reasons, it is not permitted to modify the product or install components that are not explicitly recommended or distributed by SMA Solar Technology AG for this product. -
Page 8: Safety Precautions
2 Safety SMA Solar Technology AG 2.2 Safety Precautions Electric Shock High voltages that can cause fatal electric shocks are present in the live components of the inverter. • Do not open the inverter. • All work on the inverter (e.g. repairs, modification) must be carried out by skilled persons only. -
Page 9: Product Description
SMA Solar Technology AG 3 P roduct Description Product Description 3.1 Sunny Tripower The Sunny Tripower is a transformerless P V inverter with two MP P trackers, that converts the direct current of the P V array into grid-compliant three-phase current and feeds this into the electricity grid. -
Page 10: Symbols On The Inverter
3 P roduct Description SMA Solar Technology AG Symbols on the Inverter Symbol Designation Explanation Inverter This symbol defines the function of the green L E D. The green L E D indicates the operating state of the inverter. Observe the documentation. -
Page 11: Display
SMA Solar Technology AG 3 P roduct Description 3.2 Display The display shows the current operating data of the inverter (e.g. current power, daily energy, total energy) as well as any events and errors. The energy and power are displayed as bars in the diagram. - Page 12 3 P roduct Description SMA Solar Technology AG Position Designation Explanation Input voltage/ input Displays input voltage and input current of one input in current alternation Event number relating E vent number of errors relating to the P V array...
- Page 13 SMA Solar Technology AG 3 P roduct Description Symbol Designation Explanation Webconnect function Indicates that connection to Sunny P ortal is possible Multi-function relay Indicates that the multi-function relay is active Thermometer Indicates that the power of the inverter is limited...
-
Page 14: Type Label
Sunny P ortal You require the information on the type label to use the inverter safely and for and for SMA Service L ine support. The type label must be permanently attached to the inverter. STP 5-9TL -BA-en-10 User Manual... - Page 15 SMA Solar Technology AG 3 P roduct Description Symbols on the Type Label Symbol Designation Explanation Danger to life due to high T he product operates at high voltages. voltages All work on the inverter must be carried out by skilled persons only.
-
Page 16: Electronic Solar Switch (Ess)
The inverter is equipped with Bluetooth communication as standard. Additionally, it features Speedwire communication with Webconnect function. T he inverter can communicate with special SMA communication products (e.g. data logger, software) and other inverters via Bluetooth. If you would like to communicate via Bluetooth, you can protect the inverter with a plant password for the user and a plant password for the installer. -
Page 17: Led Signals
SMA Solar Technology AG 4 L E D Signals LED Signals The L E Ds indicate the operating state of the inverter. Designation Status Explanation Green L E D glowing Operation In the case of an event, the event message is shown in the display. -
Page 18: Cleaning The Inverter
5 Cleaning the Inverter SMA Solar Technology AG Cleaning the Inverter • Damage to the display due to the use of cleaning agents • If the inverter is dirty, clean the enclosure lid, the display and the L EDs using only clean water and a cloth. -
Page 19: Glossary
SMA Solar Technology AG 6 Glossary Glossary Bluetooth Bluetooth is a radio technology that allows the inverter and other communication products to communicate with each other. For Bluetooth communication, the Bluetooth devices do not need to be within sight of each other. -
Page 20: Contact
7 Contact SMA Solar Technology AG Contact If you have technical problems, first contact your installer. The following information is required in order to provide you with the necessary assistance: • Inverter device type • Inverter serial number • Firmware version of the inverter •... - Page 23 Legal R estrictions The information contained in this document is the property of SMA Solar Technology AG. P ublishing its content, either partially or in full, requires the written permission of SMA Solar Technology AG. Any internal company copying of the document for the purposes of evaluating the product or its correct implementation is allowed and does not require permission.
