sing Your Cooktop

Using the surface burners

Your cooktop has sealed gas burners with an electric
ignition system. The sealed burners spread the heat
evenly across the bottom of the cookware and
provide infinite heat control.

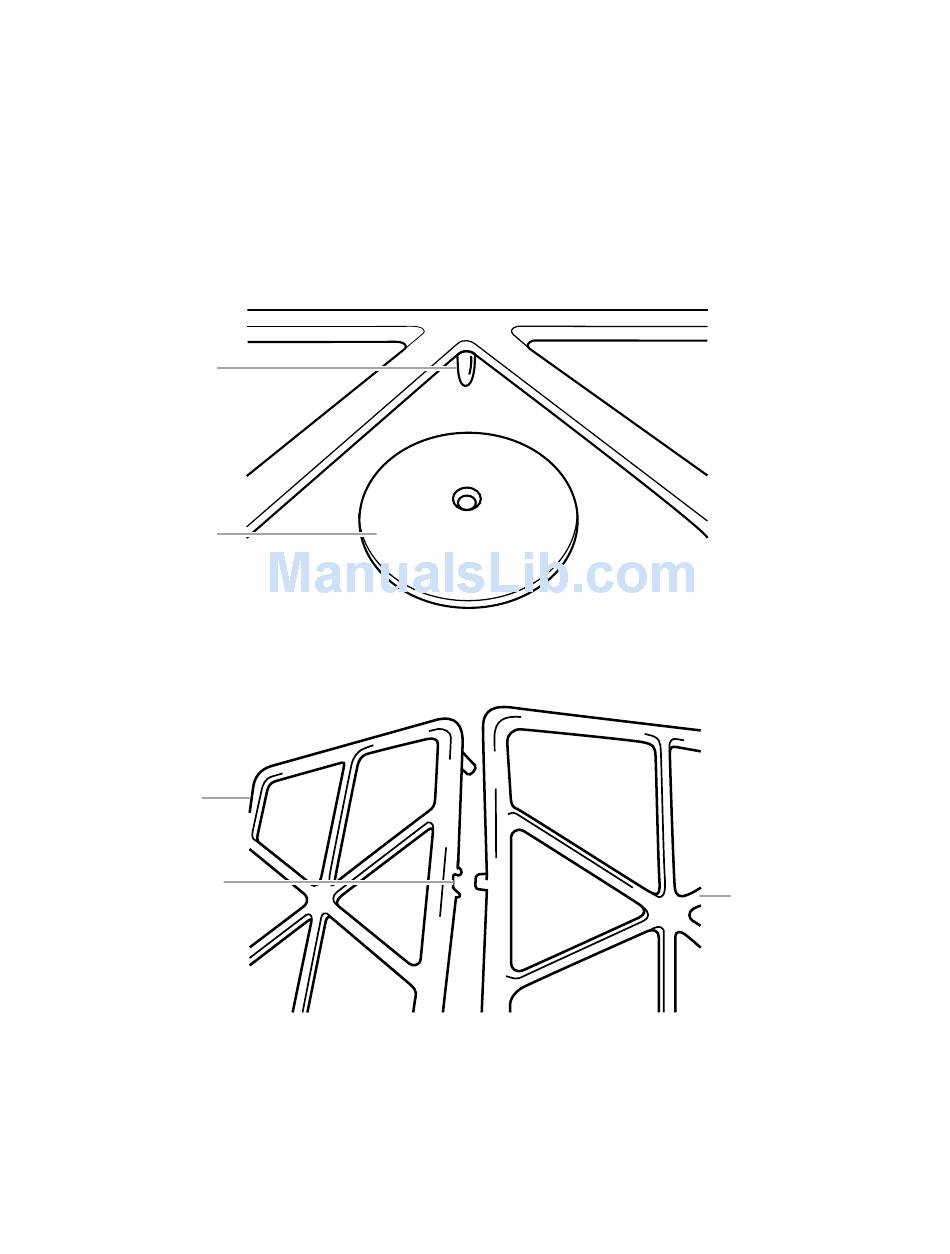

Surface Grates
Locator
pin
Burner
cap
The locator pin on the grate must be positioned in the burner cap hole to hold the grate in
place.
Left
grate
Groove
The grates located on the left and right side of the cooktop contain grooves. These grooves
must always face inward toward the control knobs to hold the grates in place.
NOTE: (On some models) The middle grate must be placed in position first followed by the
left and right grates (see pp. 5-11 for illustration)
12
IMPORTANT: Your cooktop is factory-set for use
with Natural Gas. If you wish to use L.P. gas, an
L.P. Gas Conversion Kit is provided with the unit.
The conversion must be done by a qualified
service technician.
Middle
grate
