5.3 Mounting Bracket and Tools

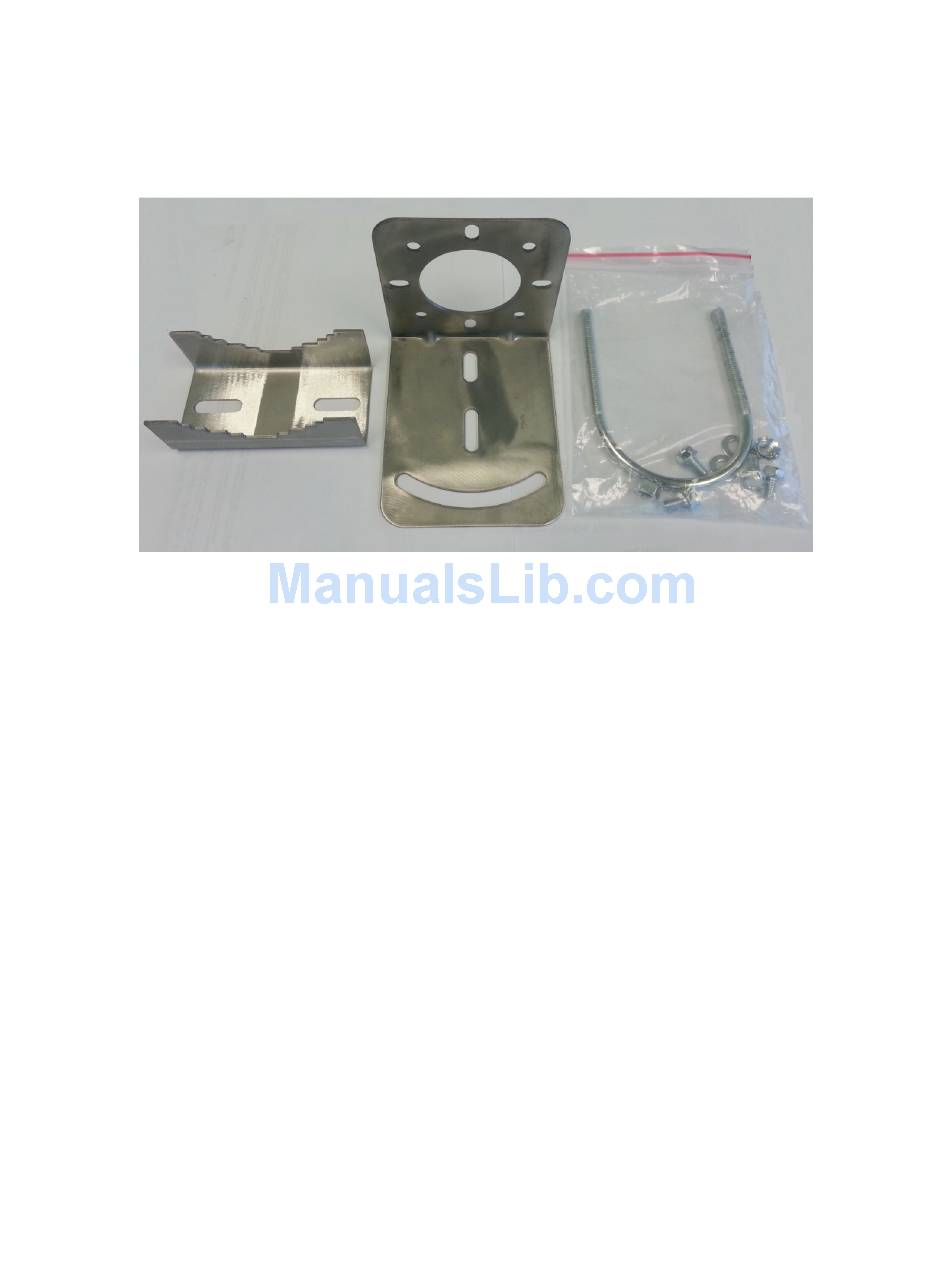

The following figure shows all components of the mounting kit.
The installation steps will be shown in the next section.
Tools necessary for tightening bolts and nuts are:
10mm wrench for bolts to fasten the L-bracket to the radio enclosure
•
13mm wrench for nuts to tighten U-bolt nuts.
•
5.4 Unit Mounting
The final installation step involves mounting your SkyWay radio to an outdoor mast.
Refer to the following diagram to perform the installation steps:
Fasten the L-bracket on the back of the radio enclosure. The hole patterns are
•
symmetric and you can rotate the enclosure by 90 degrees before installing the L-
bracket for establishing the radio link with horizontal polarization.
Using the step bracket and U-bolt, fasten the L-bracket to the mast.
•
