Rack Mounting
The ADC1 USB is part of Benchmark's ½-wide
System1™ product family. Each is one rack
unit high and is exactly ½ the width of a
standard 19" rack panel.
System1™ products have rack-mount holes
that are machined to conform to standard
rack-mount dimensions. Two ½-wide
System1™ units may be joined together to
form a single rigid 19" panel that can be
installed in any standard 19" rack.
Either ear of a ½-wide System1™ device can
be mounted directly to a standard 19" rack.
A Rack Mount Coupler connects the other ear
to a ½-wide Blank Rack Panel or another ½-
width System1™ product
Tip: Use the rack-mount screws supplied with
the DAC1 USB (or screws with plastic
washers) to avoid scratching the surface of
the faceplate.
The Rack Mount Coupler and Blank Rack
Panel are available from Benchmark.
Call us, visit our website:
http://www.benchmarkmedia.com
your dealer to purchase these accessories.
ADC1 USB Instruction Manual
The front panels on
or contact

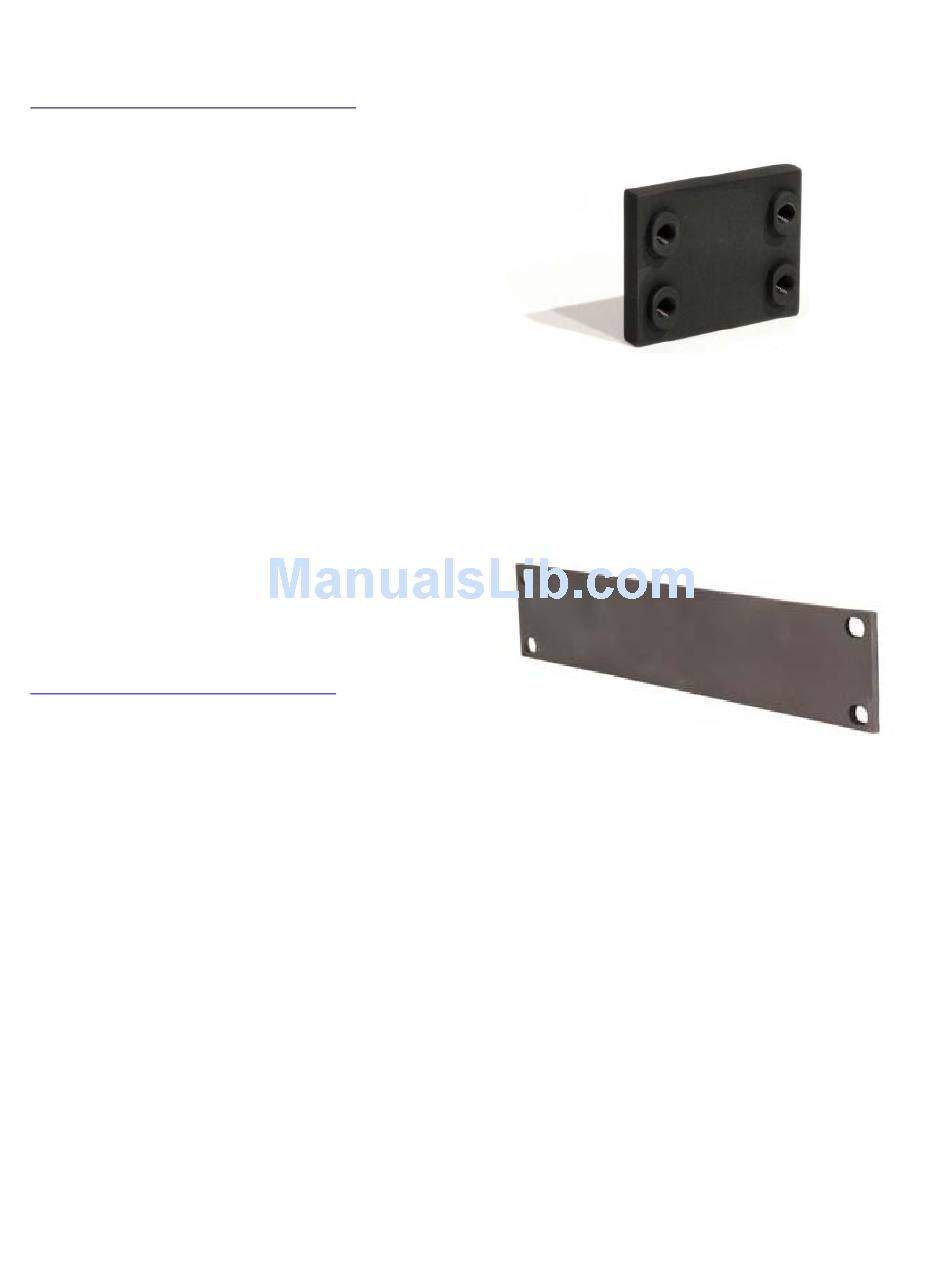

Rack Mount Coupler
The Rack Mount Coupler is a machined
aluminum junction block that joins any two
½-wide System1™ devices for rack mounting.
It is also used to join a Blank Rack Panel to
a single ½-wide System1™ device.
Blank Rack Panel
The Blank Rack Panel is a ½-wide 1-RU
aluminum panel for mounting a single ½-wide
System1™ device in a standard 19" rack.
Installation requires one Rack Mount Coupler.
