Performance
Frequency Response

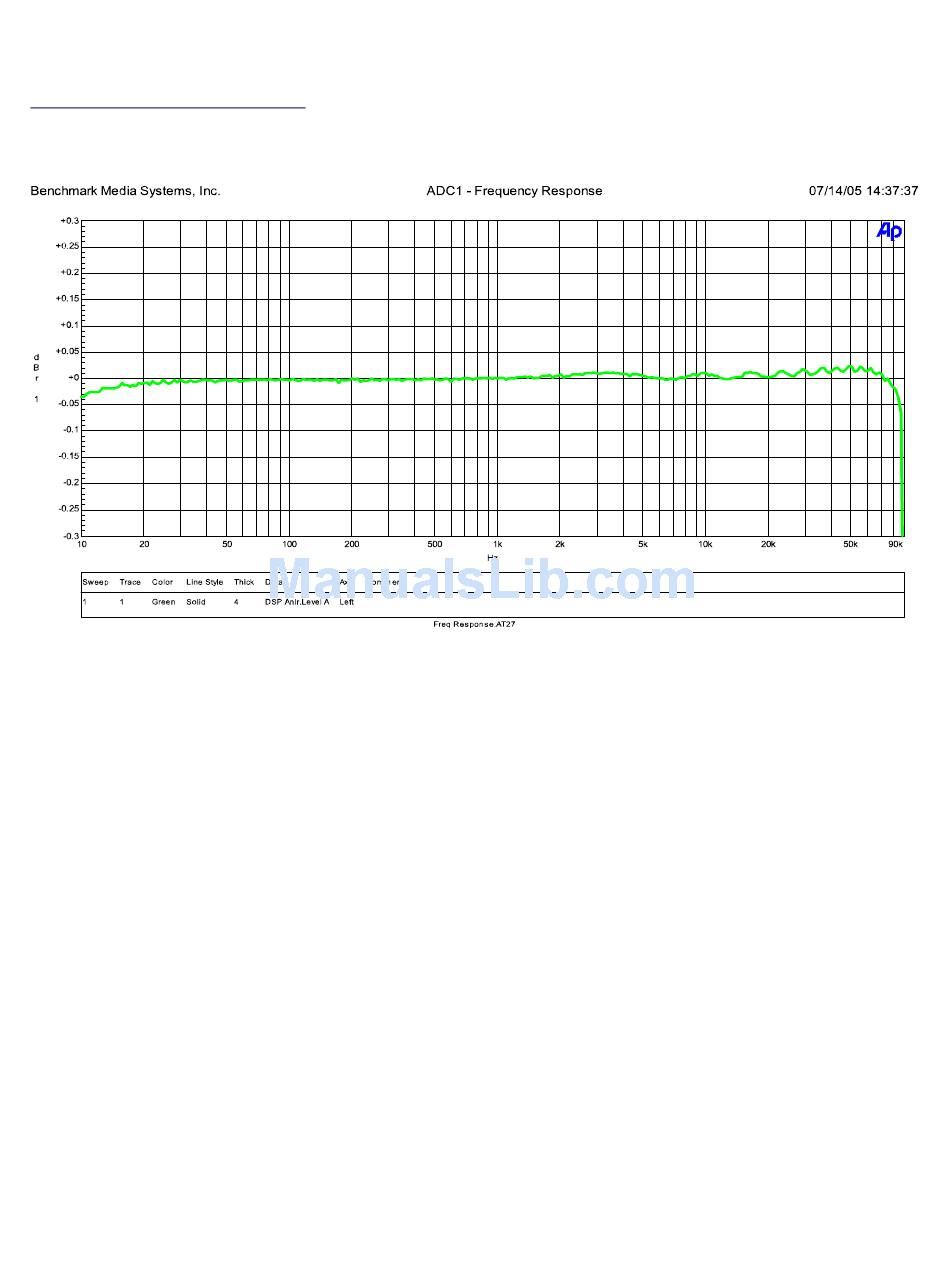

The above graphs show the frequency response of the ADC1 USB when it is operating at a 192-kHz
sample rate. Note that the amplitude response is down by less than 0.05 dB at 10 Hz and 80 kHz.
The bass response extends well below the 10-Hz limitation of the measurement equipment, and
the high-frequency analog response extends well above the 96 kHz bandwidth of 192 kHz digital
audio.
ADC1 USB Instruction Manual
Page 15
