Figure 16: Indoor Compressor Section Line Voltage Field Wiring
Unit Power Supply
(see electrical table for wire
and breaker size)
Figure 17: Outdoor Compressor Section Line Voltage Field Wiring
208-230 Volt Operation
Verify transformer tap with air handler wiring diagram to
insure that the transformer tap is set to the correct voltage,
208V or 230V.

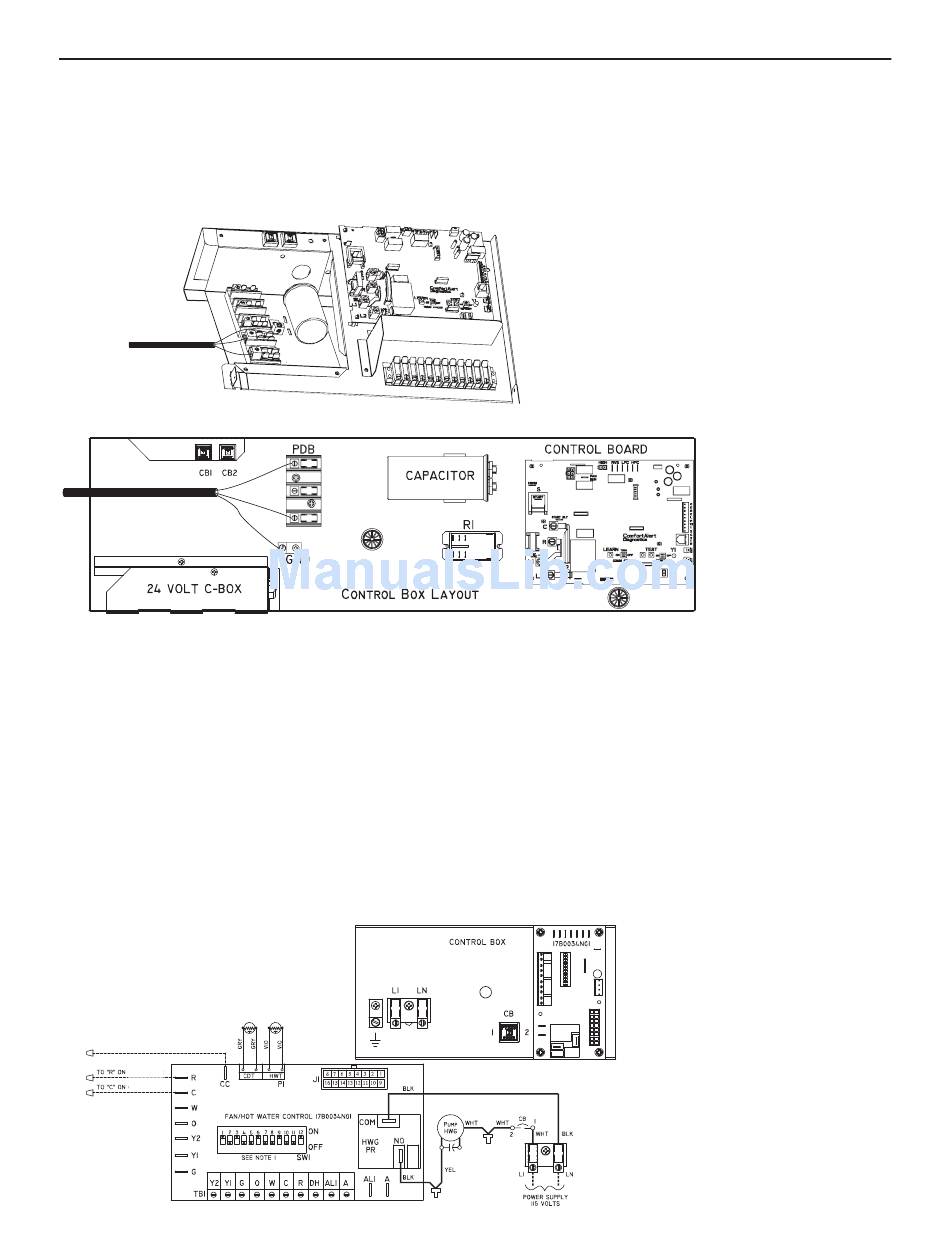

Figure 18: HWG Module Wiring - For Use with Outdoor Compressor Section
TO RELAY R1 IN COMPRESSOR SECTION
CONDENSER
CONDENSER

ELECTRICAL - HWG WIRING

HWG Module Wiring - For "Outdoor" Compressor
Section
The HWG module should be wired to a 115 vac power
supply as shown in Figure 18. A safety disconnect should
be installed at the HWG module as required by code to allow
servicing of the module. DO NOT energize the pump until all
HWG piping is completed and air is purged from the water
piping to avoid running the pump "dry".
HWG Module
R e s i d e n t i a l S p l i t
R e v. : 1 3 M a r c h , 2 0 1 5
